GATORVAC - Weed Eater Blower, Electric GATORVAC ASSEMBLY Parts Diagram

Blower, Electric

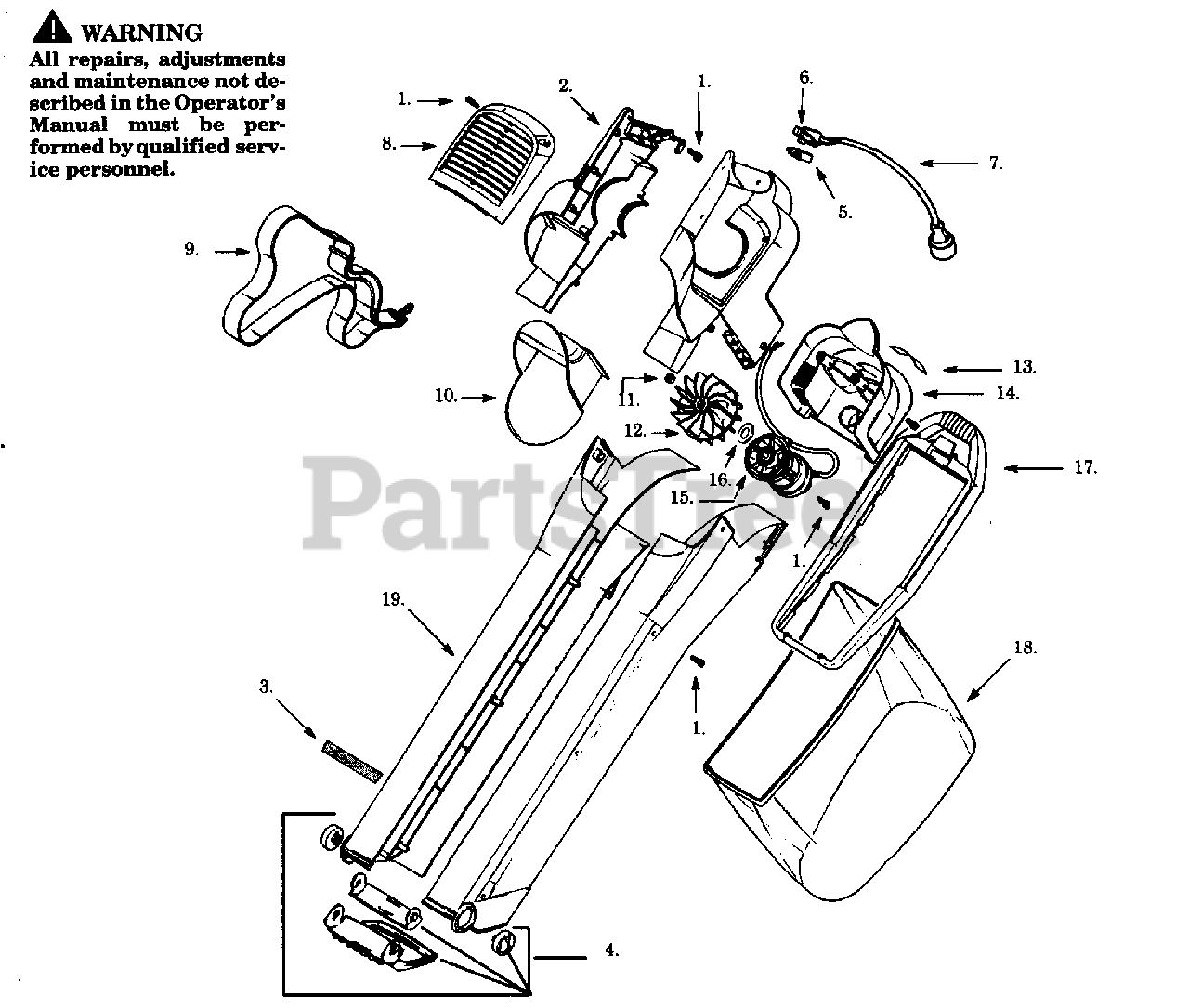

GATORVAC ASSEMBLY Parts Diagram

  • Title

1

Poulan 514667200

Screw

$

$

Not available

2

Poulan 514916604

Motor Hsg.

$

$

Not available

3

Poulan 514926900

Decal (Not a serviceable part)

$

$

Not available

4

Poulan 514927100

Kit-Wear Plate (Incl. Wear Plate, Valve & Control Valve Knobs)

$

$

Not available

5

Poulan 512730275

Switch Actuator

$

$

Not available

6

Poulan 513824200

Switch

$

$

Not available

7

Poulan 530401326

Power Cable

$

$

Not available

8

Poulan 510660267

Grill

$

$

Not available

9

Poulan 530037250

Strap

$

$

Not available

10

Poulan 513829400

Handle

$

$

Not available

11

Poulan 514910600

Nut

$

$

Not available

12

Poulan 511774067

Impeller

$

$

Not available

13

Poulan 513827101

Warning Label

$

$

Not available

14

Poulan 510655177

Motor Cover

$

$

Not available

15

Poulan 515003000

Motor

$

$

Not available

16

Poulan 514916400

Washer

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 510655267

Bag Frame

$

$

Not available

18

Poulan 510657300

Debris Bag
(Superseded to 510670000)

$

$

Not available

19

Poulan 514916504

Tubes

$

$

Not available

Poulan 511787501

Operator Manual

Note: Not Shown.

$

$

Not available
