GB 150 - Paramount Blower BLOWER ASSEMBLY Parts Diagram

Blower

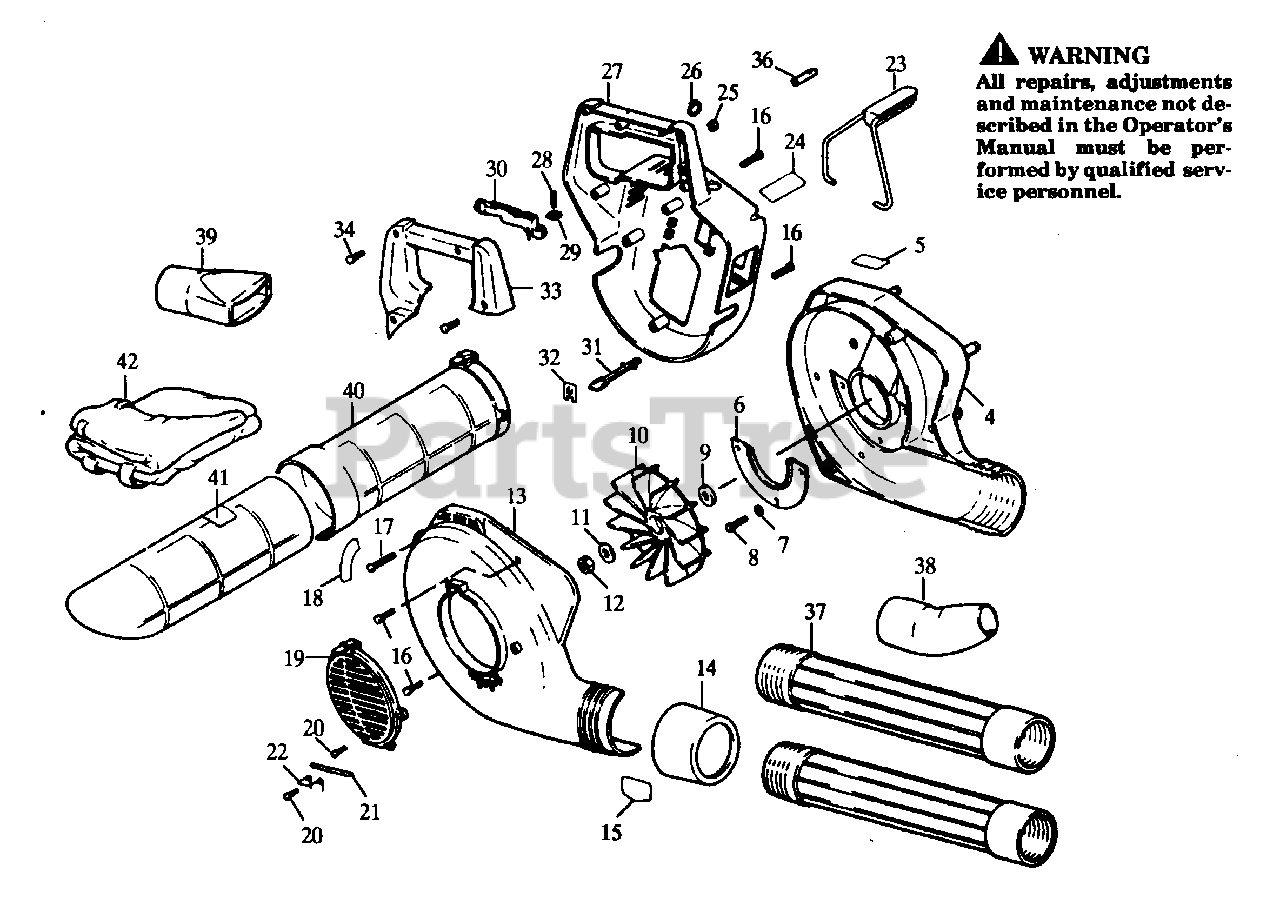

BLOWER ASSEMBLY Parts Diagram

  • Title

4

Poulan 534727102

Main Support Housing

$

$

Not available

5

Poulan 534744500

Starting Instructions Decal

$

$

Not available

6

Poulan 534727000

Engine Mount Plate

$

$

Not available

7

Poulan 534713000

Lockwasher

$1.49

$

Usually ships in 3-10 days

0

8

Poulan 534744300

Screw

$

$

Not available

9

Poulan 534136100

Washer

$

$

Not available

10

Poulan 534726700

Impeller Ass'y.

$

$

Not available

11

Poulan 534120387

Washer

$

$

Not available

12

Poulan 534754500

Nut

$

$

Not available

13

Poulan 534727202

Inlet Cover Housing

$

$

Not available

14

Poulan 534408405

Sleeve

$

$

Not available

15

Poulan 534744700

Exhaust Label (Model GB150)

$

$

Not available

15

Poulan 534727300

Exhaust Label (Model GB350)

$

$

Not available

16

Poulan 534222401

Screw

$

$

Not available

17

Poulan 534174506

Screw

$

$

Not available

18

Poulan 534755500

Caution Label (Not a serviceable part)

$

$

Not available

19

Poulan 534543305

Inlet Cover

$

$

Not available

20

Poulan 534193700

Screw

$

$

Not available

21

Poulan 534327201

Hinge Pin

$4.99

$

In Stock, only 1 left!

0

22

Poulan 534475900

Spring Return

$3.99

$

In Stock, only 1 left!

0

23

Poulan 534741000

Assist Handle Ass'y.

$

$

Not available

24

Poulan 534727800

Nameplate Label

$

$

Not available

25

Poulan 534371301

Nut

$

$

Not available

26

Poulan 534744400

Split Ring

$

$

Not available

27

Poulan 534726602

Engine Cover Housing

$

$

Not available

28

Poulan 534729500

Screw

$

$

Not available

29

Poulan 534728000

Nut

$

$

Not available

30

Poulan 534755800

Throttle Trigger Ass'y.

$

$

Not available

31

Poulan 534727905

Tickler Lever

$

$

Not available

32

Poulan 534741400

Nut

$

$

Not available

33

Poulan 534733002

Handle Cover Housing

$10.99

$

Usually ships in 3-10 days

0

34

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 534756900

Eye Nut

$

$

Not available

37

Poulan 534352705

Outlet Tube

$

$

Not available

38

Poulan 534373405

Concentrator Nozzle

$

$

Not available

39

Poulan 534339405

Nozzle Diffuser (Model GB350)

$

$

Not available

40

Poulan 534528705

Vacuum Tube (Model GB350)

$

$

Not available

41

Poulan 534506400

Nameplate Label (Model GB350) (Not a serviceable part)

$

$

Not available

42

Poulan 534339900

Vacuum Bag (Model GB350)

$

$

Not available

Poulan 534885560

Operator's Manual

$

$

Not available
