GB 25 (UT-26112) - Green Machine Blower Air Filter, Carburetor & Fuel Tank Parts Diagram

Blower

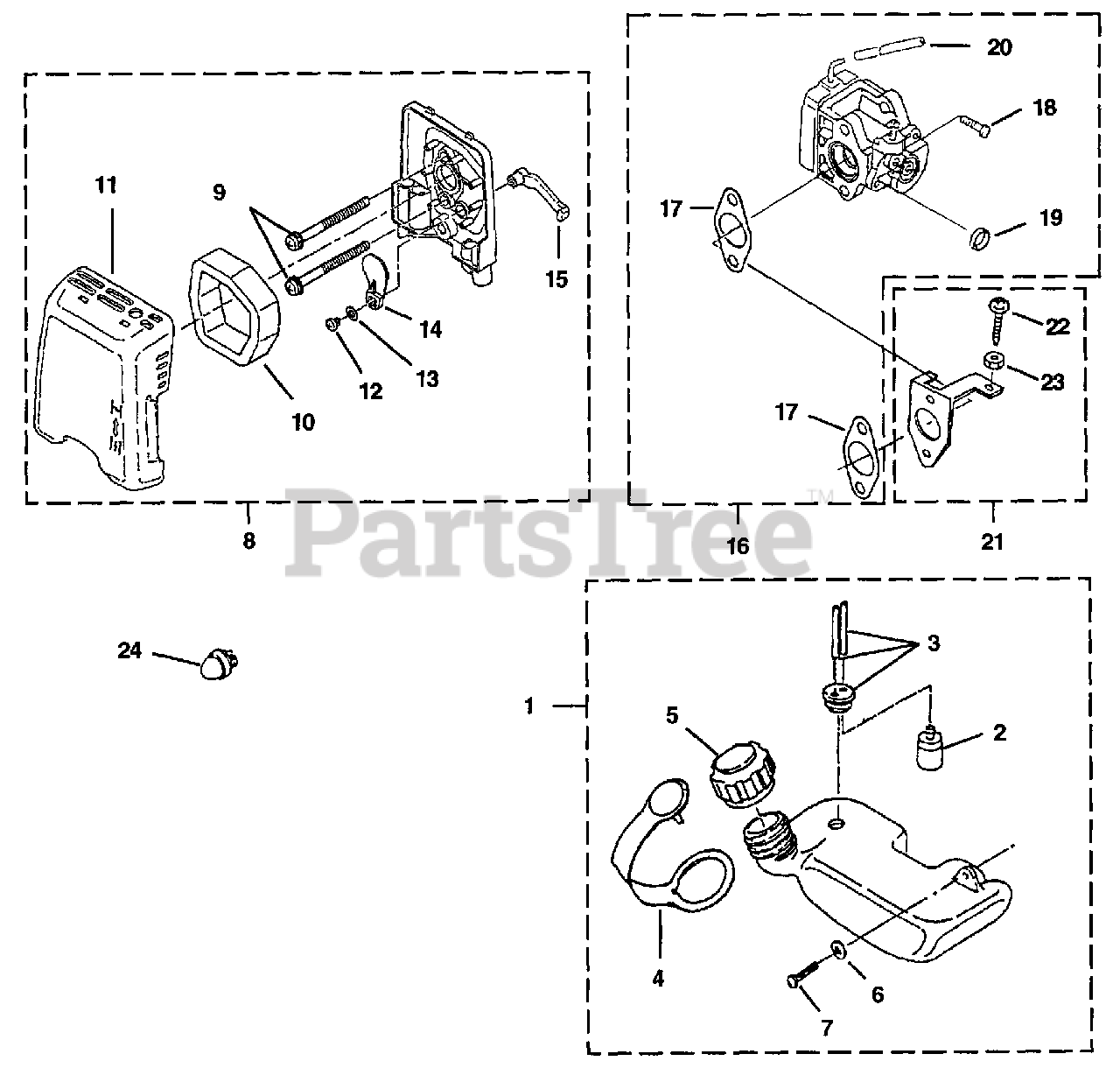

Air Filter, Carburetor & Fuel Tank Parts Diagram

  • Title

1

Homelite UP00502

FUEL TANK ASSEMBLY

$

$

Not available

2

Homelite PS00520

FILTER-Fuel

$

$

Currently unavailable

3

Homelite PS00643

TUBE

$35.99

$

Usually ships in 3-7 days

0

4

Homelite PS00522

CAP-Retainer
(Superseded to UP02946)

$

$

Not available

5

Homelite UP02946

CAP-Fuel

$

$

Not available

6

Homelite PS00644

WASHER (M5)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite PS00641

SCREW-Tapping (M5 x 20)

Note: (Torque Specs: 12-19 In/Lbs, 1.4-2.1 Nm)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite UP00515

AIR FILTER ASSEMBLY

$

$

Not available

9

Homelite PS00703

SCREW (M5 x 62)

Note: (Torque Specs: 17-27 In/Lbs, 1.9-3.1 Nm)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite UP02947

FILTER-Air

$

$

Not available

11

Homelite PS00705

COVER-Air Filter

$

$

Currently unavailable

12

Homelite PS01663

SCREW, Tapping (M4 x 8)

$

$

Currently unavailable

13

Homelite PS01363

WASHER

$

$

Not available

14

Homelite PS01362

CHOKE PLATE

$

$

Currently unavailable

15

Homelite PS01361

CHOKE LEVER

$

$

Not available

16

Homelite UP00514

CARBURETOR ASSEMBLY

$

$

Not available

17

Homelite PS00699

GASKET-Carburetor

$

$

Not available

18

Homelite PS00700

SCREW-Collar Throttle

$

$

Not available

19

Homelite PS00871

HOLDER-Throttle Cable

$

$

Not available

20

Homelite PS00702

LINE-Fuel

$

$

Not available

21

Homelite UP00513

CABLE BRACKET ASSEMBLY

$

$

Not available

22

Homelite PS00696

SCREW-Cone Point

Note: (Torque Specs: 9-13 In/Lbs, 1.0-1.5 Nm)

$

$

Not available

23

Homelite PS00698

NUT-Cable Adjust

$

$

Not available

24

Homelite PS00650

PRIMER BULB
(Superseded to UP04033)

$

$

Not available
