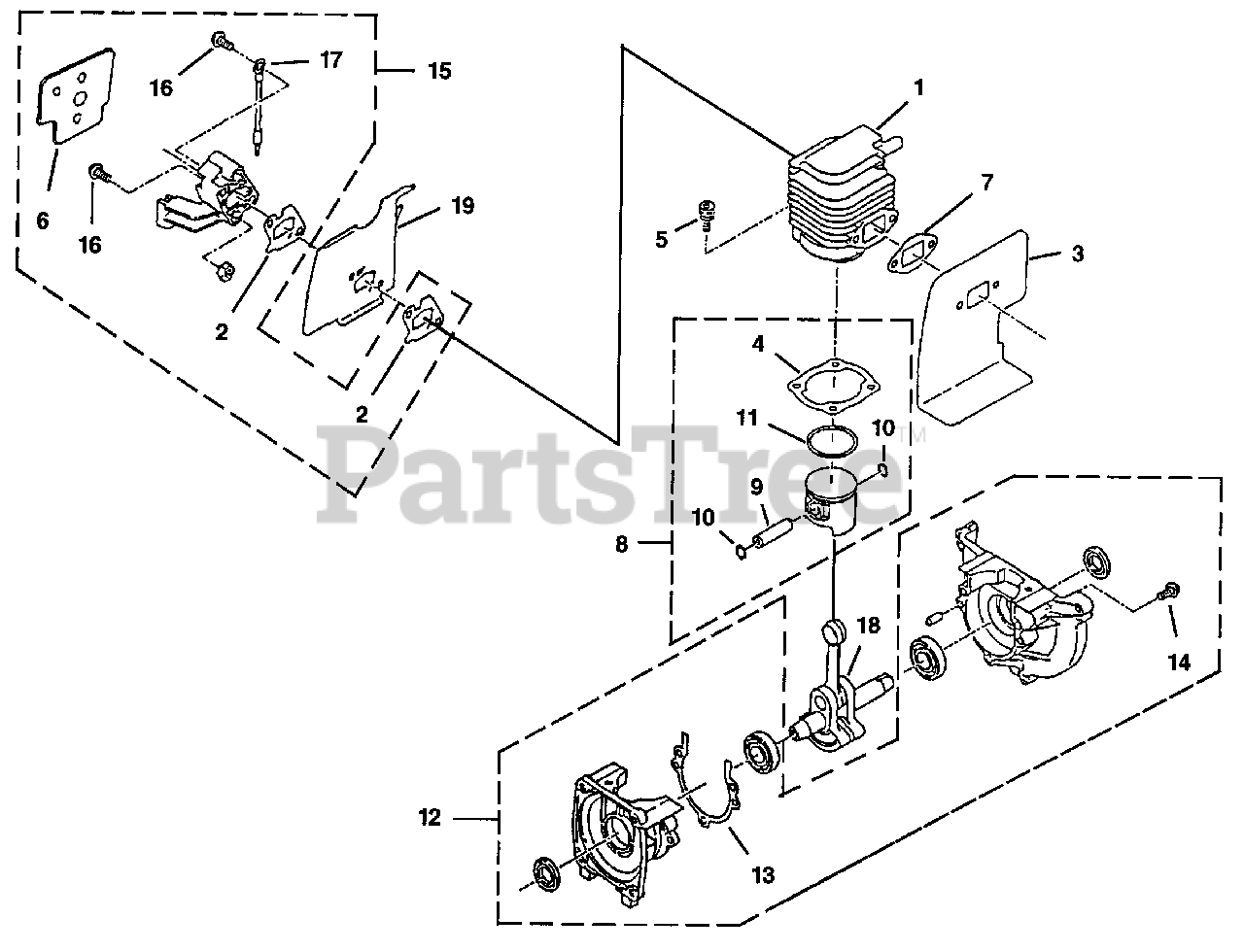

GB 25 (UT-26112) - Green Machine Blower Engine Internals Parts Diagram

Blower

Engine Internals Parts Diagram

  • Title

1

Homelite UP00507

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

3

Homelite PS00695

INSULATOR-Muffler

$5.49

$

Usually ships in 3-7 days

0

4

Homelite PS00574

GASKET-Cylinder

$

$

Currently unavailable

5

Homelite PS00840

SCREW-Socket HD (M5 x 20 W SW)

Note: (Torque Specs: 53-69 In/Lbs, 6.0-7.8 Nm)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite PS00673

INSULATOR-Gasket

$2.99

$

Usually ships in 3-7 days

0

7

Homelite PS00674

GASKET-Muffler

$

$

Not available

8

Homelite UP00508

PISTON ASSEMBLY

$

$

Not available

9

Homelite PS00675

PIN-Piston

$

$

Not available

10

Homelite PS00843

RING-Retaining

$

$

Not available

11

Homelite PS00677

RING-Piston

$

$

Not available

4

Homelite PS00574

GASKET-Cylinder

$

$

Currently unavailable

12

Homelite UP00472

CRANKCASE ASSEMBLY

$

$

Currently unavailable

13

Homelite PS00823

GASKET-Crankcase

$

$

Not available

14

Homelite PS00824

SCREW (M5 x 25)

Note: (Torque Specs: 35-45 In/Lbs, 4.0-5.1 Nm)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite UP00510

HEAT DAM ASSEMBLY

$

$

Not available

2

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

6

Homelite PS00673

INSULATOR-Carburetor

$2.99

$

Usually ships in 3-7 days

0

16

Homelite PS00852

SCREW-Socket Hd (M5 x 25)

Note: (Torque Specs: 35-45 In/Lbs, 4.0-5.1 Nm; Loctite Required Red 262)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite PS00608

WIRE-Ground

$

$

Currently unavailable

18

Homelite PS00680

CRANKSHAFT COMPLETE

$

$

Not available

19

Homelite PS00685

INSULATOR-Carburetor

$15.99

$

Usually ships in 3-7 days

0
