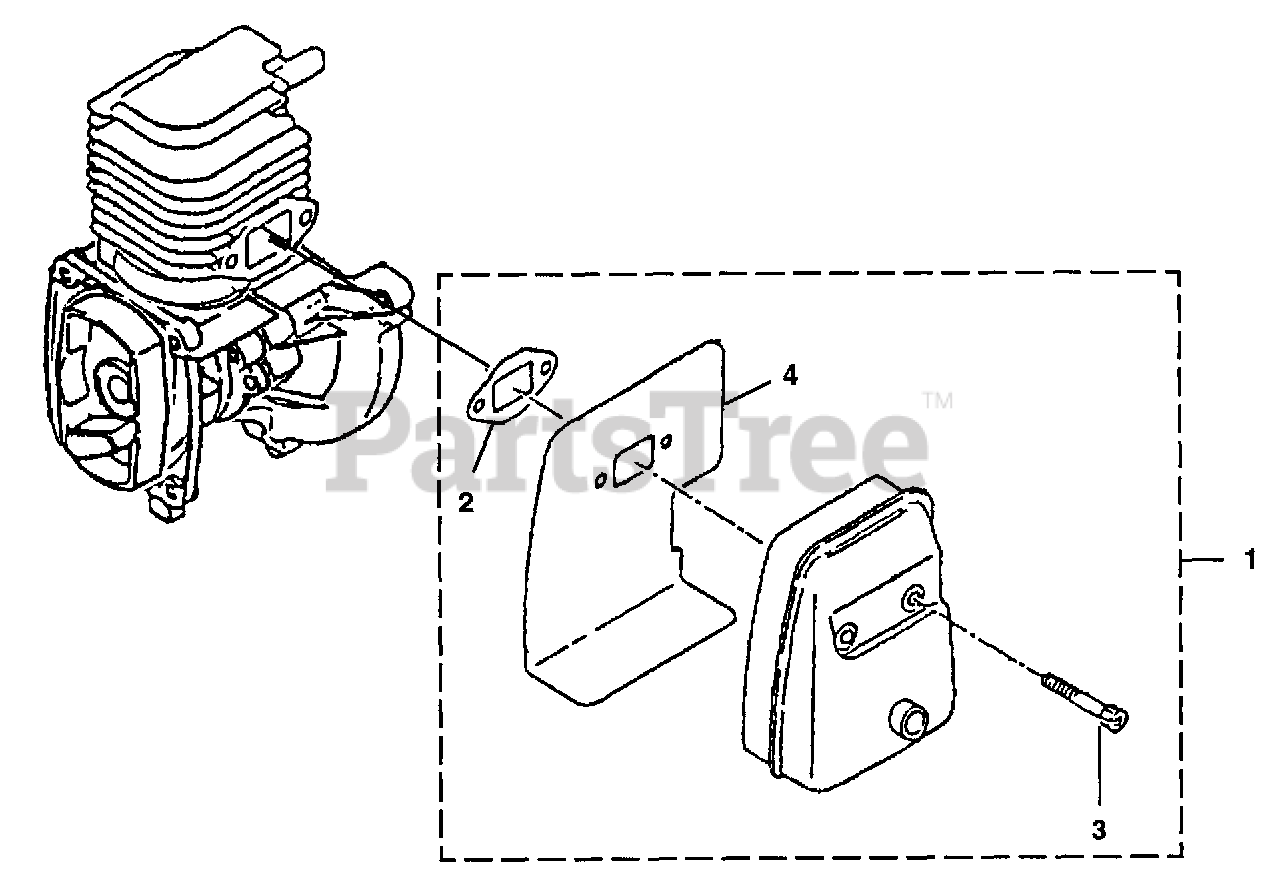

GB 25 (UT-26112) - Green Machine Blower Exhaust System Parts Diagram

Blower

Exhaust System Parts Diagram

  • Title

1

Homelite UP00512

MUFFLER ASSEMBLY

$

$

Not available

2

Homelite PS00674

GASKET-Muffler

$

$

Not available

3

Homelite PS00694

SCREW-Socket Hd. (M5 x 55)

Note: (Torque Specs: 60-70 In/Lbs, 6.8-7.9 Nm; Loctite Required Red 262)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite PS00695

INSULATOR-Muffler

$5.49

$

Usually ships in 3-7 days

0
