GB 50 (UT-26113) - Green Machine Blower Exhaust System Parts Diagram

Blower

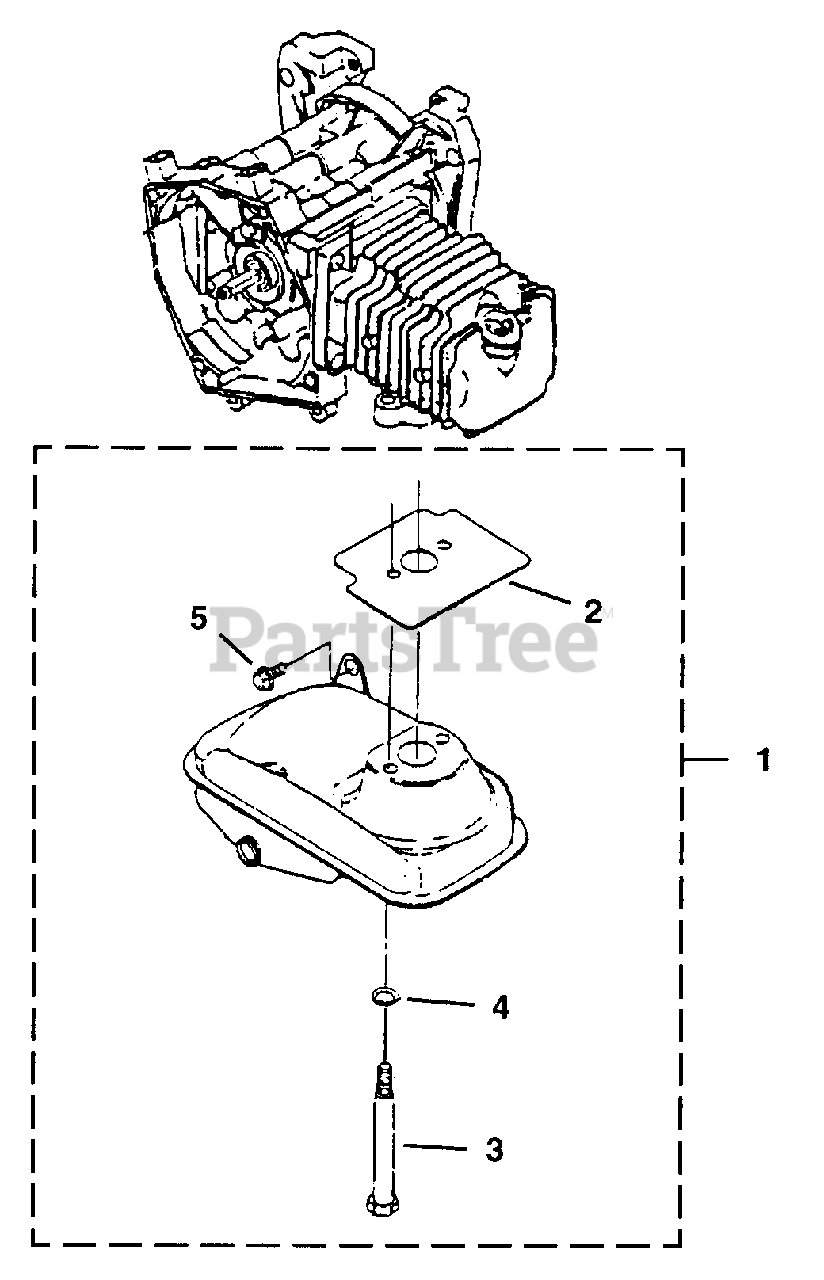

Exhaust System Parts Diagram

  • Title

1

Homelite UP00534

MUFFLER ASSEMBLY

$

$

Not available

2

Homelite PS00746

GASKET-Muffler

$

$

Not available

3

Homelite PS00771

BOLT-Muffler. (M6 x 13)

Note: Torque Specs: 88-104 Ft.Lbs., 9.9-11.8 Nm

$

$

Not available

4

Homelite PS00772

WASHER (M6)

$

$

Not available

5

Homelite PS00773

BOLT ASSEMBLY (M6 x 16 W SW)

Note: Torque Specs: 53-69 Ft.Lbs., 6.0-7.8 Nm

$

$

Not available
