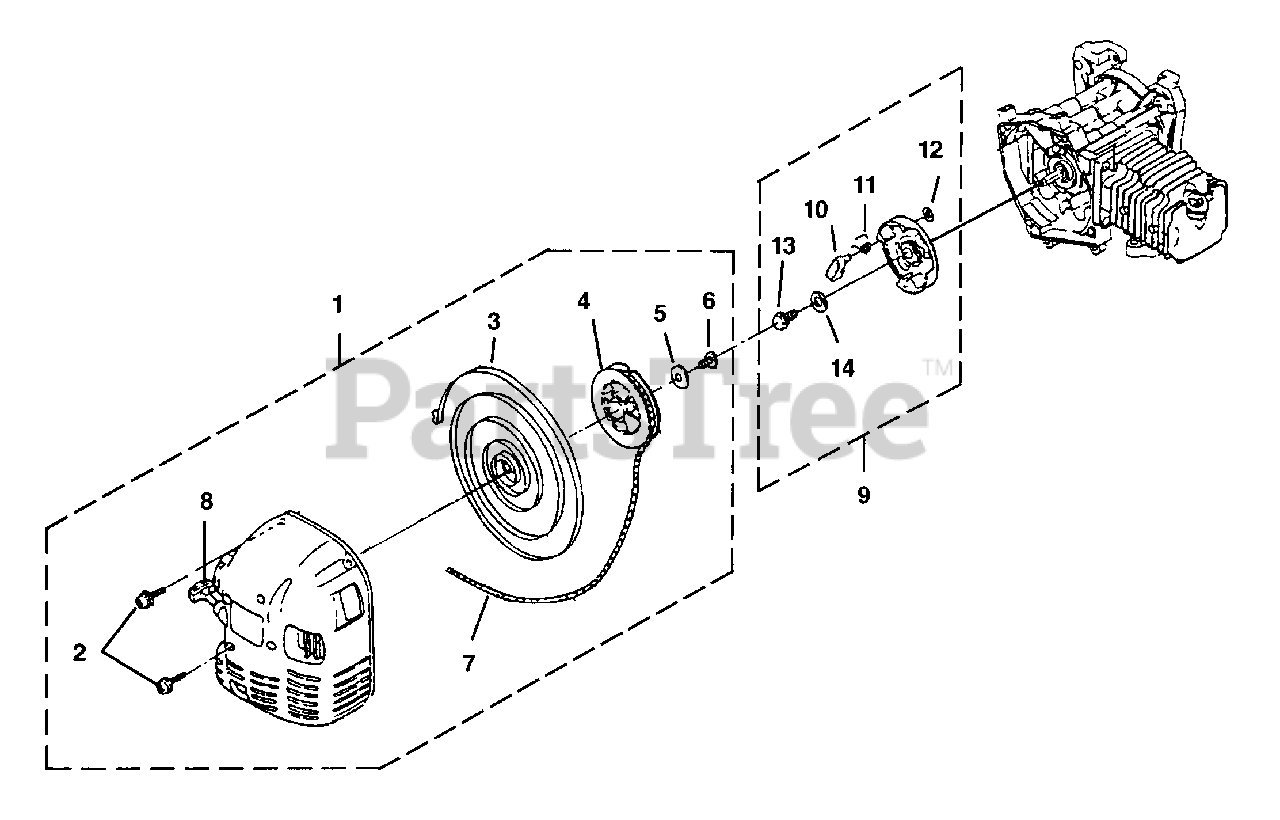

GB 50 (UT-26115) - Green Machine Blower Starter Parts Diagram

Blower

Starter Parts Diagram

  • Title

1

Homelite UP00518

STARTER COMPLETE

$

$

Not available

2

Homelite PS00706

SCREW-Socket Hd (M5 x 20 W SW)

Note: Torque Specs 8 - 12 In/Lbs, 0.9 - 1.4 Nm

$

$

Not available

3

Homelite PS00707

SPRING

$

$

Not available

4

Homelite PS00708

PULLEY

$

$

Not available

5

Homelite PS00709

WASHER

$

$

Not available

6

Homelite PS00710

SCREW (M5 x 12)

Note: Torque Specs 8 - 12 In/Lbs, 0.9 - 1.4 Nm

$

$

Not available

7

Homelite PS00711

ROPE-Starter

$

$

Not available

8

Homelite PS00801

GRIP

$

$

Not available

9

Homelite UP00519

STARTER CUP ASSEMBLY

$

$

Not available

10

Homelite PS00712

RATCHET

$

$

Not available

11

Homelite PS00713

SPRING-Return

$

$

Currently unavailable

12

Homelite PS00479

E-CLIP

$4.99

$

Usually ships in 3-7 days

0

13

Homelite PS00817

BOLT ASSEMBLY (M6 x 16)

Note: Torque Specs 8 - 12 In/Lbs, 0.9 - 1.4 Nm

$

$

Not available

14

Homelite PS00716

WASHERS (M5)

$

$

Not available
