GBI 22 V - Weed Eater Blower Blower Assembly Parts Diagram

Blower

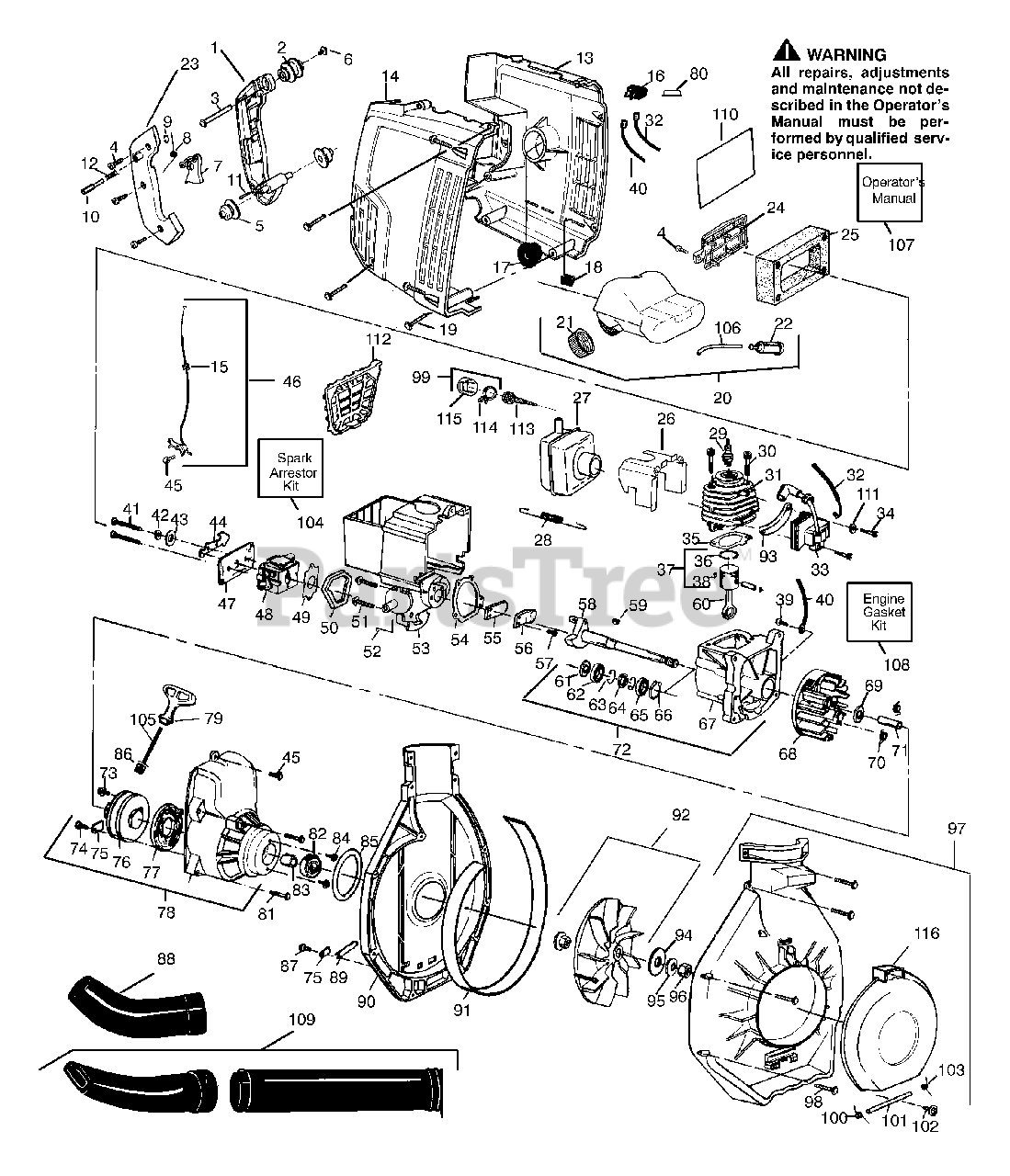

Blower Assembly Parts Diagram

  • Title

1

Poulan 530094712

Handle
(Superseded to 530069863)

$

$

Not available

2

Poulan 530026994

Front Isolator

$

$

Not available

3

Poulan 530029111

Spacer

$

$

Not available

4

Poulan 530015635

Screw

$6.99

$

In Stock, only 4 left!

0

5

Poulan 530029130

Rear Isolator

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015813

Screw

$

$

Not available

7

Poulan 530029072

Trigger

$

$

Not available

8

Poulan 530027597

Spring

$3.49

$

In Stock, only 4 left!

0

9

Poulan 530015702

"C" Clip

$

$

Not available

10

Poulan 530029117

Throttle Lock Button

$

$

Not available

11

Poulan 530015840

Pin

$

$

Not available

12

Poulan 530024772

Spring

$

$

Not available

13

Poulan 530037503

Shroud-Left

$

$

Not available

14

Poulan 530037143

Shroud-Right

$

$

Not available

15

Poulan 530019168

Grommet

$

$

Not available

16

Poulan 530069572

Switch

$9.49

$

In Stock, only 2 left!

0

17

Poulan 530029129

Isolator

$

$

Not available

18

Poulan 530029295

Isolator

$

$

Not available

19

Poulan 530015814

Screw

$3.49

$

In Stock, only 4 left!

0

20

Poulan 530014162

Fuel Tank Ass'y.

Note: (Incl. #21, 22 & 106)

$

$

Not available

21

Poulan 530014347

Fuel Cap

Note: (Incl. O'Ring)

$9.49

$

In Stock, Qty 6

0

22

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

23

Poulan 530014160

Handle Cover Ass'y.

Note: (Incl. 9, 10 & 12)

$

$

Not available

24

Poulan 530029274

Cover

$

$

Not available

25

Poulan 530029112

Air Filter

$

$

Not available

26

Poulan 530029404

Air Baffle

$

$

Not available

27

Poulan 530069293

Muffler

$

$

Not available

28

Poulan 530029116

Spring

$

$

Not available

29

Poulan 952030078

Spark Plug
(Superseded to 952030201)

$3.99

$

In Stock, Qty 20+

0

30

Poulan 530001624

Screw

$

$

Not available

31

Cylinder

$

$

Not available

31

Poulan 530012244

22-22V
(Superseded to 530069627)

$

$

Not available

31

Poulan 530069628

30V - Type 1
(Superseded to 530071581)

$

$

Not available

31

Poulan 530069626

30 V - Type 2 & 3

$

$

Not available

32

Poulan 530029425

Lead Wire

$

$

Not available

33

Poulan 530039137

Ignition Module

$51.99

$

In Stock, only 1 left!

0

34

Screw

$

$

Not available

34

Poulan 530015776

22-22V

$

$

Not available

34

Poulan 530015816

30V

$

$

Not available

35

Poulan 530019178

Gasket
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

36

Piston Ring

$

$

Not available

36

Poulan 530026413

22-22V

$

$

Not available

36

Poulan 530025875

30V

$

$

Not available

37

Piston Kit

Note: (Incl. #36, 38, & Pin)

$

$

Not available

37

Poulan 530069274

22-22V

$

$

Not available

37

Poulan 530069277

30V - Type 1

$

$

Not available

37

Poulan 530069349

30V - Type 2 & 3

$38.99

$

In Stock, only 1 left!

0

38

Poulan 530015162

Retainer

$3.49

$

In Stock, only 2 left!

0

39

Poulan 530015306

Screw

$

$

Not available

40

Poulan 530029426

Ground Wire

$

$

Not available

41

Poulan 530015849

Screw

$3.49

$

Usually ships in 3-10 days

0

42

Poulan 530015254

Wave Washer

$

$

Not available

43

Poulan 530015852

Spacer

$

$

Not available

44

Poulan 530029114

Choke Shutter

$

$

Not available

45

Poulan 530015775

Screw

$3.49

$

In Stock, only 2 left!

0

46

Poulan 530037492

Cable Assembly

Note: (Incl. #45)

$

$

Not available

47

Poulan 530029115

Plate

$

$

Not available

48

Carburetor

$

$

Not available

48

Poulan 530035263

Type 1 & 2 (WT 141)
(Superseded to 545081825)

$

$

Not available

48

Poulan 530069644

Type 3 (WT 141A w/ Limiter Cap)
(Superseded to 545081825)

$

$

Not available

49

Poulan 530019164

Gasket

$4.99

$

In Stock, only 2 left!

0

50

Poulan 530019165

Seal

$3.49

$

In Stock, only 1 left!

0

51

Poulan 530015771

Screw

$3.49

$

In Stock, only 4 left!

0

52

Poulan 530029113

Ground Wire

$

$

Not available

53

Poulan 530047696

Reed Block

$

$

Not available

54

Poulan 530019166

Gasket

$

$

Not available

55

Poulan 530027593

Reed Valve

$5.99

$

In Stock, only 2 left!

0

56

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

57

Poulan 530016064

Screw

$3.49

$

In Stock, Qty 20+

0

58

Poulan 530014033

Crankshaft

Note: See Service Ref. 3

$

$

Not available

59

Poulan 530015126

Key

$

$

Not available

60

Piston Rod

$

$

Not available

60

Poulan 530014005

22-22V

$

$

Not available

60

Poulan 530010960

30V

$

$

Not available

61

Spacer

Note: See Service Ref. 3; Refer to the service reference indicated for more information. (Located in Service Literature "GBI 22/22V/30V Gas Blower Service Reference")

$

$

Not available

62

Poulan 530032103

Inner Bearing

$

$

Not available

63

Poulan 530015787

Ring

$

$

Not available

64

Poulan 530019158

Crankshaft Seal

$

$

Not available

65

Poulan 530032102

Outer Bearing

$

$

Not available

66

Poulan 530015789

Retaining Ring

$

$

Not available

67

Poulan 530014016

Crankcase

$

$

Not available

68

Poulan 530039189

Flywheel

$

$

Not available

69

Poulan 530347987

Washer
(Superseded to 530016030)

$4.99

$

Usually ships in 3-10 days

0

70

Poulan 530023817

Spring

$3.49

$

Usually ships in 3-10 days

0

71

Spacer

Note: See Service Ref. 4; Refer to the service reference indicated for more information. (Located in Service Literature "GBI 22/22V/30V Gas Blower Service Reference"); New part number for this IPL

$

$

Not available

72

Poulan 530014156

Crankcase/Crankshaft Assy.

$

$

Not available

73

Poulan 530016080

Screw

$3.49

$

In Stock, only 3 left!

0

74

Poulan 530015496

Screw

$

$

Not available

75

Poulan 530027523

Retainer

$4.99

$

In Stock, only 2 left!

0

76

Starter Pulley

Note: (Incl. 73); See Service Ref. 2; Refer to the service reference indicated for more information. (Located in Service Literature "GBI 22/22V/30V Gas Blower Service Reference")

$

$

Not available

77

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

78

Poulan 530069714

Fan Housing Kit

Note: (Incl. 73-79, 86, & 105); See Service Ref. 4

$

$

Not available

79

Poulan 530027569

Starter Handle

$4.99

$

Usually ships in 3-10 days

0

80

Poulan 530037071

Protector Cap

$

$

Not available

81

Poulan 530015769

Screw

$

$

Not available

82

Bearing

Note: See Service Ref. 4; Refer to the service reference indicated for more information. (Located in Service Literature "GBI 22/22V/30V Gas Blower Service Reference")

$

$

Not available

83

Spacer

Note: See Service Ref. 4; Refer to the service reference indicated for more information. (Located in Service Literature "GBI 22/22V/30V Gas Blower Service Reference")

$

$

Not available

84

Screw

Note: See Service Ref. 4; Refer to the service reference indicated for more information. (Located in Service Literature "GBI 22/22V/30V Gas Blower Service Reference")

$

$

Not available

85

Poulan 530019167

"O" Ring

$

$

Not available

86

Poulan 530029182

Eyelet

$

$

Not available

87

Poulan 530015815

Screw

$0.99

$

In Stock, only 2 left!

0

88

Poulan 530094968

Blower Nozzle Concentrator
(Superseded to 530069961)

$

$

Not available

89

Poulan 530029119

Roll Pin

$

$

Not available

90

Poulan 530094710

Blower Housing (Upper)

$

$

Not available

91

Poulan 530029173

Band

$

$

Not available

92

Poulan 530014157

Impeller
(Superseded to 530047077)

Note: (Inc. Hub)

$

$

Not available

93

Poulan 530027525

Spacer

$1.49

$

In Stock, only 1 left!

0

94

Poulan 530015818

Washer

$

$

Not available

95

Poulan 530015441

Washer

$

$

Not available

96

Poulan 530001733

Nut

$

$

Not available

97

Poulan 530047736

Blower Housing (Lower)

Note: (Incl. 99-103 & door)

$

$

Not available

98

Poulan 530015872

Screw
(Superseded to 530015814)

$3.49

$

In Stock, only 4 left!

0

99

Poulan 530014339

Deflector & Clamp Ass'y.

$

$

Not available

100

Poulan 530015667

Spring

$

$

Not available

101

Poulan 530015647

Pin

$1.49

$

In Stock, only 1 left!

0

102

Poulan 530015815

Screw

$0.99

$

In Stock, only 2 left!

0

103

Poulan 530015672

Spring

$

$

Not available

104

Spark Arrestor Kit

$

$

Not available

104

Poulan 530069285

T 1

$

$

Not available

104

Poulan 530069348

T 2 & 3

$

$

Not available

105

Poulan 530069232

Rope Kit

$5.99

$

In Stock, only 1 left!

0

106

Poulan 530069247

Line Kit

$2.49

$

In Stock, Qty 20+

0

107

Operator's Manual

$

$

Not available

107

Poulan 530083941

22

$

$

Not available

107

Poulan 530083772

22V/30V

$

$

Not available

108

Poulan 530069294

Gasket Kit

$

$

Not available

109

Poulan 530038508

Tube and Nozzle Ass'y

$

$

Not available

110

Decal Instruction

$

$

Not available

110

Poulan 530029329

Type 2

$

$

Not available

110

Poulan 530047443

Type 3

$

$

Not available

111

Washer

Note: See Service Ref. 1; Refer to the service reference indicated for more information. (Located in Service Literature "GBI 22/22V/30V Gas Blower Service Reference")

$

$

Not available

112

Poulan 530069304

Muffler Guard

$

$

Not available

113

Poulan 530029227

Spark Arrestor Screen

$

$

Not available

114

Poulan 530029228

Spark Arrestor Clamp

$

$

Not available

115

Poulan 530029988

Exhaust Deflector Ass'y.

$

$

Not available

116

Inlet Door

Note: See Service Ref. 5; Refer to the service reference indicated for more information. (Located in Service Literature "GBI 22/22V/30V Gas Blower Service Reference"); New part number for this IPL

$

$

Not available
