GBI 22 V - Weed Eater Blower Carburetor Assembly - WT-141 Parts Diagram

Blower

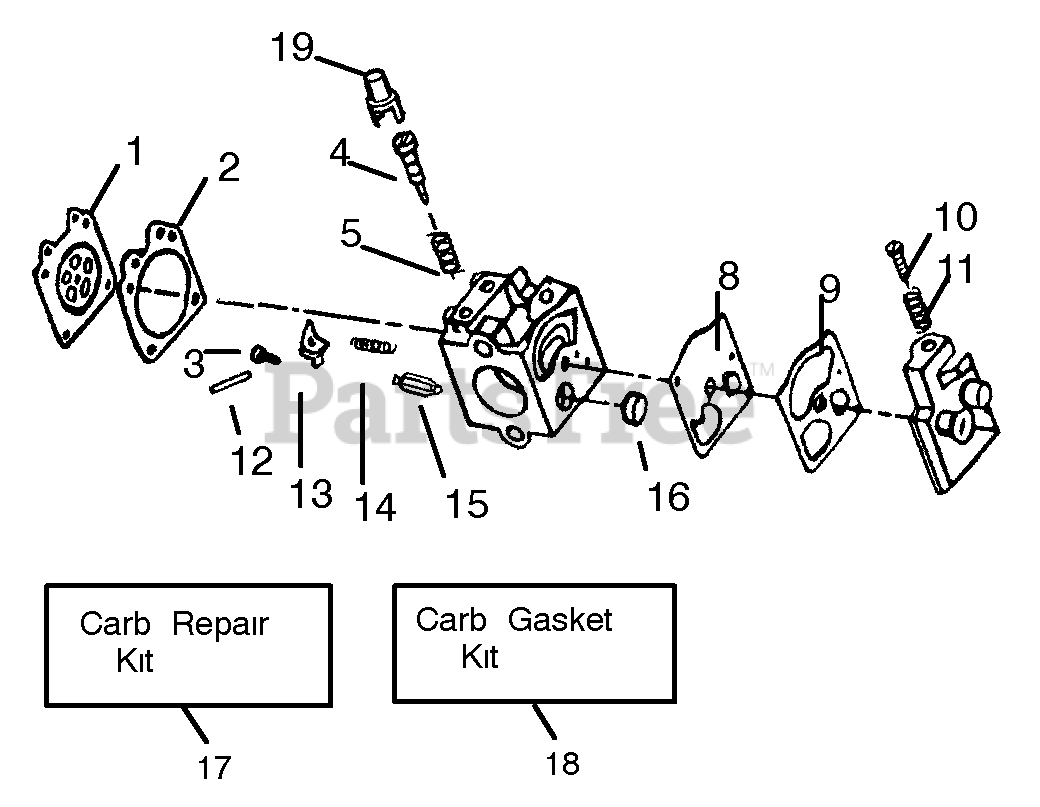

Carburetor Assembly - WT-141 Parts Diagram

  • Title

1

Poulan 530035014

DIAPHRAGM
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

2

Poulan 530035151

Metering Diaphragm Gasket

$3.99

$

In Stock, Qty 8

0

3

Poulan 530035016

Metering Lever Pin Screw

$3.49

$

In Stock, Qty 6

0

4

Poulan 530035268

Mixture Needle

$7.99

$

Usually ships in 3-10 days

0

5

Poulan 530035214

Mixture Needle Spring
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$6.49

$

In Stock, Qty 10

0

9

Poulan 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

10

Poulan 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 530035208

Idle Speed Spring
(Superseded to 501667801)

$

$

Not available

12

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

$3.49

$

In Stock, only 3 left!

0

13

Poulan 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

14

Poulan 530035188

Metering Lever Spring

$4.99

$

In Stock, Qty 11

0

15

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

$11.99

$

In Stock, Qty 11

0

16

Poulan 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530035264

Carb. Kwik Repair Kit

Note: Contains Ref. #1-4, 9, 10, 14-18

$

$

Not available

18

Poulan 530035219

Carb. Gasket/Diaphragm Kit
(Superseded to 530069844)

Note: Contains Ref. #1, 2, 9, 10

$18.99

$

Usually ships in 3-10 days

0

19

UNKNOWN

$

$

Not available
