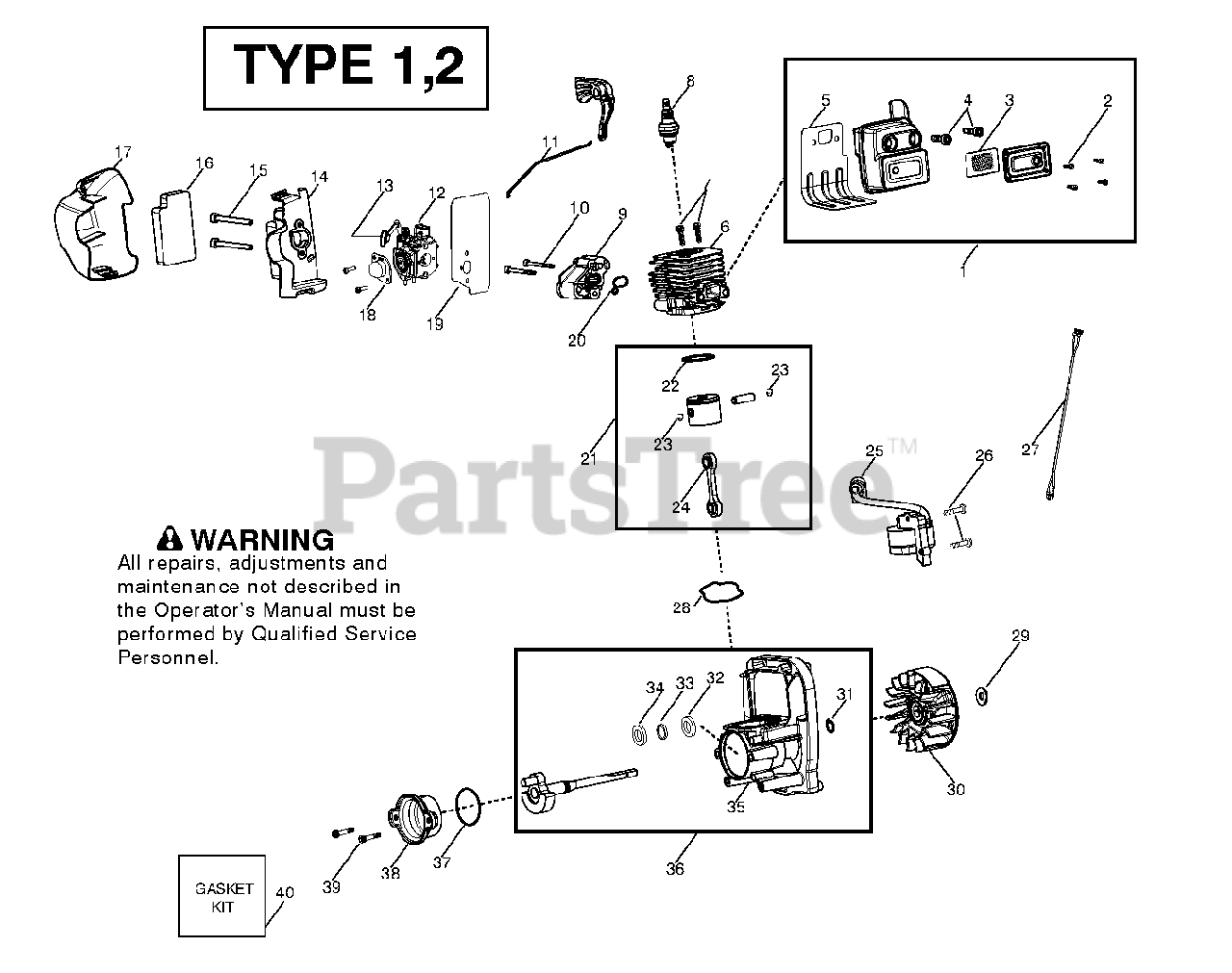

GBV 325 (952715704) - Electrolux/AYP Blower (2010-07) ENGINE Parts Diagram

Blower

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 525592801

ASSY MUFFLER WELDED

Note: (Incl 2 3 4 5)

$37.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 545081845

Muffler Assembly, Welded
(Superseded to 525592801)

$37.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

5

Electrolux/AYP 545081832

KIT GASKET 25CC

$18.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 545115301

CYLINDER CHROME 25CC

$

$

Not available

7

Electrolux/AYP 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

8

Electrolux/AYP 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 545084901

ADAPTER CARBURETOR

$17.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530016441

SCREW

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 545115501

LINKAGE THROTTLE

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 545081855

KIT CARBURETOR WT-875A

Note: (Incl 13 18)

$44.99

$

In Stock, Qty 5

0

13

Electrolux/AYP 545157103

LEVER CHOKE WT-875

$9.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 545112603

BASE AIRBOX RED

$10.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530016429

SCREW

$6.49

$

In Stock, Qty 8

0

16

Electrolux/AYP 545116801

AIR FILTER FOAM

$6.49

$

In Stock, Qty 7

0

17

Electrolux/AYP 545112702

COVER AIRBOX BLACK

$8.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530035497

PURGE BULB 188-16

$9.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 545081832

KIT GASKET 25CC

$18.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 545081832

KIT GASKET 25CC

$18.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 545081864

KIT PISTON CONN ROD

Note: (Incl 22 23 24)

$53.99

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530012472

RING-PISTON
(Superseded to 545154009)

$3.99

$

In Stock, Qty 12

0

23

Electrolux/AYP 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 545081865

KIT PISTON CONN ROD FORGED
(Superseded to 545156002)

$24.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 545158001

KIT MODULE W/0 INTERRUPT
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530016357

SCREW

$6.49

$

In Stock, Qty 5

0

27

Electrolux/AYP 545127601

HARNESS WIRE

$10.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545081832

KIT GASKET 25CC

$18.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 545197301

ASSY FLYWHEEL
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530019264

Seal

$7.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530012582

ASSY CRANKCASE

Note: (Incl 32 33 34)

$21.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 545102102

ASSY CRANKCASE & CRANKSHAFT

Note: (Incl 31 35)

$

$

Not available

37

Electrolux/AYP 545081832

KIT GASKET 25CC

$18.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 530057954

ASSY REAR PLUG

Note: (Incl 37)

$7.49

$

In Stock, only 4 left!

0

39

Electrolux/AYP 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

40

Electrolux/AYP 545081832

KIT GASKET 25CC

Note: (Incl 5 19 20 28 37)

$18.99

$

In Stock, only 1 left!

0
