GC 141333 - Homelite G-Clean Pressure Washer General Assembly Parts Diagram

G-Clean Pressure Washer

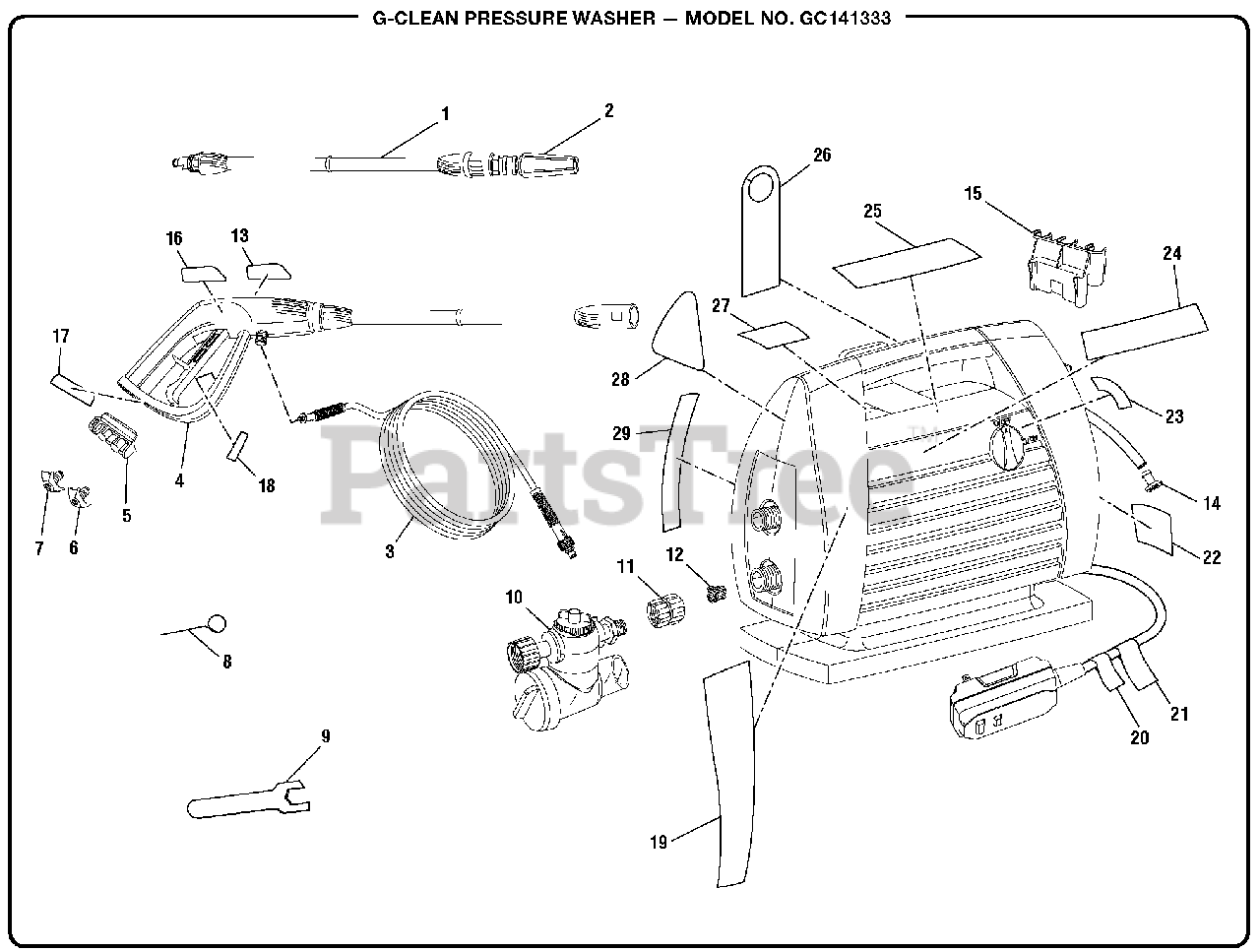

General Assembly Parts Diagram

  • Title

1

Homelite 310423005

Spray Wand

$

$

Not available

2

Homelite 308494040

Turbo Nozzle

$

$

Not available

3

Homelite 308835034

High Pressure Hose

$

$

Not available

4

Homelite 308760025

Trigger Handle Assembly

$

$

Not available

5

Homelite 570727010

Nozzle Holder

$

$

Not available

6

Homelite 310852001

Soap Nozzle

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 310852002

25deg Nozzle

$

$

Not available

8

Homelite 678775002

Nozzle Cleaning Tool

$

$

Not available

9

Homelite 678662002

Wrench

$

$

Not available

10

Homelite 309024003

Detergent Injector

$

$

Not available

11

Homelite 310423004

Coupler

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 308103011

Water Inlet Filter

$

$

Not available

13

Homelite 940324022

Trigger Handle Warning Label (English)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 309029008

Injection Hose Filter

$

$

Not available

15

Homelite 308638027

Wand Storage Bracket

$

$

Not available

16

Homelite 940705119

Trigger Handle Logo Label

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940779008

Trigger Handle Rating Label

$

$

Not available

19

Homelite 940705120

Large Logo Label

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 940604004

CA Proposition 65 Label

$

$

Not available

21

Homelite 940324013

Cord Danger Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 940934001

Temperature Label

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 940698015

On/Off Label

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 940705121

Name Label

$

$

Not available

25

Homelite 940707079

Danger Label

$0.99

$

Usually ships in 3-7 days

0

26

Homelite 940971067

Danger Hang Tag

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 940678175

Data Label

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 940705118

Small Logo Label

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 940734082

Quick Start Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 988000094

Operator's Manual

Note: (Not Shown)

$

$

Not available
