GC-145 (21BK145G912) - Cub Cadet Garden Cultivator (2010) General Assembly Parts Diagram

Garden Cultivator

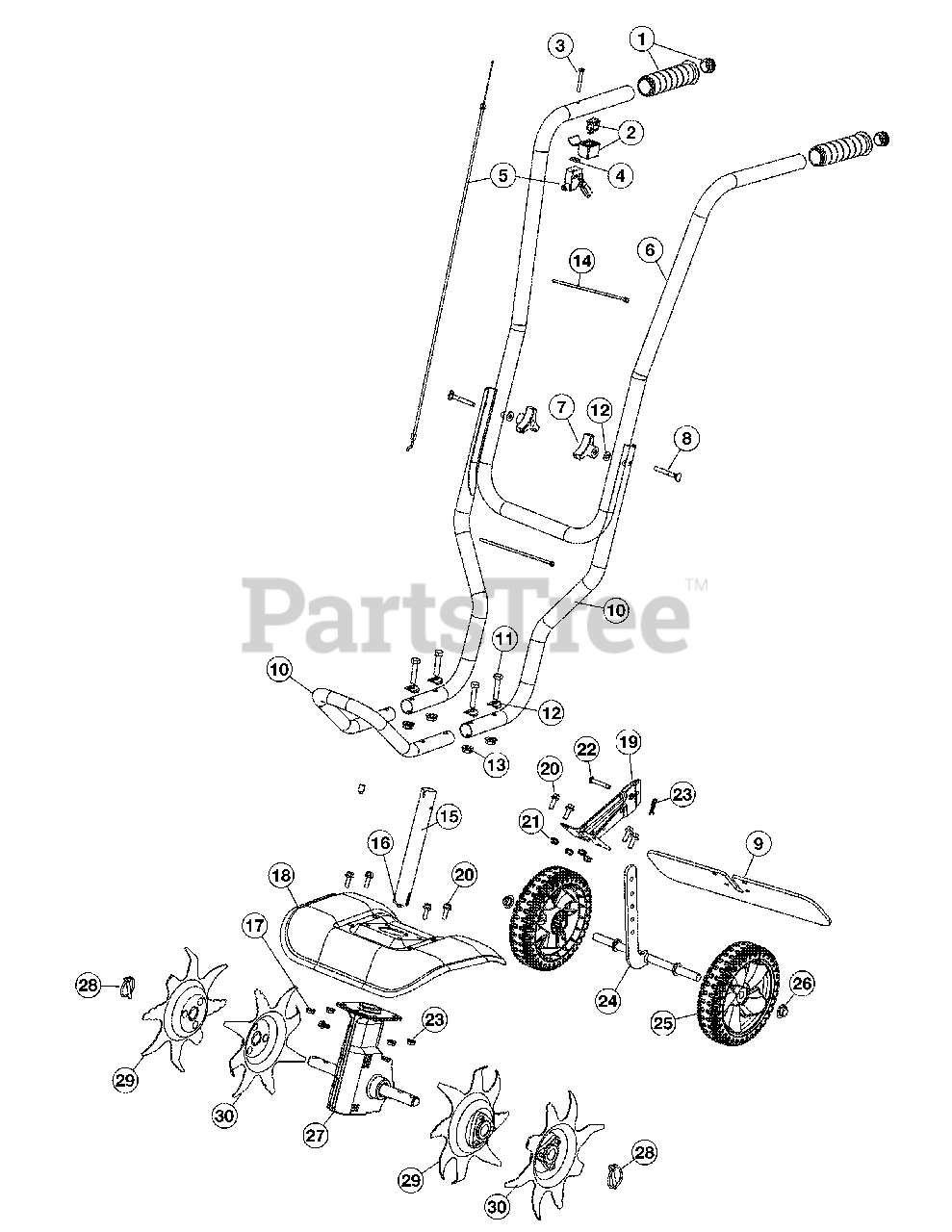

General Assembly Parts Diagram

  • Title

1

Cub Cadet 791-182675

Grip

$

$

Not available

2

Cub Cadet 753-06006

Switch Assembly

$12.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-04003

Screw
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 753-04186

Weldnut

$

$

Not available

5

Cub Cadet 753-06007

Throttle Assembly

$26.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-182882

Upper Handle

$

$

Not available

7

Cub Cadet 791-182677

Knob

$13.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 791-182899

Bolt

$7.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-06279

Debris Shield

$

$

Not available

10

Cub Cadet 753-06009

Lower Handle Assembly

$43.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0805

Bolt
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 936-0451

Washer
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Lock Nut

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

15

Cub Cadet 753-06011

Boom Assembly (Incl. Ref No. 16)

$39.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-06005

Flex Shaft

$11.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 791-180288

Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 753-06274

Tine Shield

$

$

Currently unavailable

19

Cub Cadet 753-04058

Wheel Bracket Assembly

$38.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 6109

Bolt

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 912-3027

Lock Nut

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 711-1017

Clevis Pin

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 753-04063

Wheel Support Bracket

$54.99

$

In Stock, only 1 left!

0

25

Cub Cadet 734-04261

Wheel

$19.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-0299

Push Cap

$7.49

$

In Stock, Qty 20+

0

27

Cub Cadet 753-06063

Gearbox

$124.99

$

In Stock, Qty 9

0

28

Cub Cadet 753-06064

Click Pin

$5.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 753-05987

Tine (RH Outer/ LH Inner)

$40.99

$

In Stock, only 3 left!

0

30

Cub Cadet 753-05986

Tine (LH Outer/ RH Inner)

$40.99

$

In Stock, only 3 left!

0
