GC-2B (06332) - Scag Fabric 2-Bag Grass Catcher (SN: P3200001 - P3299999) GC-2B HOOD AND DISCHARGE ASSEMBLY Parts Diagram

Fabric 2-Bag Grass Catcher

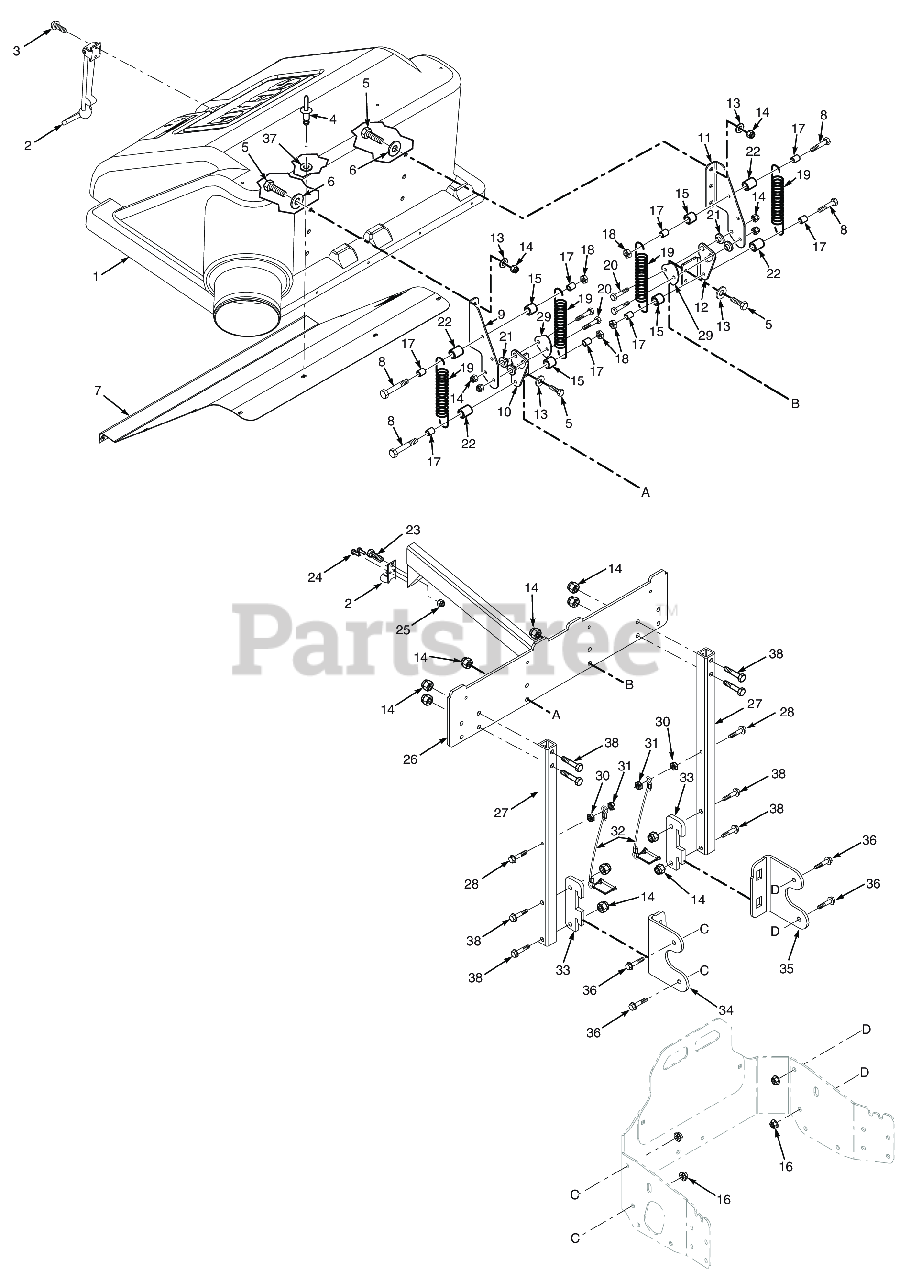

GC-2B HOOD AND DISCHARGE ASSEMBLY Parts Diagram

  • Title

1

Scag 462932

Hood Assembly

$741.99

$

Usually ships in 2-12 days

0

2

Scag 482409

Latch, Hopper

$76.99

$

In Stock, only 1 left!

0

3

Scag 04010-25

Screw, #10-32 x 3/4"

$1.49

$

In Stock, Qty 5

0

3

Scag 04041-09

Flatwasher, 3/8-.196 x .496 x .048

$2.99

$

Usually ships in 2-12 days

0

3

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

0

4

Scag 04090-02

Pop Rivet, 3/16 x .652"

$0.99

$

In Stock, only 3 left!

0

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 15

0

6

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

7

Scag 424731

Screen, GC Hood

$238.99

$

Usually ships in 2-12 days

0

8

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 20+

0

9

Scag 425831

Hinge, Upper RH

$30.99

$

Usually ships in 2-12 days

0

10

Scag 425876

Hinge, Lower RH

$25.99

$

Usually ships in 2-12 days

0

11

Scag 425830

Hinge, Upper LH

$30.99

$

Usually ships in 2-12 days

0

12

Scag 425875

Hinge, Lower LH

$25.99

$

Usually ships in 2-12 days

0

13

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 43277

SPACER, J-PULL ROD

$6.49

$

Usually ships in 2-12 days

0

16

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

17

Scag 43212

Spacer, Deck Assist

$4.49

$

Usually ships in 2-12 days

0

18

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

19

Scag 482304

Spring, Hood Hinge

$65.99

$

Usually ships in 2-12 days

0

20

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 17

0

21

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

22

Scag 43886

Spacer

$7.99

$

In Stock, only 2 left!

0

23

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04090-03

Rivot, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

25

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 452675

Frame Weldment, Bag Support

$160.99

$

Usually ships in 2-12 days

0

27

Scag 424750

Tube, Grass Catcher Mount

$85.99

$

Usually ships in 2-12 days

0

28

Scag 04001-03

Bolt, Hex Head 1/4-20 x 0.63"

$0.99

$

In Stock, Qty 8

0

29

Scag 425832

Guard, GC Hinge

$6.49

$

Usually ships in 2-12 days

0

30

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

31

Scag 04021-02

Bolt, Hex Hd. 1/2-13 x 9-1/2"

$0.99

$

In Stock, Qty 6

0

32

Scag 485859

Snap Pin Assembly w/Lanyard

$24.99

$

Usually ships in 2-12 days

0

33

Scag 424752

Latch, GC-SFZ

$12.99

$

Usually ships in 2-12 days

0

34

Scag 424751

Bracket, GC Mount RH

$22.99

$

Usually ships in 2-12 days

0

35

Scag 424749

Bracket, GC Mount LH

$27.99

$

Usually ships in 2-12 days

0

36

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

37

Scag 04041-19

Flatwasher, 3/16 (.196 x .469 x .048)

$0.99

$

In Stock, Qty 5

0

38

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0
