Scag GC-2B (06332) - Scag Fabric 2-Bag Grass Catcher (SN: P3200001 - P3299999) SPZ 52"/61" BLOWER HOUSING ASSEMBLY Parts Lookup with Diagrams

1

Scag 461778

Blowing Housing Assembly w/Fan

$607.99

$

Usually ships in 2-12 days

2

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, only 3 left!

3

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

4

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

5

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, Qty 8

6

Scag 483209

Pulley, Idler 4" Dia. - 61" & 72"

$53.99

$

Usually ships in 2-12 days

7

Scag 04066-04

Quick Pin, 5/16" Dia.

$7.49

$

In Stock, only 1 left!

8

Scag 482300

Cap, Square Vinyl

$3.49

$

In Stock, only 1 left!

9

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

10

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

11

Scag 427387

Plate, Blower Catch

$4.99

$

Usually ships in 2-12 days

12

Scag 423296

Plate, Catch Mounting

$25.99

$

Usually ships in 2-12 days

13

Scag 04003-11

SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

14

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

15

Scag 483402

Decal, Warning - Belt Cover

$1.49

$

In Stock, only 2 left!

16

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

17

Scag 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2" Full Thread

$2.49

$

In Stock, only 1 left!

18

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 11

19

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

20

Scag 43575

Pivot, Idler - 61" & 72"

$26.99

$

In Stock, only 1 left!

21

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 13

22

Scag 462931

Idler Arm Assembly

$55.99

$

Usually ships in 2-12 days

22

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

23

Scag 485829

Belt (52)

$43.99

$

Usually ships in 2-12 days

23

Scag 482831

Belt, GC-STT 72"

$57.99

$

Usually ships in 2-12 days

24

Scag 483189

Pulley, 3-1/2" O.D., GC-STT 52"

$48.99

$

In Stock, only 1 left!

25

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

26

Scag 43212

Spacer, Deck Assist

$4.49

$

Usually ships in 2-12 days

27

Scag 04001-168

Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8

$0.99

$

In Stock, Qty 7

28

Scag 04012-04

Setscrew, Hex Socket Knurl Cup Pt. 5/16 - 18 (nylock)

$0.99

$

In Stock, Qty 12

29

Scag 482298

Pulley, 4-3/4" O.D. - 1" Bore

$63.99

$

In Stock, only 1 left!

30

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

31

Scag 483034

Bearing Assembly

$39.99

$

In Stock, only 2 left!

32

Scag 483392

Decal, Blower

$3.49

$

Usually ships in 2-12 days

33

Scag 483391

Decal, Danger

$3.49

$

Usually ships in 2-12 days

34

Scag 484696

Decal, Grease Point

$1.49

$

Usually ships in 2-12 days

35

Scag 461342

Blower Housing Weldment w/Decals

$389.99

$

Usually ships in 2-12 days

36

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, only 4 left!

37

Scag 04063-06

KEY 1/4 X 1/4 X 1 1/2"(FOR 1" CRANKSHAFT

$1.49

$

In Stock, Qty 8

38

Scag 451694

Fan Weldment, Narrow

$

Currently unavailable 

39

Scag 421319

COVER, BLOWER HOUSING

$51.99

$

In Stock, only 1 left!

40

Scag 461387

Adapter, Blower GC-STC,

$120.99

$

Usually ships in 2-12 days

41

Scag 48137-04

Rubber Strap 7-3/4"

$10.99

$

In Stock, only 1 left!

42

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 17

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, Qty 7

43

Scag 48136-18

Clamp, 6-1/2"

$11.99

$

Usually ships in 2-12 days

44

Scag 48135-12

Hose, 6" x 56"

$225.99

$

Usually ships in 2-12 days

45

Scag 461682

Blower Mounting Frame w/ Decal

$287.99

$

Usually ships in 2-12 days

46

Scag 481522

Spring, Helper (61" Cutter Deck Only)

$33.99

$

In Stock, only 3 left!

47

Scag 43277

SPACER, J-PULL ROD

$6.49

$

Usually ships in 2-12 days

48

Scag 04062-05

Hair Pin Cotter, .243 x 4"

$4.99

$

Usually ships in 2-12 days

49

Scag 04067-10

Pin, Ring 1/2" x 2-1/4"

$8.49

$

In Stock, only 3 left!

50

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

51

Scag 427331

Belt Cover

$15.99

$

Usually ships in 2-12 days

52

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 17

53

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 17

54

Scag 481428

Grip, Deck Latch Lever

$4.49

$

Usually ships in 2-12 days

55

Scag 483393

Decal, Rotating Blower

$4.99

$

Usually ships in 2-12 days

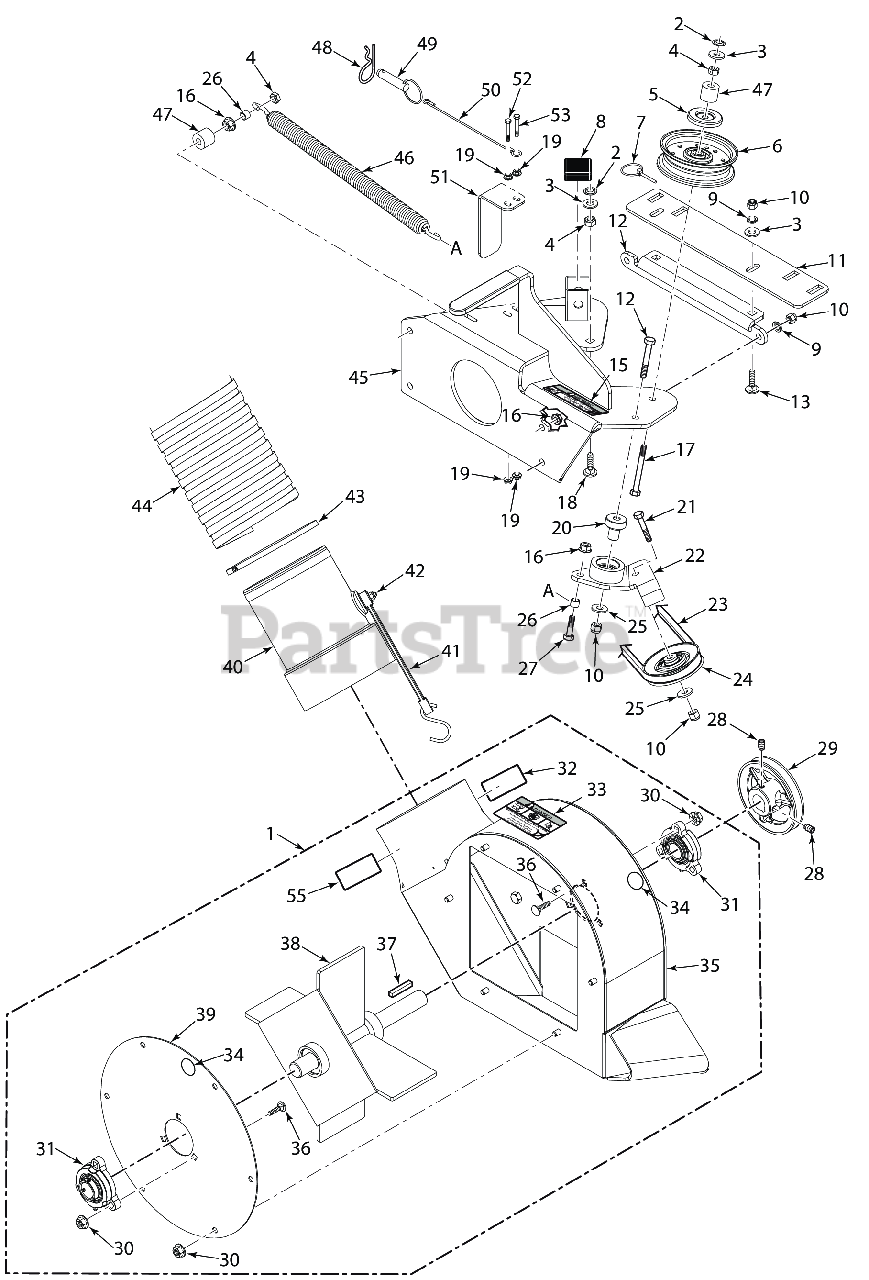

GC-2B (06332) - Scag Fabric 2-Bag Grass Catcher (SN: P3200001 - P3299999) SPZ 52"/61" BLOWER HOUSING ASSEMBLY Parts Diagram

SPZ 52"/61" BLOWER HOUSING ASSEMBLY Parts Diagram
