GC-2B (06376) - Scag Fabric 2-Bag Grass Catcher (SN: T0300001 - T0399999) GC-2B CUTTER DECK AND FRONT WEIGHT COMPONENTS Parts Diagram

Fabric 2-Bag Grass Catcher

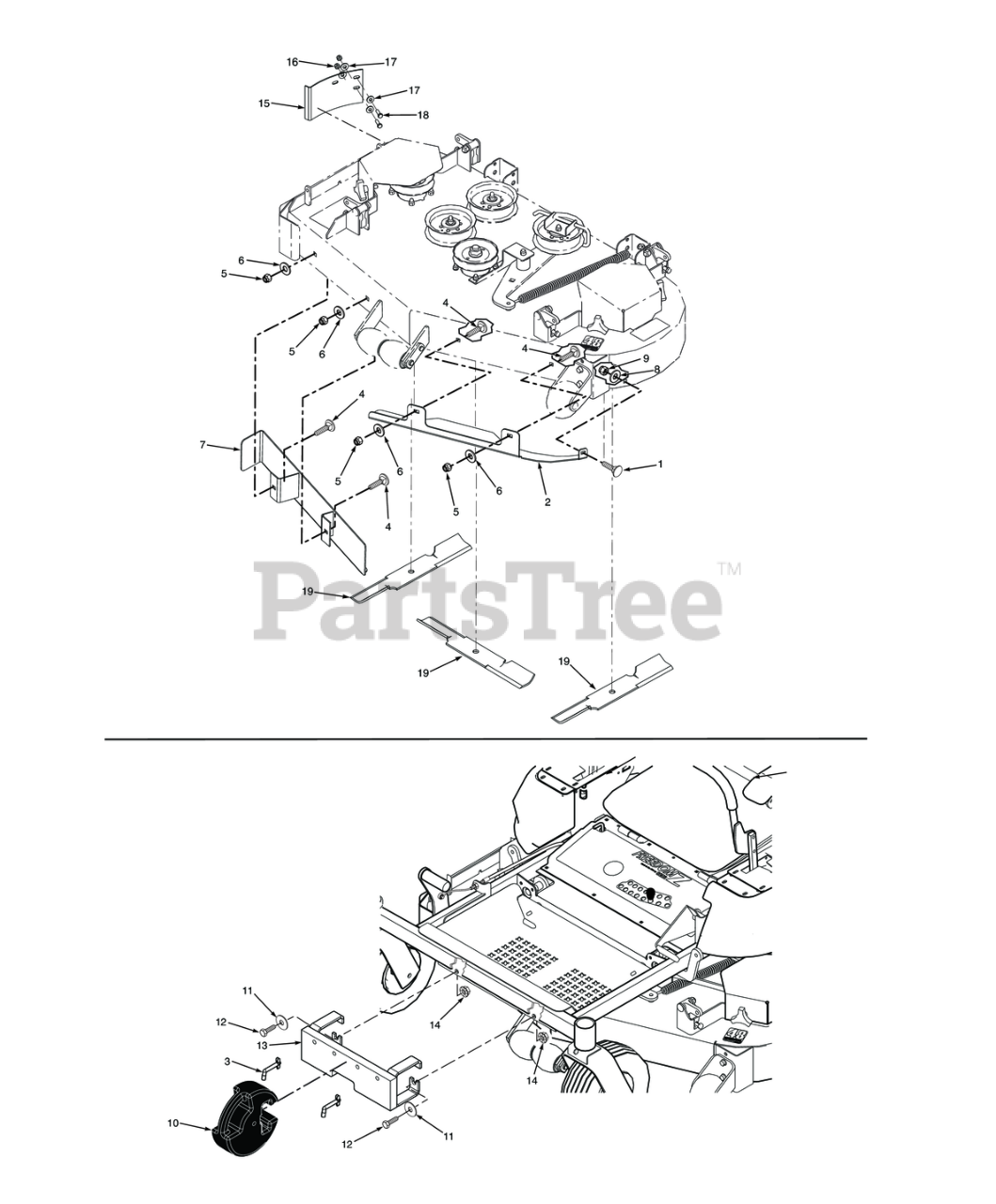

GC-2B CUTTER DECK AND FRONT WEIGHT COMPONENTS Parts Diagram

  • Title

1

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

2

Scag 424745

Baffle, LH - 52" Deck

$88.99

$

Usually ships in 2-12 days

0

Scag 425267

Baffle, LH - 61" Deck

$48.99

$

Usually ships in 2-12 days

0

3

Scag 485172

Pin, Weight Retention

$16.99

$

Usually ships in 2-12 days

0

4

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 9

0

5

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 9

0

7

Scag 451958

Baffle, Weldment, RH - 52" Deck

$121.99

$

Usually ships in 2-12 days

0

Scag 452108

Baffle, Weldment, RH - 61" Deck

$98.99

$

Usually ships in 2-12 days

0

8

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

0

10

Scag 484758

Weight

$189.99

$

Usually ships in 2-12 days

0

11

Scag 04040-13

Flat Washer, 1/2 (.562 x 1.375 x .109)

$0.99

$

In Stock, Qty 9

0

12

Scag 04001-70

Bolt, Hex Head 1/2-13 x 1-1/4"

$1.49

$

In Stock, Qty 5

0

13

Scag 452419

Support Weldment, Weight Mounting

$232.99

$

Usually ships in 2-12 days

0

14

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 20+

0

15

Scag 427389

Filler Plate - 52

$55.99

$

Usually ships in 2-12 days

0

Scag 427337

Filler Plate - 61

$26.99

$

Usually ships in 2-12 days

0

16

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 11

0

19

Scag 481711

Cutter Blade 18" Hi Lift (marbane)

Note: (52" Deck)

$40.99

$

In Stock, Qty 16

0

Scag 481712

Cutter Blade, High Lift (61" Deck)

Note: (61" Deck)

$51.99

$

In Stock, only 1 left!

0
