GC-2B (06376) - Scag Fabric 2-Bag Grass Catcher (SN: T0300001 - T0399999) SPZ 52"/61" BLOWER MOUNTING COMPONENTS Parts Diagram

Fabric 2-Bag Grass Catcher

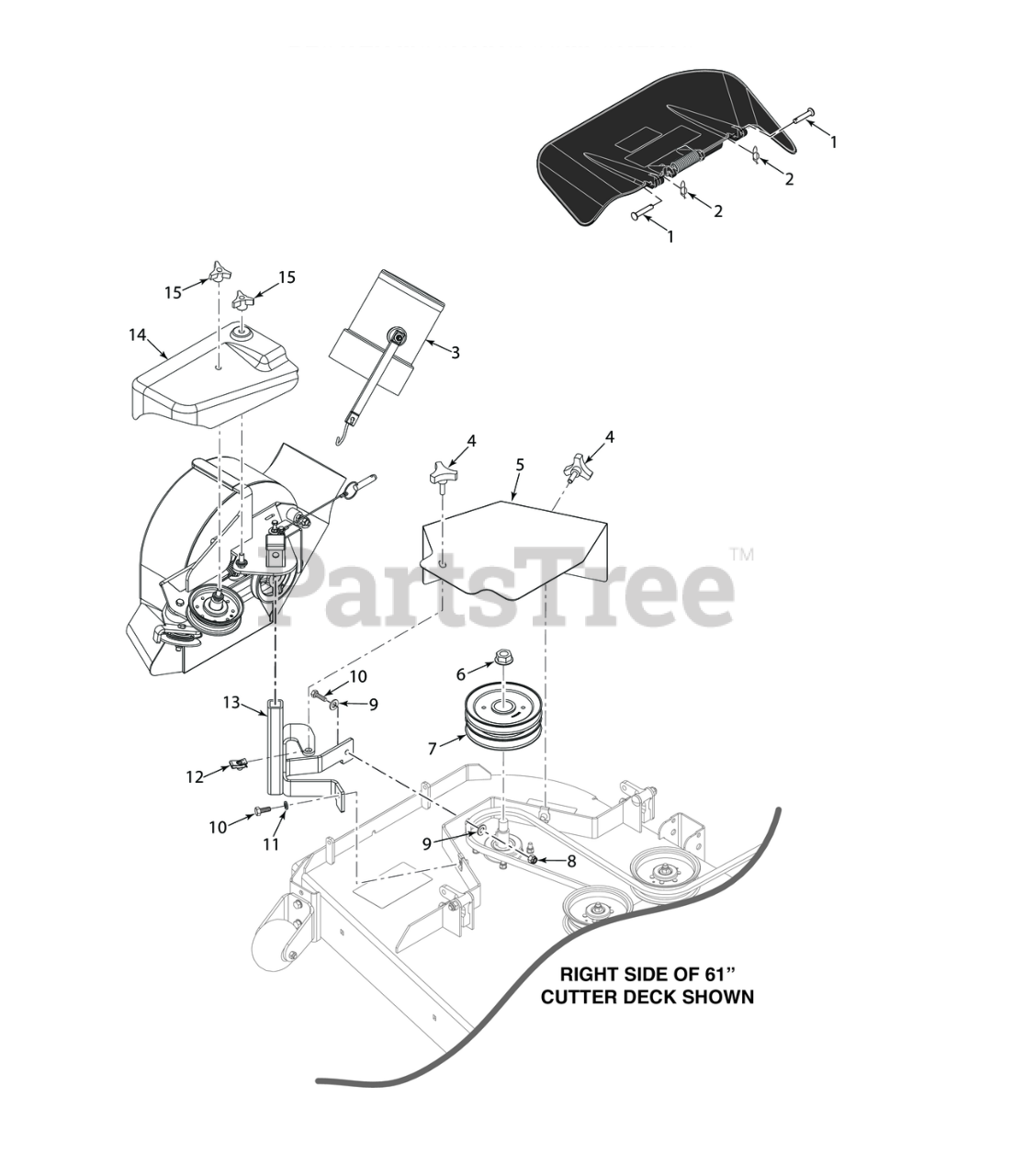

SPZ 52"/61" BLOWER MOUNTING COMPONENTS Parts Diagram

  • Title

1

Scag 04064-15

Clevis Pin, 5/16 x 1-1/2"

$1.49

$

In Stock, Qty 11

0

2

Scag 04069-03

Pin, Rue Cotter 5/16 Dia.

$1.49

$

In Stock, only 3 left!

0

3

Scag 461387

Adapter, Blower GC-STC,

$120.99

$

Usually ships in 2-12 days

0

4

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

5

Scag 427345

Belt Cover - 52

$47.99

$

Usually ships in 2-12 days

0

Scag 427344

Belt Cover - 61

$39.99

$

Usually ships in 2-12 days

0

6

Scag 04112-06

Nut, 3/4-16 Spriral Lock

$11.99

$

In Stock, only 3 left!

0

7

Scag 485824

Pulley, Double Groove - 52

$261.99

$

Usually ships in 2-12 days

0

Scag 485816

Pulley, Double Groove - 61

$257.99

$

Usually ships in 2-12 days

0

8

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 15

0

11

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

12

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

13

Scag 462952

Mounting Post Assembly, Blower - 52

Note: (incl. #12)

$103.99

$

Usually ships in 2-12 days

0

Scag 462953

Mounting Post Assembly, Blower - 61

Note: (incl. #12)

$93.99

$

Usually ships in 2-12 days

0

14

Scag 485837

Belt Cover - 52

$81.99

$

Usually ships in 2-12 days

0

Scag 485836

Belt Cover - 61

$129.99

$

Usually ships in 2-12 days

0

15

Scag 04029-04

Wing Nut, 3/8-16 (Small) Top side

$2.99

$

In Stock, Qty 7

0
