GC-33 - Scag Grass Catcher SCAG GRASS CATCHER GC-33 Parts Diagram

Grass Catcher

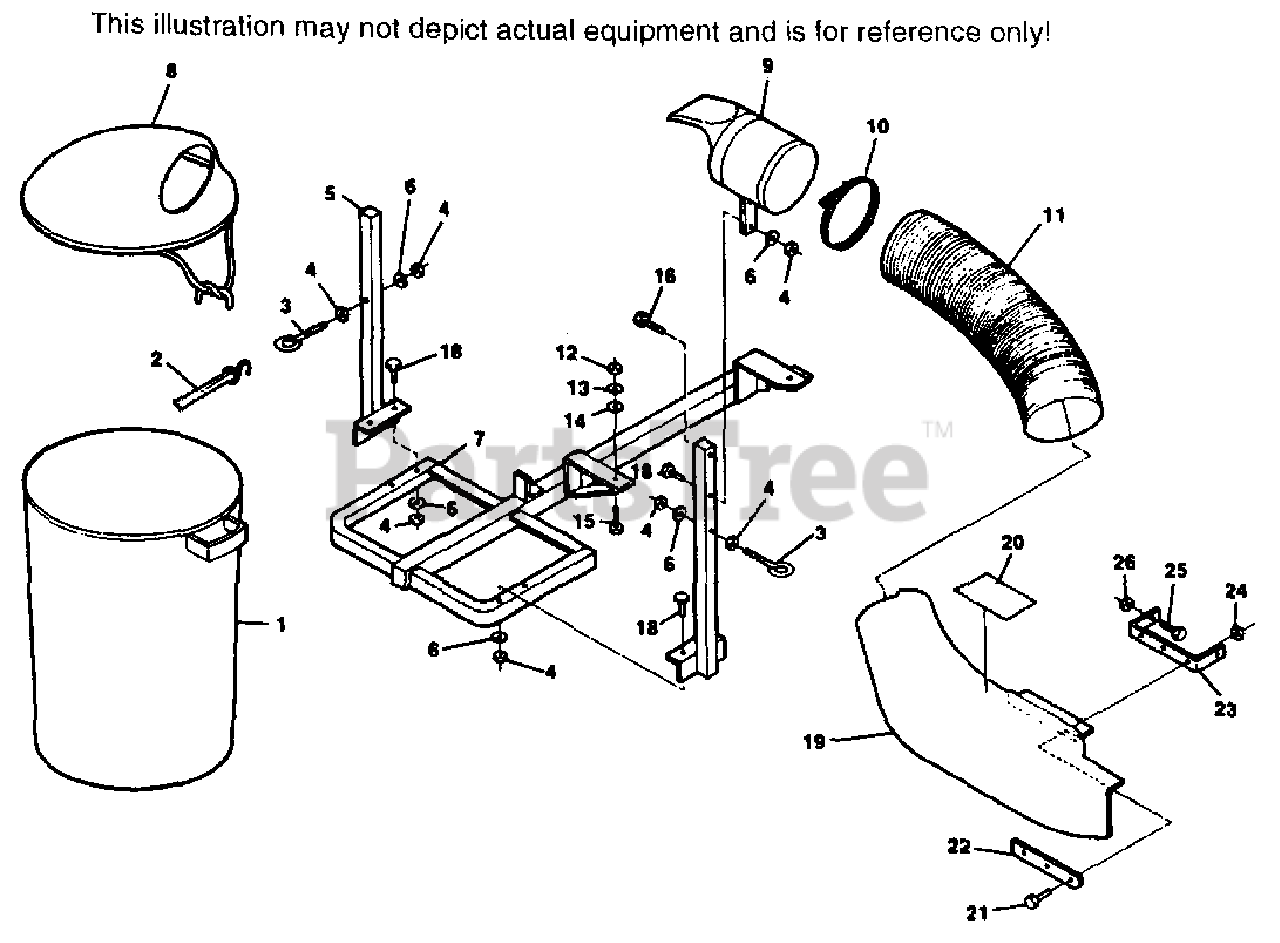

SCAG GRASS CATCHER GC-33 Parts Diagram

  • Title

1

Scag 48234

BUCKET, GRASS CATCHER

$

$

Not available

2

Scag 48137

RUBBER STRAP
(Superseded to 48137-01)

$12.99

$

Usually ships in 2-12 days

0

3

Scag 04070-04

EYEBOLT, 5/16-18 X 2-3/4

$

$

Currently unavailable

4

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

5

Scag 45107

VERTICAL SPRT-REAR

$

$

Not available

6

LOCK WASHER, SPRING 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 45106

FRAME WELDMENT

$

$

Not available

8

Scag 48235

HOOD

$

$

Not available

9

Scag 45109

DEFLECTOR WELDMENT

$

$

Not available

10

Scag 48135-03

CLAMP-7"
(Superseded to 48135-05)

$126.99

$

Usually ships in 2-12 days

0

11

Scag 48233

TUBE-7"

$

$

Not available

12

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

LOCK WASHER, SPRING 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

WASHER, 25/64 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

HEX HEAD BOLT, 3/8-16 X 3

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

16

HEX HEAD BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?17

Scag 45108

VERTICAL SUPPORT-FRONT

$

$

Not available

18

HEX HEAD BOLT, 5/16-18 X 2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

Scag 46096

BOOT ASSEMBLY(INC. 20)

$

$

Not available

20

Scag 48236

DECAL-DANGER
(Superseded to 483391)

$3.49

$

Usually ships in 2-12 days

0

21

HEX HEAD BOLT, 1/4-20 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

22

Scag 42301

REINFORCEMENT-BOOT MTNG.

$

$

Not available

23

Scag 42302

BRACKET-BOOT MOUNTING

$

$

Not available

24

HEX NUT 1/4-20 ELSTC. STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

25

HEX HEAD BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

26

HEX NUT, 5/16-18 ELSTC. STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
