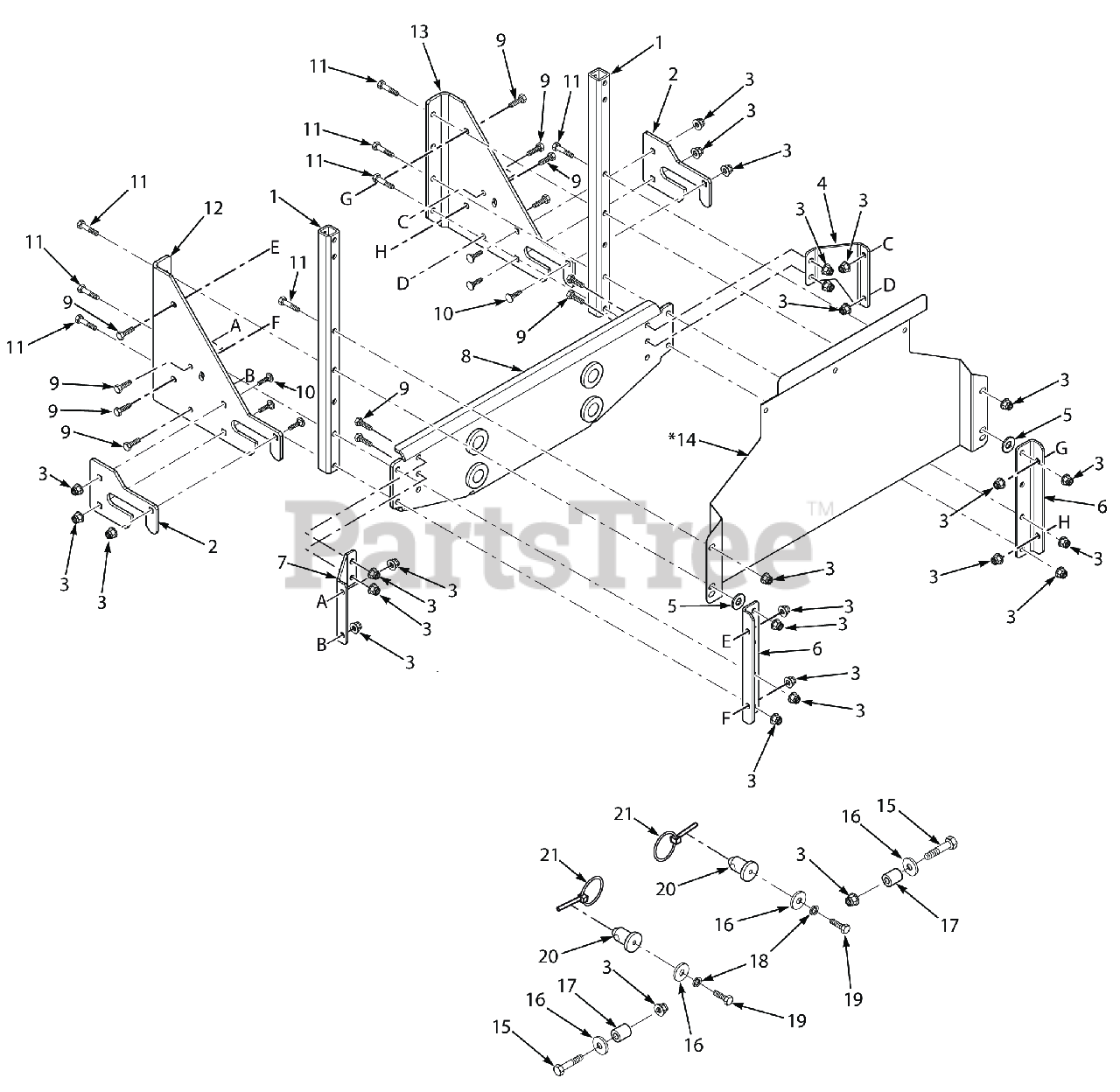

GC-3B (06334) - Scag Fabric 3-Bag Grass Catcher (SN: P3500001 - P3599999) SCZ-61"STT 52"/61" & STTII 52"/61" BAG SUPPORT COMPONENTS (LOWER) Parts Diagram

Fabric 3-Bag Grass Catcher

SCZ-61"STT 52"/61" & STTII 52"/61" BAG SUPPORT COMPONENTS (LOWER) Parts Diagram

  • Title

1

Scag 426385

Tube, Upright

$61.99

$

Usually ships in 2-12 days

0

2

Scag 426024

Wear Plate, GC

$22.99

$

Usually ships in 2-12 days

0

3

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 426089

Angle Brace, LH GC

$22.99

$

Usually ships in 2-12 days

0

5

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 10

0

6

Scag 426088

Mounting Bracket, GC Tube

$21.99

$

Usually ships in 2-12 days

0

7

Scag 426090

Angle Brace, RH GC

$23.99

$

Usually ships in 2-12 days

0

8

Scag 452416

Mounting Bracket Weldment

$157.99

$

Usually ships in 2-12 days

0

9

Scag 04001-16

Bolt, Hex Head 3/8-16 x 1"

$

$

Currently unavailable

10

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

0

11

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 10

0

12

Scag 426087

RH Mounting Bracket, GC

$102.99

$

Usually ships in 2-12 days

0

13

Scag 426086

LH Mounting Bracket, GC

$102.99

$

Usually ships in 2-12 days

0

14

Scag 423435

Heatshield (used on STT & STTII Models Only)

$108.99

$

Usually ships in 2-12 days

0

15

Scag 04041-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$20.99

$

In Stock, Qty 7

0

16

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

17

Scag 43886

Spacer

$7.99

$

In Stock, only 2 left!

0

18

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 15

0

20

Scag 43884

Pin, GC Locator

$30.99

$

In Stock, only 2 left!

0

21

Scag 04066-04

Quick Pin, 5/16" Dia.

$7.49

$

In Stock, only 1 left!

0
