GC-4D (9054) - Scag Metal Grass Catcher (2007 & Beyond) Advantage Cutter Decks Parts Diagram

Metal Grass Catcher

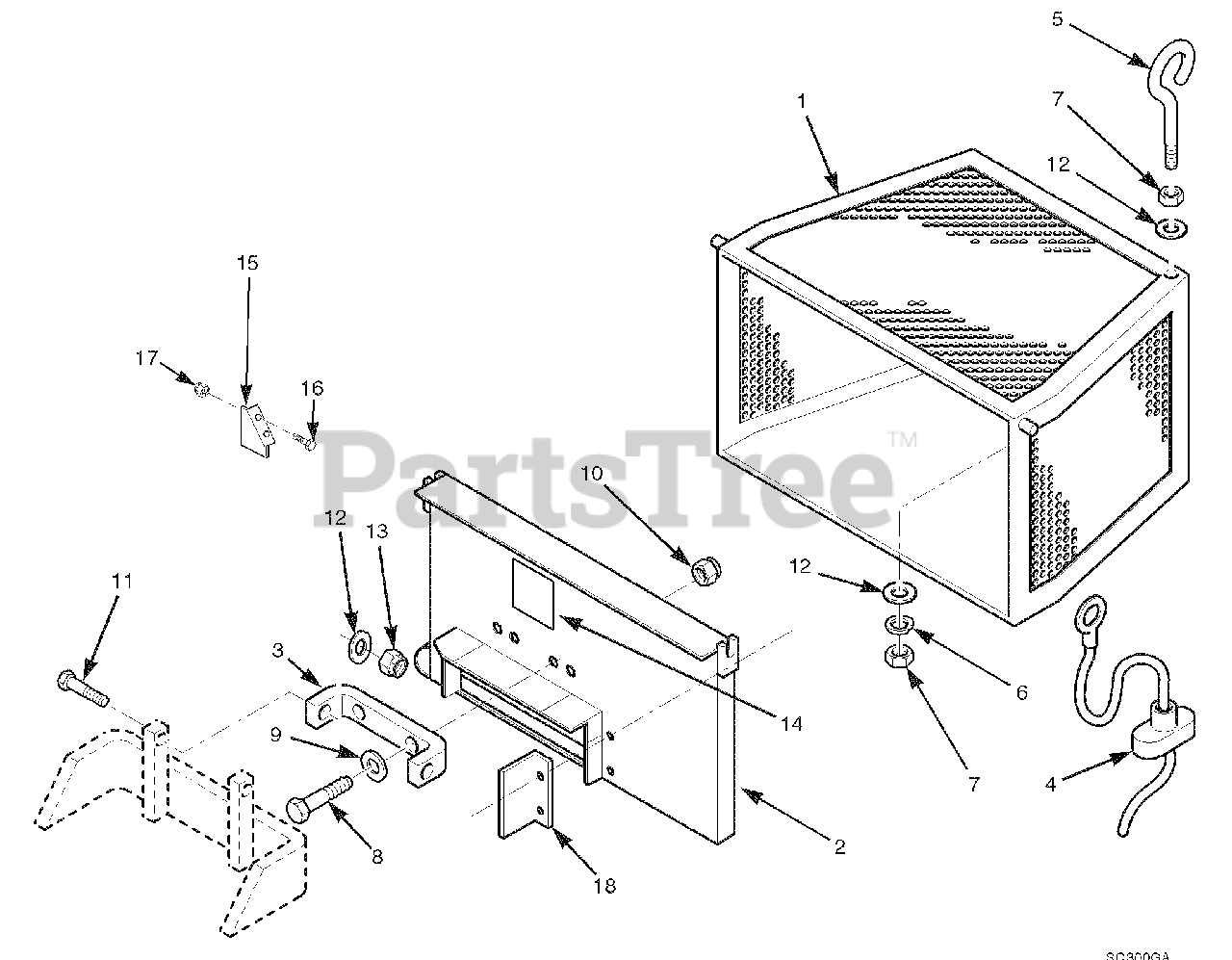

Advantage Cutter Decks Parts Diagram

  • Title

1

Catcher Box

Note: (Not available as spare part)

$

$

Not available

2

Scag 461875

Cover Weldment W/Decal

$381.99

$

In Stock, only 1 left!

0

3

Scag 42211

Mounting Bracket

$28.99

$

In Stock, only 1 left!

0

4

Scag 46043

Pull Rope Assembly

$22.99

$

Usually ships in 2-12 days

0

5

Scag 04070-01

Eyebolt, 5/16-18 x 2-1/4"

$26.99

$

In Stock, only 1 left!

0

6

Scag 04030-03

Lock Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

7

Scag 04020-03

Nut, 5/16-18 Hex Head

$0.99

$

In Stock, only 1 left!

0

8

Scag 04001-20

Bolt, 3/8-16 x 1-1/2" Hex Head

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flat Washer, 3/8"

Note: (.391 x .938 x .105)

$0.99

$

In Stock, Qty 18

0

10

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-10

Bolt, 5/16-18 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

12

Scag 04040-15

Flat Washer, 5/16"

Note: (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

14

Scag 483380

Decal, Danger

$10.99

$

Usually ships in 2-12 days

0

15

Scag 422592

Filler Plate, Chute Advantage Deck Only

$17.99

$

In Stock, only 1 left!

0

16

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, only 2 left!

0

17

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, only 2 left!

0

18

Scag 424355

Filler Plate, Grass Catcher Advantage Decks

$13.99

$

In Stock, only 1 left!

0
