GC-4D - Scag Metal Grass Catcher (1995 - 2006) SCAG GRASS CATCHER GC-4D Parts Diagram

Metal Grass Catcher

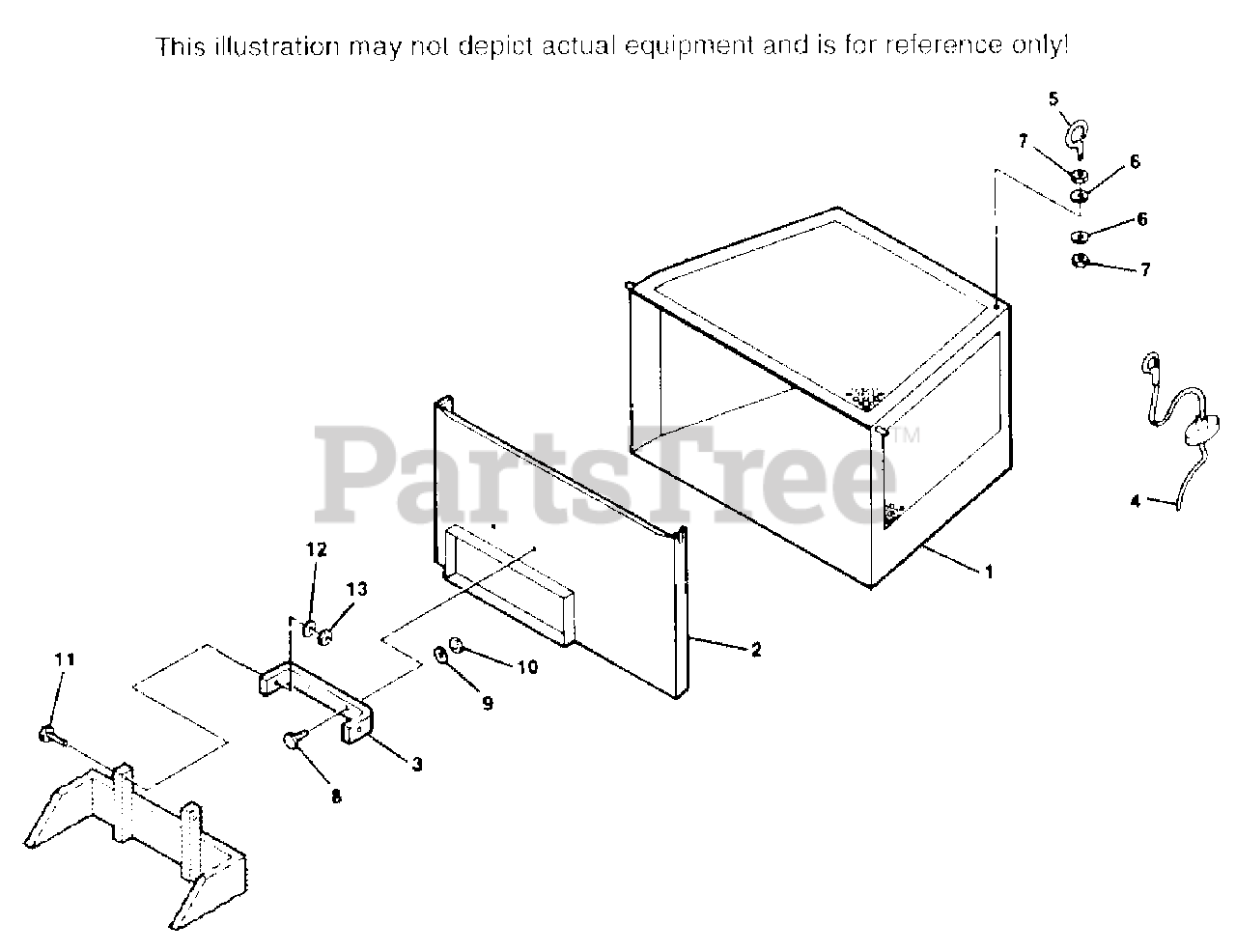

SCAG GRASS CATCHER GC-4D Parts Diagram

  • Title

1

CATCHER BOX

$

$

Not available

2

Scag 45072

SUPPORT COVER
(Superseded to 461875)

$390.99

$

In Stock, only 1 left!

0

3

Scag 42211

MOUNTING BRACKET

$29.99

$

In Stock, only 1 left!

0

4

Scag 46043

PULL ROPE ASSEMBLY

$22.99

$

Usually ships in 2-12 days

0

5

Scag 04007

EYEBOLT

$0.99

$

Usually ships in 2-12 days

0

6

LOCK WASHER 5/16

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

HEX NUT 5/16-18

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

8

HEX HD. BOLT 3/8-16 X 1

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

9

FLAT WASHER 3/8

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

HEX NUT, LOCK 3/8-16

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

HEX HD. BOLT 5/16-18 X 1

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

12

FLAT WASHER 5/16

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

HEX NUT, LOCK 5/16-18

Note: COMMON HARDWARE SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
