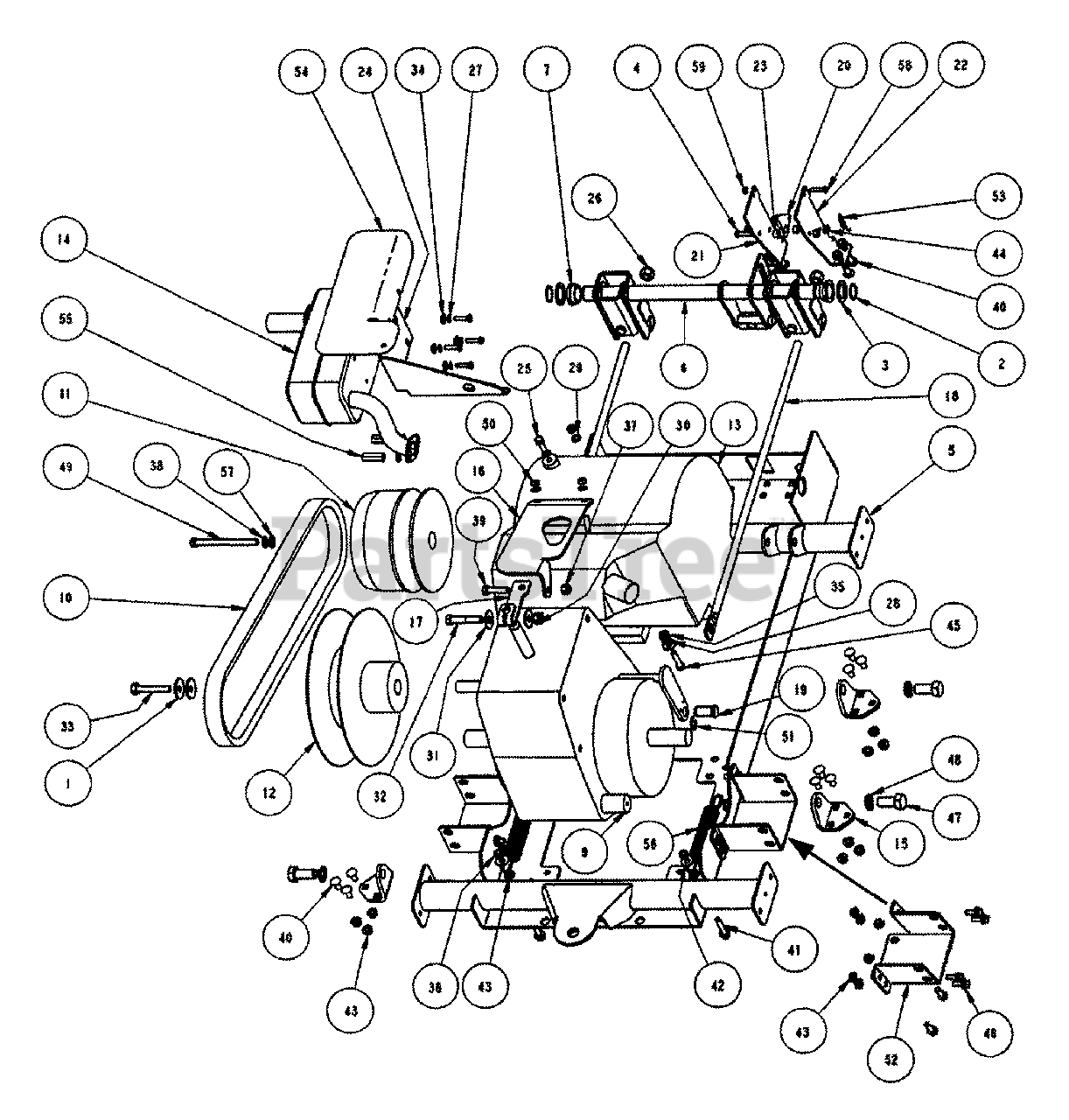

GC 9520KW (7084449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Drive Base Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

Drive Base Group Parts Diagram

  • Title

1

Snapper 7012063

WASHER, CONE
(Superseded to 703963)

$6.99

$

In Stock, Qty 20+

0

2

Snapper 7012709

EXTERNAL RETAINING RING 1 INCH
(Superseded to 703993)

$3.49

$

In Stock, only 1 left!

0

3

Snapper 7016561

BUSHING
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 8

0

4

Snapper 7027230

H HCS, 1/4-20 X 1.00 YZ
(Superseded to 703820)

$3.99

$

In Stock, Qty 5

0

5

Snapper 7058841

WELDMENT, CVT DRIVE BASE
(Superseded to 7058841YP)

$598.99

$

Usually ships in 2-12 days

0

6

Snapper 7058751

BRAKE ASSEMBLY, UTILITY VEHICLE

$

$

Not available

7

Snapper 7072645

BEARING, 1 IN. ID
(Superseded to 7072645YP)

$6.49

$

Usually ships in 2-12 days

0

8

Snapper 7072726

CABLE, PARK BRAKE
(Superseded to 7072726YP)

Note: (NOT SHOWN)

$50.99

$

Usually ships in 2-12 days

0

9

Snapper 7072812

TRANSAXLE, TTK35
(Superseded to 7072812YP)

$3362.99

$

Usually ships in 2-12 days

0

10

Snapper 7072935

BELT, CVT, 58.122 E.L.
(Superseded to 7072935SM)

$121.99

$

In Stock, only 1 left!

0

11

Snapper 7072970

CVT DRIVE CLUTCH

$

$

Not available

12

Snapper 7072971

CVT DRIVE PULLEY
(Superseded to 7072971YP)

$

$

Not available

13

* ENGINE, KAWASAKI 10 HP (KAW # FE290D-AS24)

$

$

Not available

14

Snapper 7063337

MUFFLER
(Superseded to 7063337YP)

Note: Was 72978

$253.99

$

Usually ships in 2-12 days

0

15

Snapper 7074227

BRKT., TRANSMISSION MOUNT
(Superseded to 7074227YP)

$17.99

$

Usually ships in 2-12 days

0

16

Snapper 7072981

BRKT., ENGINE-TRANS. TOURQUE

$

$

Not available

17

Snapper 7072982

SHIFT ARM, CVT
(Superseded to 7072982YP)

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 7072985

BRAKE ROD, REAR CVT
(Superseded to 7072985YP)

$47.99

$

Usually ships in 2-12 days

0

19

Snapper 7073013

BRAKE ANCHOR PIN
(Superseded to 7073013YP)

$17.99

$

Usually ships in 2-12 days

0

20

Snapper 7073097

PAWL, PARK BRAKE
(Superseded to 7073097YP)

$7.99

$

Usually ships in 2-12 days

0

21

Snapper 7073098

BRKT., LH PARK BRAKE PAWL PIVOT
(Superseded to 7073098YP)

$20.99

$

Usually ships in 2-12 days

0

22

Snapper 7073099

BRKT., RH PARK BRAKE PAWL PIVOT

$

$

Not available

23

Snapper 7073100

SPACER, PARK BRAKE
(Superseded to 7073100SM)

$9.99

$

Usually ships in 2-12 days

0

24

Snapper 7073213

MUFFLER MOUNTING BRACKET
(Superseded to 7073213YP)

$48.99

$

In Stock, only 1 left!

0

25

Snapper 7077692

M8-1.25 X 18, HEX SEMS
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7079295

NUT, 1/2-20, LIGHT, NYLOCK
(Superseded to 7079295YP)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7090052

SPLIT LOCK WASHER, 1/4
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

28

Snapper 7090187

WASHER, 5/16 SPLIT LOCK
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7090395

ETLW, 5/16
(Superseded to 703138)

$3.99

$

In Stock, Qty 10

0

30

Snapper 7090970

HTLN, 7/16-20
(Superseded to 7090970YP)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 7090991

WASHER, 1/4 X 1 X .065
(Superseded to 7090991YP)

$2.99

$

Usually ships in 2-12 days

0

32

Snapper 7091028

H HCS, 7/16-20 X 2-1/4
(Superseded to 7091028YP)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7091029

M10-1.5 X 60 HHCS
(Superseded to 7091029YP)

$4.99

$

In Stock, only 1 left!

0

34

Snapper 7091294

WASHER, .28 X .63 X .06 GR5YZ
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

35

Snapper 7091297

HEX NUT, 5/16-24 YZ
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7091298

HEX NYLON INSERT NUT 5/16-18 YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

37

Snapper 7091299

HNYL, 3/8-16, YZ
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7091320

SLW, .38 X .68 X .09 YZ
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

39

Snapper 7091497

H HCS 3/8-16 X 1-1/2 GR5 YZ
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

40

Snapper 7091508

RHSSNB, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

41

Snapper 7091602

HFLB, 5/16-18 X 1.50 YZ
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

42

Snapper 7091528

WASHER, .375 X .875 X .083
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

43

Snapper 7091601

FLN 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

44

Snapper 7091603

1/4-20 HEX NYLON INSERT NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7091609

H HCS, 5/16-24 X 1-1/2
(Superseded to 7091609SM)

$4.99

$

Usually ships in 2-12 days

0

46

Snapper 7091905

HFLB, 5/16-18 X 7/8-YZ
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0

47

Snapper 7092041

HHCS, 1/2-13 X 5.00
(Superseded to 7092041YP)

$10.99

$

Usually ships in 2-12 days

0

48

Snapper 7092042

16mm SLW, YZ
(Superseded to 7092042YP)

$2.99

$

Usually ships in 2-12 days

0

49

Snapper 7092043

HHCS, 3/8-24 X 4.50 YZ

$

$

Not available

50

Snapper 7092044

HEX NUT, M8 X 1.25, YZ
(Superseded to 7092044YP)

$2.99

$

Usually ships in 2-12 days

0

51

Snapper 7071953

RETAINING RING 5/8
(Superseded to 7071953YP)

$2.99

$

Usually ships in 2-12 days

0

52

Snapper 7073106

CHANNEL, SUBFRAME CONNECT
(Superseded to 7073106YP)

$34.99

$

Usually ships in 2-12 days

0

53

Snapper 7072550

SPRING, EXT. PAWL RETURN
(Superseded to 7011224YP)

$18.99

$

Usually ships in 2-12 days

0

54

Snapper 7073167

HEAT SHIELD
(Superseded to 7073167YP)

$24.99

$

Usually ships in 2-12 days

0

55

Snapper 7073318

HEX NUT, M8-1.25, YZ SPECIAL

$15.99

$

Usually ships in 2-12 days

0

56

Snapper 7073470

SPRING, BRAKE RETURN
(Superseded to 7073470YP)

$18.99

$

Usually ships in 2-12 days

0

57

Snapper 7090122

WASHER, SAEW 3/8 FLAT
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

58

Snapper 7090299

HWST, #10-32 X 1.00
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

59

Snapper 7091801

HEX CENTER LOCK NUT, #10-32
(Superseded to 7091801YP)

$2.99

$

Usually ships in 2-12 days
