GC 9520KW (7084449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Front Suspension Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

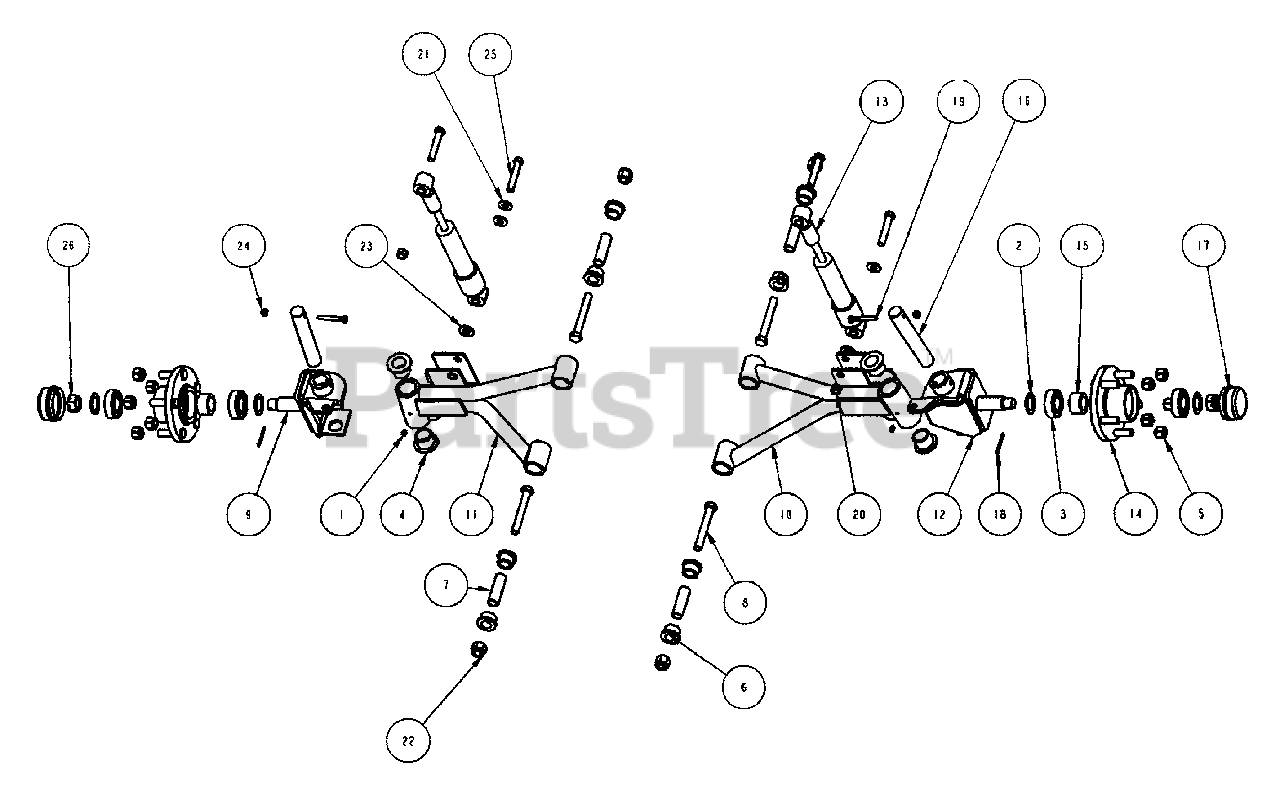

Front Suspension Group Parts Diagram

  • Title

1

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 6

0

2

Snapper 7016561

BUSHING
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 8

0

3

Snapper 7019572

BEARING, BALL, .98" ID, 2.04" OD, .59" Wide
(Superseded to 7019572YP)

Note: 6205-2RS

$30.99

$

In Stock, only 3 left!

0

4

Snapper 7023556

BUSHING, CASTER
(Superseded to 7023556YP)

$8.49

$

In Stock, only 4 left!

0

5

Snapper 7027192

LUG NUT 1/2-20, YZ
(Superseded to 7027192SM)

$2.49

$

Usually ships in 2-12 days

0

6

Snapper 7029258

BUSHING - SUSPENSION
(Superseded to 7029258YP)

$8.49

$

In Stock, Qty 20+

0

7

Snapper 7029263

SLEEVE - SUSPENSION
(Superseded to 7029263YP)

$24.99

$

In Stock, Qty 12

0

8

Snapper 7029355

HHB, 1/2-13 X 3.75
(Superseded to 7029355YP)

$5.99

$

In Stock, only 4 left!

0

9

Snapper 7058419

WELDMENT, LH SPINDLE

$

$

Not available

10

Snapper 7053445

A-ARM ASSEMBLY, RH

Note: Was 58432

$

$

Not available

11

Snapper 7053444

A-ARM ASSEMBLY, LH
(Superseded to 7053444YP)

Note: Was 58484

$164.99

$

Usually ships in 2-12 days

0

12

Snapper 7058485

WELDMENT, RH SPINDLE
(Superseded to 7058485YP)

$179.99

$

Usually ships in 2-12 days

0

13

Snapper 7072614

SHOCK/SPRING ASSEMBLY

$

$

Not available

14

Snapper 7072615

WHEEL HUB, FRONT

$

$

Not available

15

Snapper 7072618

SPACER, FRONT WHEEL
(Superseded to 7072618YP)

$17.99

$

Usually ships in 2-12 days

0

16

Snapper 7072679

ROD, SPINDLE PIVOT
(Superseded to 7072679YP)

$45.99

$

In Stock, only 2 left!

0

17

Snapper 7073120

CASTER SHAFT CAP
(Superseded to 7073120YP)

$17.99

$

Usually ships in 2-12 days

0

18

Snapper 7091809

COTTER PIN, 1/8 X 3/4 YZ
(Superseded to 7091809YP)

Note: Was 90297

$4.49

$

In Stock, only 2 left!

0

19

Snapper 7090505

HHCS, 1/4-20 X 2 GR5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7090970

HTLN, 7/16-20
(Superseded to 7090970YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7090517

FLW, .44 X 1.0 X .08 YZ
(Superseded to 7090517SM)

Note: Was 91300

$4.49

$

In Stock, Qty 8

0

22

Snapper 7091325

NUT, 1/2-13 NYLOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 11

0

23

Snapper 7091587

FLW, .531 X 1.062 X .121 YZ
(Superseded to 704123)

$4.49

$

In Stock, Qty 15

0

24

Snapper 7091603

1/4-20 HEX NYLON INSERT NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7091703

HHCS 7/16-20 X 1.25 YZ
(Superseded to 7091703SM)

$7.99

$

Usually ships in 2-12 days

0

26

Snapper 7092038

HEX NUT, 7/8-14, YZ
(Superseded to 7092038YP)

$6.49

$

Usually ships in 2-12 days

0
