GC 9520KW (7084449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Seat Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

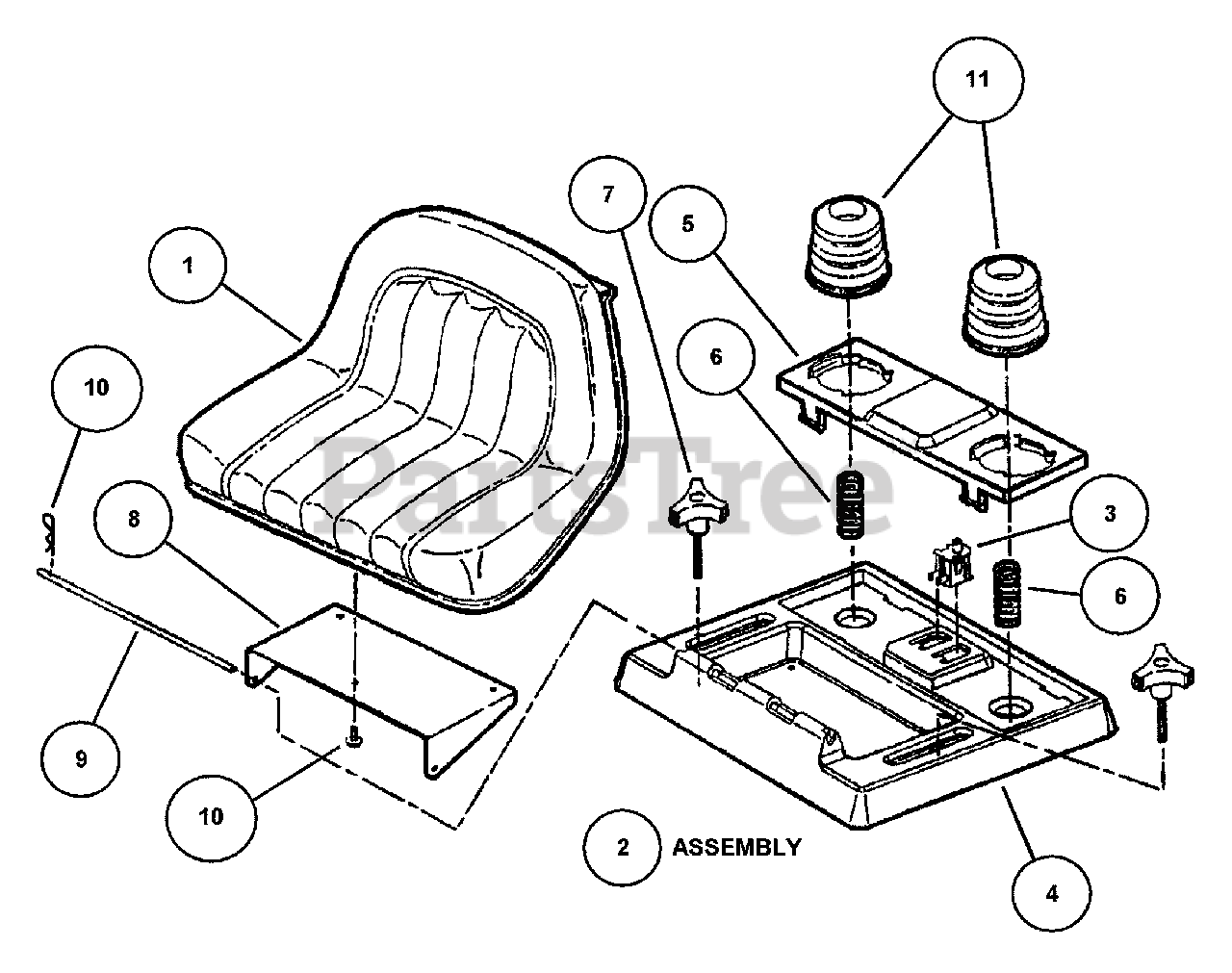

Seat Group Parts Diagram

  • Title

1

Snapper 7044897

SEAT, MILSCO HIGH BACK
(Superseded to 7035271YP)

$374.99

$

Usually ships in 2-12 days

0

2

Snapper 7059215

ASSEMBLY, SEAT SUPPORT
(Superseded to 7059215YP)

Note: Was 53761 (Includes 3 thru 6)

$197.99

$

In Stock, only 2 left!

0

3

Snapper 7023354

SWITCH, SEAT, NC (DRIVER SIDE ONLY)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

4

Snapper 7074204

SUPPORT, SEAT
(Superseded to 7074204YP)

Note: Was 28579

$84.99

$

Usually ships in 2-12 days

0

5

Snapper 7028580

HOLDER, SEAT CUSHION
(Superseded to 7028580YP)

$53.99

$

In Stock, only 4 left!

0

6

Snapper 7073266

SPRING, CUSHION HOLDER
(Superseded to 7073266YP)

$6.49

$

In Stock, Qty 20+

0

7

Snapper 7017875

KNOB, 3 PRONG 5/16-18 X 2" STUD
(Superseded to 7017875YP)

$

$

Not available

8

Snapper 7033318

SUPPORT, SEAT, UPPER

$

$

Not available

9

Snapper 7074452

ROD, SEAT HINGE
(Superseded to 7074452YP)

Note: Was 33435

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 7091503

PIN, HAIR, 3/13 X 1.5 YZ
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7019109

CUSHION, SEAT
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

12

Snapper 7091525

HFLB,5/16-18 X 1/2 GR5
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0
