GC 9520KW (84449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Axle Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

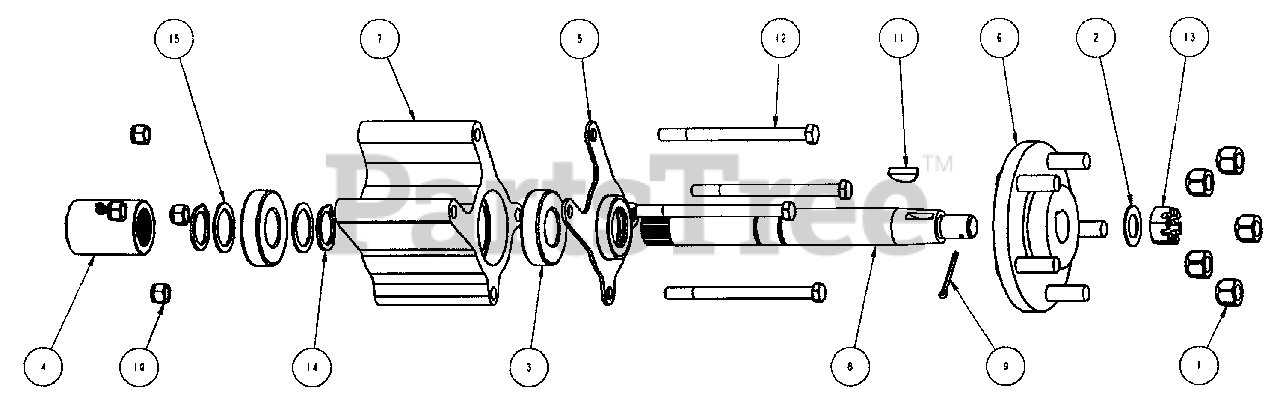

Axle Group Parts Diagram

  • Title

1

Snapper 7027192

LUG NUT 1/2-20, YZ
(Superseded to 7027192SM)

$2.49

$

Usually ships in 2-12 days

0

2

Snapper 7029617

FLW, .77 X 1.31 X.06 YZ
(Superseded to 7029617YP)

$4.49

$

In Stock, only 4 left!

0

3

Snapper 7035602

BEARING 30MM X 62MM
(Superseded to 7035602YP)

$27.99

$

Usually ships in 2-12 days

0

4

Snapper 7058642

ASSY., COUPLING W/LUBE FITTING
(Superseded to 7058642YP)

$188.99

$

Usually ships in 2-12 days

0

--

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 6

0

5

Snapper 7058650

ASSEMBLY, PLATE/SEAL
(Superseded to 7058650YP)

$158.99

$

In Stock, only 1 left!

0

6

Snapper 7072960

REAR WHEEL HUB
(Superseded to 7072960YP)

$132.99

$

Usually ships in 2-12 days

0

7

Snapper 7072965

CVT AXLE SUPPORT
(Superseded to 7072965YP)

$225.99

$

In Stock, only 1 left!

0

8

Snapper 7072975

AXLE, CVT
(Superseded to 7072975YP)

$329.99

$

Usually ships in 2-12 days

0

9

Snapper 7091809

COTTER PIN, 1/8 X 3/4 YZ
(Superseded to 7091809YP)

Note: Was 90297

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7091299

HNYL, 3/8-16, YZ
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7091778

WOODRUFF KEY 808
(Superseded to 7091778YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7092052

H HCS, 3/8-16 X 5.5 - YZ
(Superseded to 7092052YP)

$5.49

$

Usually ships in 2-12 days

0

13

Snapper 7092038

HEX NUT, 7/8-14, YZ
(Superseded to 7092038YP)

$6.49

$

Usually ships in 2-12 days

0

14

Snapper 7092045

SNAP RING, 30MM, HD
(Superseded to 7092045YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7092046

FLAT WASHER, 1 3/16 X 1 5/8 X .06
(Superseded to 7092046YP)

$4.49

$

Usually ships in 2-12 days

0
