GC 9520KW (84449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Dash Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

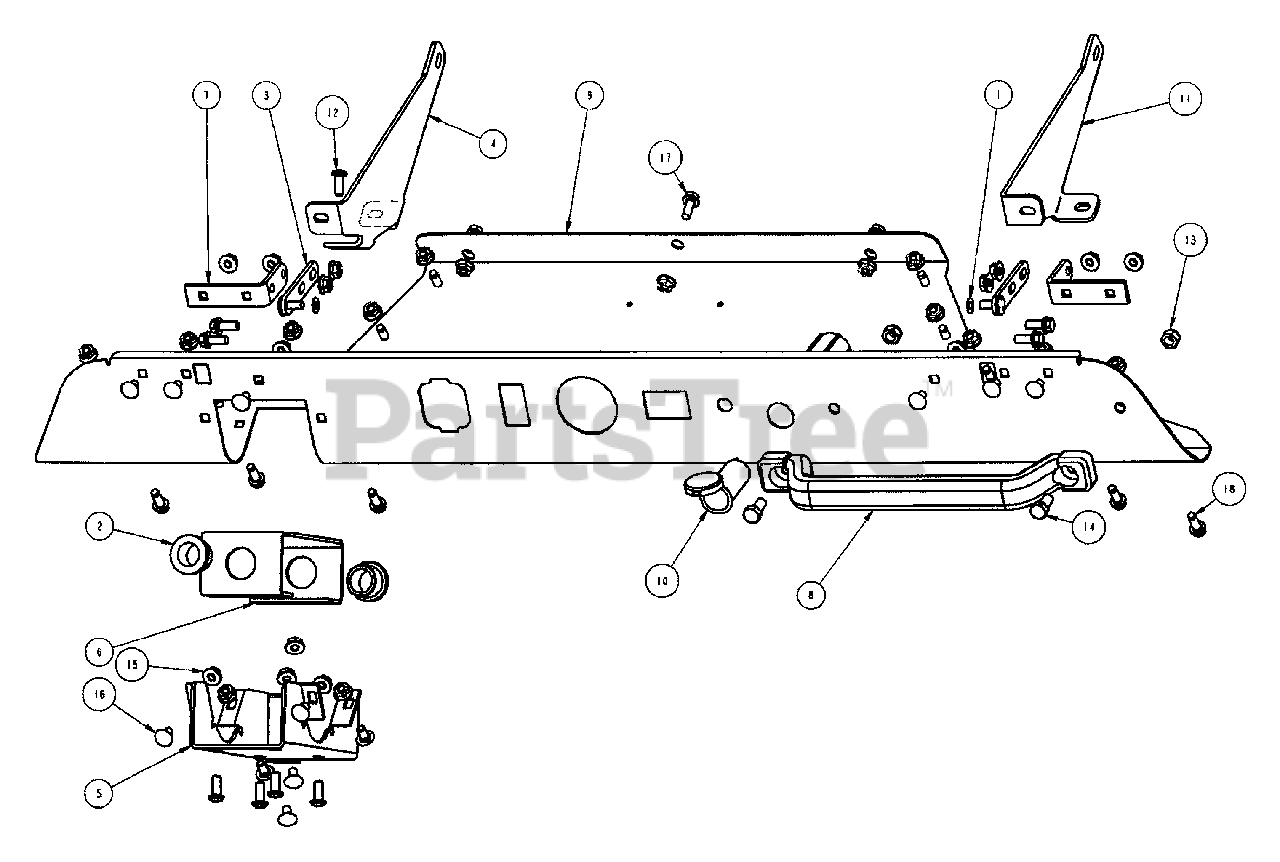

Dash Group Parts Diagram

  • Title

1

Snapper 7012485

BOLT RET, 1/4
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 15

0

2

Snapper 7035496

BEARING, .750 ID
(Superseded to 7035496YP)

$8.99

$

In Stock, only 2 left!

0

3

Snapper 7058649

WELDMENT, HOOD HINGE
(Superseded to 7058649YP)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 7072488

SUPPORT, DASH

$

$

Currently unavailable

5

Snapper 7072489

STEERING SUPPORT, OUTER

$

$

Currently unavailable

6

Snapper 7072490

STEERING, SUPPORT, INNER
(Superseded to 7072490YP)

$61.99

$

Usually ships in 2-12 days

0

7

Snapper 7072527

HINGE LOWER

$8.99

$

Usually ships in 2-12 days

0

8

Snapper 7072957

HANDLE
(Superseded to 7072957YP)

$131.99

$

Usually ships in 2-12 days

0

9

Snapper 7073000

DASH, CVT UTILITY VEHICLE
(Superseded to 7073000YP)

$88.99

$

Usually ships in 2-12 days

0

10

Snapper 7073090

12 VOLT DC POWER OUTLET
(Superseded to 7073090SM)

$23.99

$

Usually ships in 2-12 days

0

11

Snapper 7073394

DASH BRACE, RH

$

$

Currently unavailable

12

Snapper 7090999

PHST, 1/4-20 X 5/8 TORX
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7091298

HEX NYLON INSERT NUT 5/16-18 YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

14

Snapper 7091318

HHCS, 5/16-18 X 3/4 YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

15

Snapper 7091584

HFLN, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7091604

RHSSNB, 1/4-20 X 1/2 YZ
(Superseded to 703978)

$3.99

$

In Stock, only 3 left!

0

17

Snapper 7091787

HFLS, 1/4-20 X 5/8
(Superseded to 7091787SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7091819

HWST, 1/4-20 X 1/2 YZ
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0
