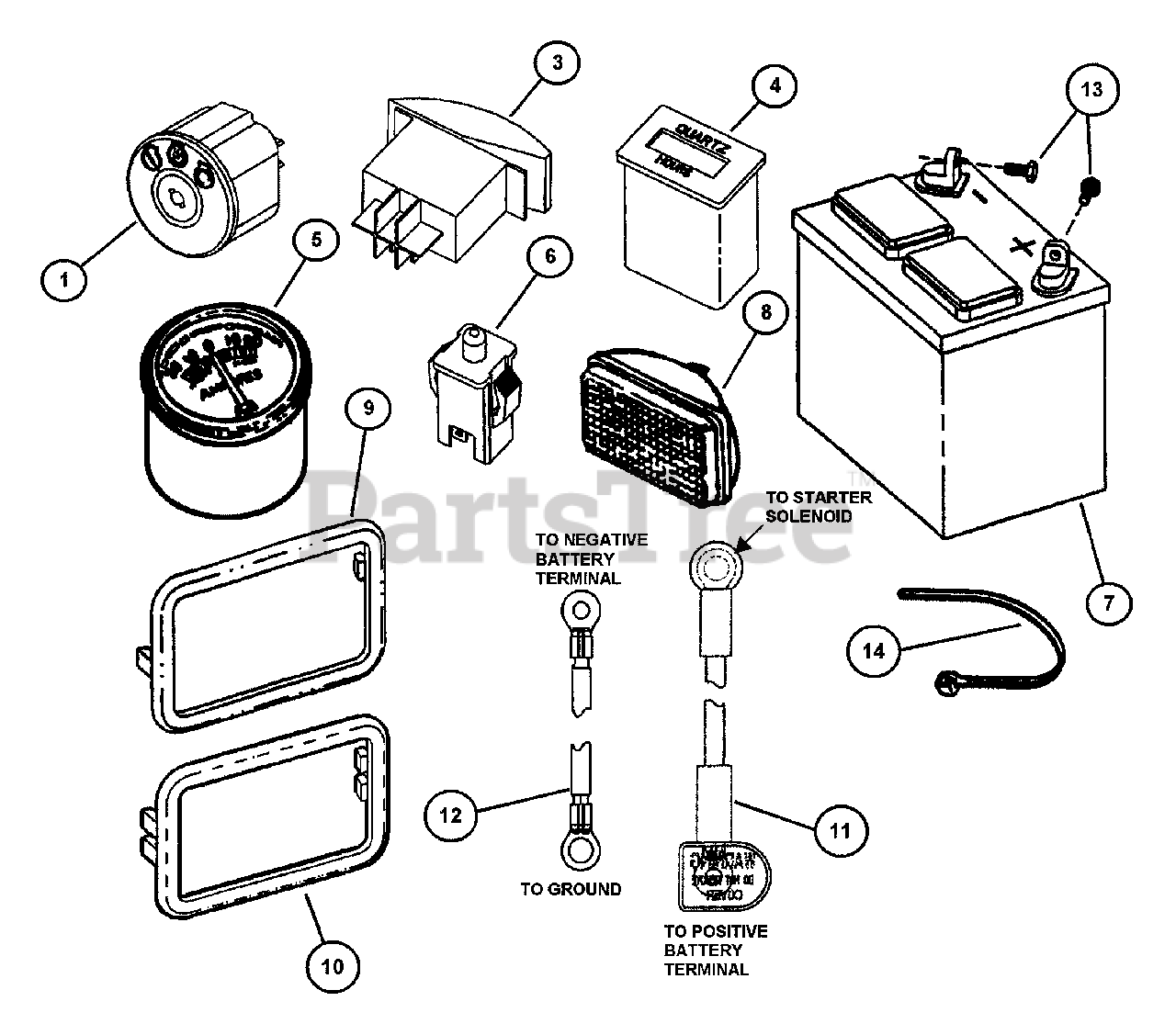

GC 9520KW (84449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Electrical Group (Part 2) Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

Electrical Group (Part 2) Parts Diagram

  • Title

1

Snapper 7072684

SWITCH, IGNITION
(Superseded to 7072684YP)

$31.99

$

In Stock, only 1 left!

0

Snapper 7072936

WIRING HARNESS, CVT (not shown)
(Superseded to 7072936YP)

Note: (See "Electrical Group (Part 1)" illustration)

$245.99

$

Usually ships in 2-12 days

0

3

Snapper 7035659

SWITCH, LIGHTS
(Superseded to 7035659YP)

$18.99

$

In Stock, only 1 left!

0

4

Snapper 7045281

HOURMETER, HOBBS SNAP-IN

$

$

Not available

5

Snapper 7019547

AMMETER AND CLAMP ASM
(Superseded to 7019547YP)

$90.99

$

Usually ships in 2-12 days

0

6

Snapper 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

7

Snapper 7035610

BATTERY, 11 PLATE 375CCA

$

$

Not available

8

Snapper 7018829

HEAD LIGHT
(Superseded to 7018829YP)

$59.99

$

Usually ships in 2-12 days

0

9

Snapper 7035550

BEZEL, Headlight

$

$

Not available

10

Snapper 7035660

BEZEL, HEADLIGHT

$

$

Not available

11

Snapper 7035607

CABLE, POSITIVE BATTERY (47" long)
(Superseded to 7035607YP)

$34.99

$

Usually ships in 2-12 days

0

12

Snapper 7073962

CABLE, NEGATIVE BATTERY (23" long)
(Superseded to 7073962YP)

$9.49

$

Usually ships in 2-12 days

0

13

Snapper 7091286

HWST,10-24X.50 SEMS
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 17

0

14

Snapper 7024649

WIRE TIE, 11 INCH STD BLK NYLON
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

15

Snapper 7073406

KEY SET, IGNITION
(Superseded to 1717163SM)

Note: Was 73331 (Not Shown)

$8.99

$

In Stock, Qty 13

0

Snapper 7023354

SWITCH, SEAT, NC (not shown)
(Superseded to 7023354YP)

Note: (See item #3 in the "Seat Group" illustration and parts list)

$12.99

$

Usually ships in 2-12 days

0
