GC 9520KW (84449) - Snapper Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki Footrest Group Parts Diagram

Grounds Cruiser Utility Vehicle, 9.5hp Kawasaki

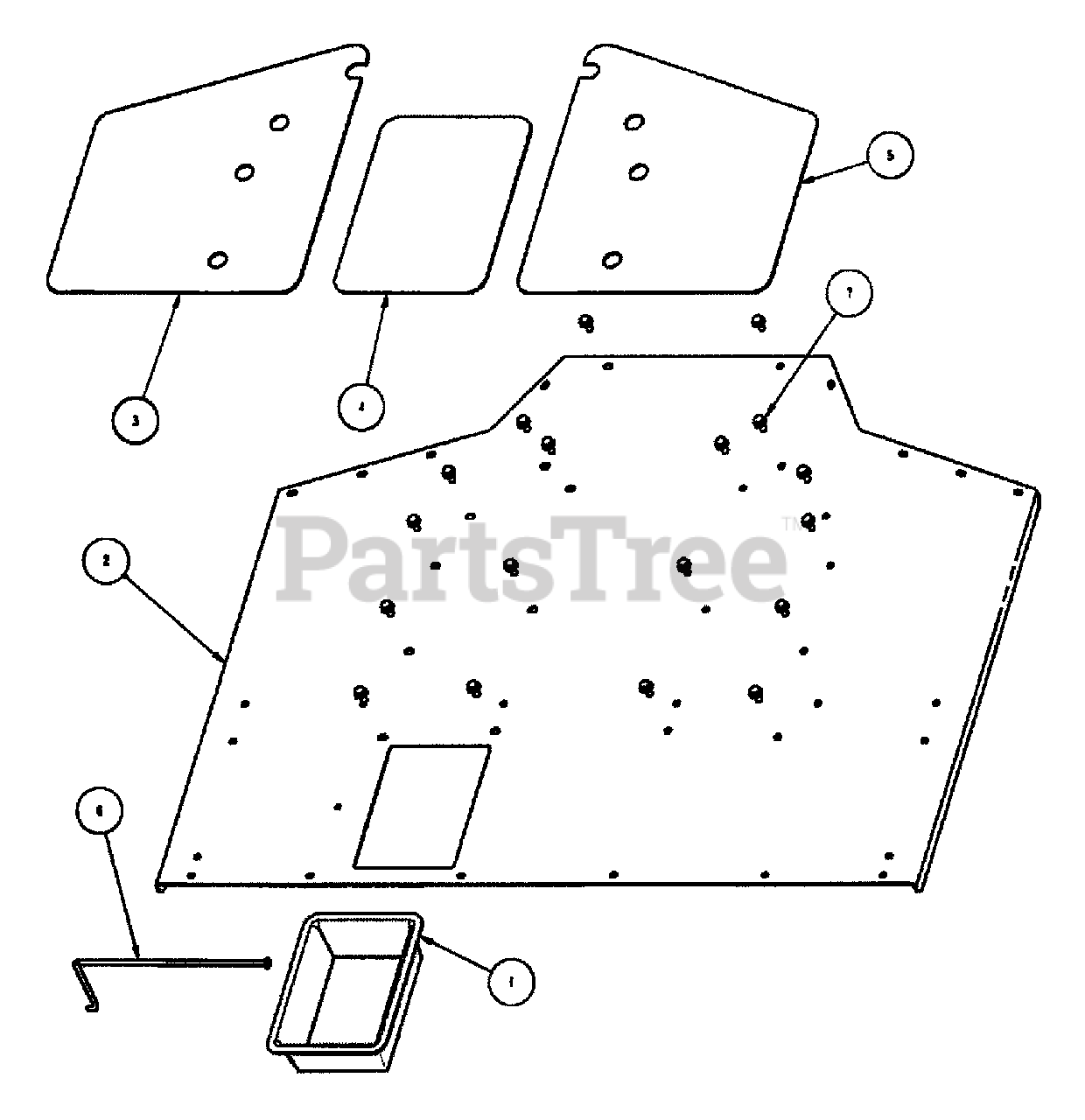

Footrest Group Parts Diagram

  • Title

1

Snapper 7017853

TRAY, BATTERY
(Superseded to 7017853YP)

$24.99

$

Usually ships in 2-12 days

0

2

Snapper 7072466

FLOORPAN
(Superseded to 7072466YP)

$307.99

$

Usually ships in 2-12 days

0

3

Snapper 7072525

FOOTPAD,LH

$

$

Currently unavailable

4

Snapper 7072526

FOOTPAD,CENTER

$

$

Currently unavailable

5

Snapper 7072617

FOOTPAD,RH

$

$

Currently unavailable

6

Snapper 7072629

BATTERY RETAINER
(Superseded to 7072629YP)

$14.99

$

Usually ships in 2-12 days

0

7

Snapper 7091541

HFLB, 5/16-18 X .75 - YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0
