GC-CS (06335) - Scag Clam Shell Grass Catcher (SN: P3600001 - P3699999) GC-CS STC HOPPER SUPPORT COMPONENTS Parts Diagram

Clam Shell Grass Catcher

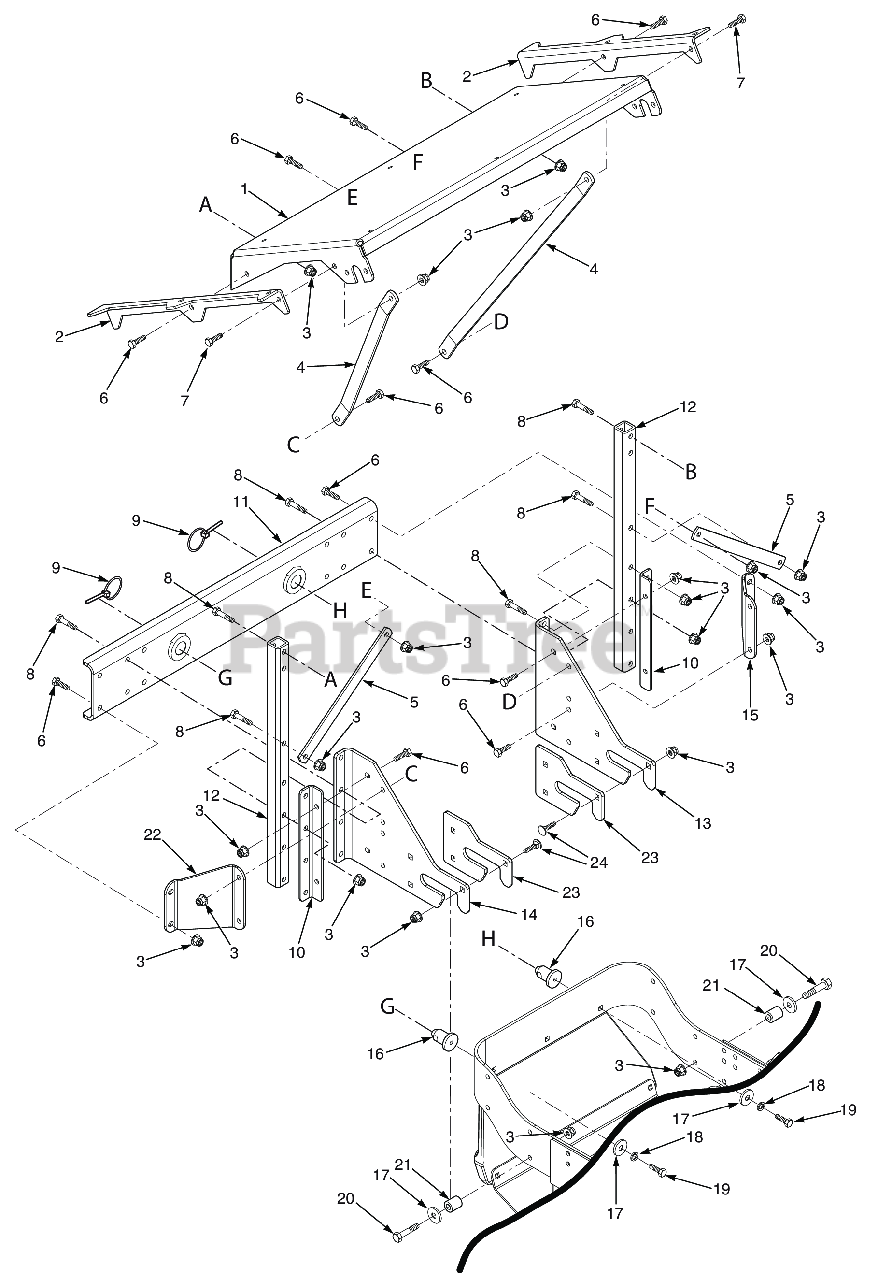

GC-CS STC HOPPER SUPPORT COMPONENTS Parts Diagram

  • Title

1

Scag 426019

Support Frame, Hopper

$

$

Not available

2

Scag 426020

Bracket, Hopper Support

$39.99

$

Usually ships in 2-12 days

0

3

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 426022

Brace, Stiffener

$17.99

$

Usually ships in 2-12 days

0

5

Scag 422386

Brace, Engine Mounting

$13.99

$

Usually ships in 2-12 days

0

6

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

7

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 15

0

8

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04066-04

Quick Pin, 5/16" Dia.

$7.49

$

In Stock, only 1 left!

0

10

Scag 426012

Mounting Bracket, Tube

$20.99

$

Usually ships in 2-12 days

0

11

Scag 452382

Mounting Bracket Weldment

$

$

Not available

12

Scag 426015

Tube, Upright

$60.99

$

Usually ships in 2-12 days

0

13

Scag 426011

Mounting Bracket, GC R.H.

$89.99

$

Usually ships in 2-12 days

0

14

Scag 426010

Mounting Bracket, GC L.H.

$57.99

$

Usually ships in 2-12 days

0

15

Scag 426017

Angle Bracket, GC

$78.99

$

Usually ships in 2-12 days

0

16

Scag 43884

Pin, GC Locator

$30.99

$

In Stock, only 2 left!

0

17

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

18

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 15

0

20

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

21

Scag 43886

Spacer

$7.99

$

In Stock, only 2 left!

0

22

Scag 426016

Angle Bracket, GC

$78.99

$

Usually ships in 2-12 days

0

23

Scag 426024

Wear Plate, GC

$22.99

$

Usually ships in 2-12 days

0

24

Scag 04003-22

Carriage Bolt, 3/8-16 x 1-1/4"

$1.99

$

In Stock, Qty 7

0
