Scag GC-CS (06335) - Scag Clam Shell Grass Catcher (SN: P3600001 - P3699999) STT-61" / STTII-61" & SCZ-61" BLOWER HOUSING ASSEMBLY Parts Lookup with Diagrams

1

Scag 04067-07

Pin, Ring 1/2 x 2-1/4"

$10.99

$

Usually ships in 2-12 days

2

Scag 481547

Lanyard, Deck Height Pin

$16.99

$

In Stock, only 1 left!

3

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

4

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 17

5

Scag 483392

Decal, Blower

$3.49

$

Usually ships in 2-12 days

6

Scag 483393

Decal, Rotating Blower

$4.99

$

Usually ships in 2-12 days

7

Scag 481428

Grip, Deck Latch Lever

$4.49

$

Usually ships in 2-12 days

8

Scag 483223

Cap, Square Vinyl

$1.99

$

Usually ships in 2-12 days

9

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, only 3 left!

10

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

11

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

12

Scag 43277

SPACER, J-PULL ROD

$6.49

$

Usually ships in 2-12 days

13

Scag 483209

Pulley, Idler 4" Dia. - 61" & 72"

$53.99

$

Usually ships in 2-12 days

14

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

15

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

16

Scag 424361

Plate, Catcher Mounting

$45.99

$

Usually ships in 2-12 days

17

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 11

18

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$1.49

$

In Stock, Qty 20+

19

Scag 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2" Full Thread

$2.49

$

In Stock, only 1 left!

20

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

21

Scag 461928

Idler Arm Assembly, GC-STT 61"

$94.99

$

Usually ships in 2-12 days

22

Scag 483182

Belt, GC-STC-61V / STCII-61V

$45.99

$

In Stock, only 2 left!

23

Scag 483189

Pulley, 3-1/2" O.D., GC-STT 52"

$48.99

$

In Stock, only 1 left!

24

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

25

Scag 43575

Pivot, Idler - 61" & 72"

$26.99

$

In Stock, only 1 left!

26

Scag 483402

Decal, Warning - Belt Cover

$1.49

$

In Stock, only 2 left!

27

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

28

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

29

Scag 483391

Decal, Danger

$3.49

$

Usually ships in 2-12 days

30

Scag 461931

Blower Housing Weldment w/Decals

$380.99

$

Usually ships in 2-12 days

31

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 15

32

Scag 04063-06

KEY 1/4 X 1/4 X 1 1/2"(FOR 1" CRANKSHAFT

$1.49

$

In Stock, Qty 8

33

Scag 461796

Fan Weldment

$215.99

$

In Stock, only 1 left!

34

Scag 483034

Bearing Assembly

$39.99

$

In Stock, only 2 left!

35

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

36

Scag 461930

Blower Housing Assembly, GC-STT

$671.99

$

Usually ships in 2-12 days

37

Scag 421319

COVER, BLOWER HOUSING

$51.99

$

In Stock, only 1 left!

38

Scag 48136-02

Clamp, 8-5/8" Max Dia. (61")

$10.99

$

In Stock, only 2 left!

39

Scag 462538

Hose, 8.00" Dia. x 68" Long

$302.99

$

In Stock, only 1 left!

40

Scag 482298

Pulley, 4-3/4" O.D. - 1" Bore

$63.99

$

In Stock, only 1 left!

41

Scag 04012-04

Setscrew, Hex Socket Knurl Cup Pt. 5/16 - 18 (nylock)

$0.99

$

In Stock, Qty 12

42

Scag 461932

Frame, Blower Mount

$215.99

$

Usually ships in 2-12 days

43

Scag 481522

Spring, Helper (61" Cutter Deck Only)

$33.99

$

In Stock, only 3 left!

44

Scag 43212

Spacer, Deck Assist

$4.49

$

Usually ships in 2-12 days

45

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

46

Scag 461723

Adapter, Blower GC-STC,

$169.99

$

Usually ships in 2-12 days

47

Scag 451821

Receiver Weldment, Mount Post - 61"

$45.99

$

Usually ships in 2-12 days

48

Scag 04062-04

Hair Pin Cotter, .177" x 3-1/4"

$1.99

$

In Stock, Qty 20+

49

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, Qty 8

50

Scag 04066-04

Quick Pin, 5/16" Dia.

$7.49

$

In Stock, only 1 left!

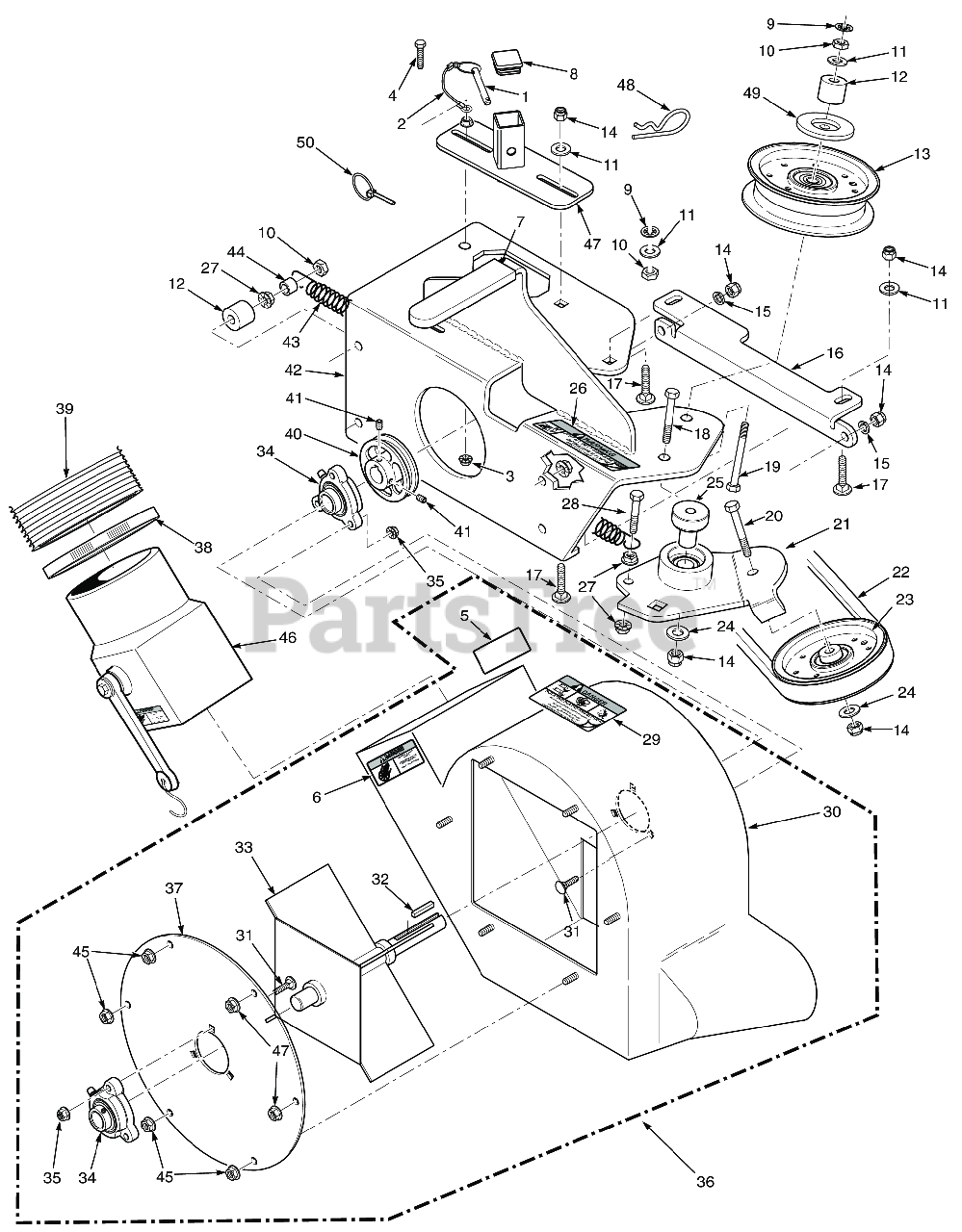

GC-CS (06335) - Scag Clam Shell Grass Catcher (SN: P3600001 - P3699999) STT-61" / STTII-61" & SCZ-61" BLOWER HOUSING ASSEMBLY Parts Diagram

STT-61" / STTII-61" & SCZ-61" BLOWER HOUSING ASSEMBLY Parts Diagram
