GC-SSZ-48 - Scag Grass Catcher (SN: 3660001 - 3669999) Deck/Counter Balance Components (Part 1) Parts Diagram

Grass Catcher

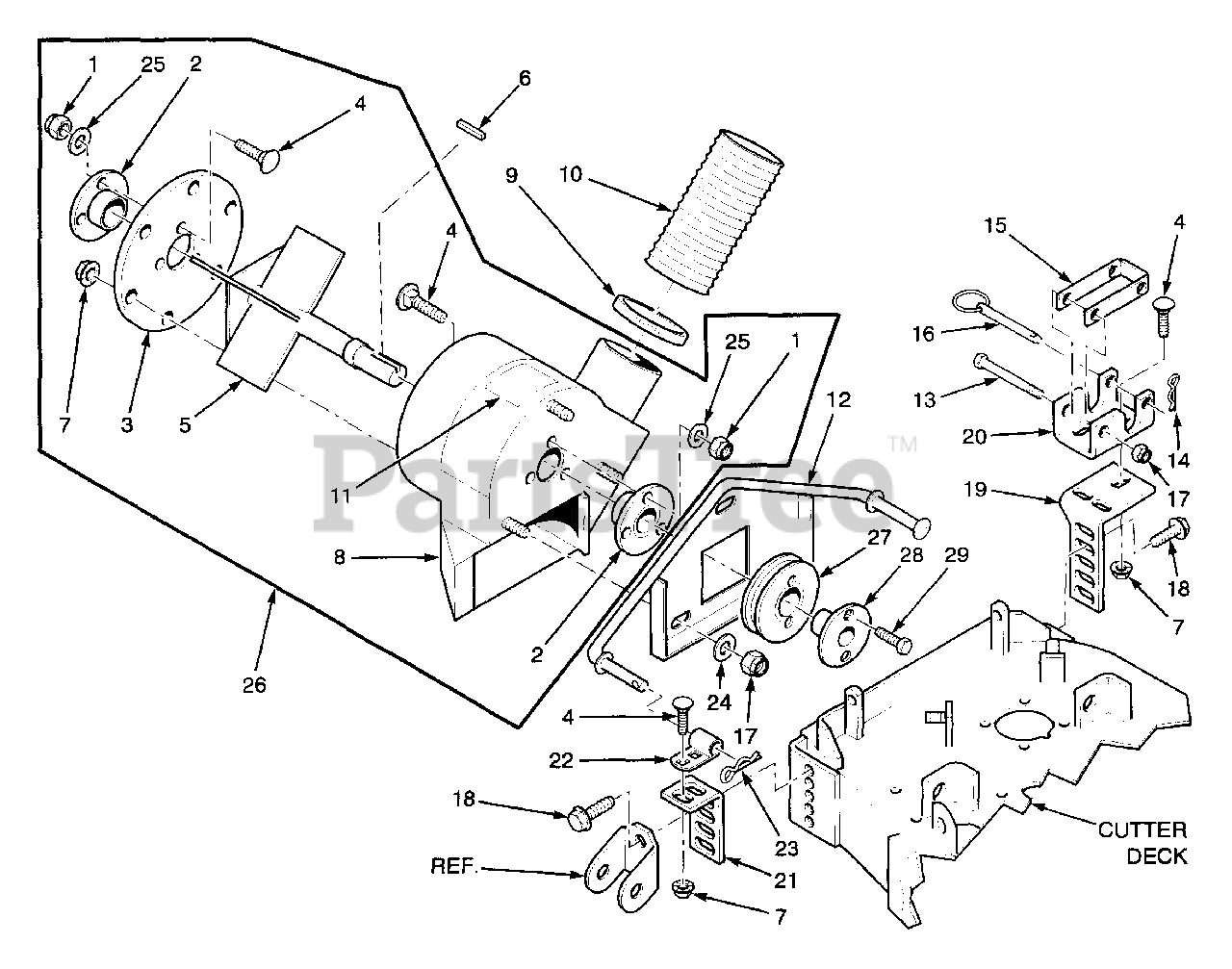

Deck/Counter Balance Components (Part 1) Parts Diagram

  • Title

1

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

2

Scag 48915

Bearing Assembly

$52.99

$

Usually ships in 2-12 days

0

3

Scag 421319

Cover, Blower Housing

$51.99

$

In Stock, only 1 left!

0

4

Scag 04003-12

Carriage Bolt, 5/16-18 x .75

$0.99

$

In Stock, Qty 15

0

5

Scag 45565

Fan Weldment

$456.99

$

Usually ships in 2-12 days

0

6

Scag 04063-06

Key, .25 x .25 x 1.50

$1.49

$

In Stock, Qty 8

0

7

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

8

Scag 46627

Blower Housing Weldment w/Decals

$

$

Not available

9

Scag 48136-01

Clamp, Hose

$30.99

$

Usually ships in 2-12 days

0

10

Scag 48135-07

Hose, 6" x 48"

$146.99

$

Usually ships in 2-12 days

0

11

Scag 48236

Decal, Danger
(Superseded to 483391)

$3.49

$

Usually ships in 2-12 days

0

12

Scag 45583

Blower Mounting Weldment

$

$

Not available

13

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4"

$1.49

$

In Stock, only 4 left!

0

14

Scag 04062-01

Hair Pin, .094 dia. x 1.62

$0.99

$

In Stock, Qty 20+

0

15

Scag 421484

Latch

$68.99

$

Usually ships in 2-12 days

0

16

Scag 04067-04

Ring Pin

$15.99

$

Usually ships in 2-12 days

0

17

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04017-27

Capscrew, Serr. Flange 3/8-16 x 1

$1.49

$

In Stock, Qty 20+

0

19

Scag 421312

Mounting Bracket, Rear

$

$

Not available

20

Scag 421483

Latch Plate

$

$

Not available

21

Scag 421495

Mounting Bracket, Front

$

$

Not available

22

Scag 45582

Mounting Weldment, Front

$

$

Not available

23

Scag 04062-03

Hair Pin, .148 dia. x 2.75

$1.49

$

Usually ships in 2-12 days

0

24

Scag 04041-07

Flat Washer, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

25

04040 04

Flat Washer, 5/16 (.344 x .688 x .065)

$

$

Not available

26

Scag 46625

Blower Housing Assembly

$

$

Not available

27

Scag 48924

Pulley, 5.75 O.D.
(Superseded to 482744)

$30.99

$

In Stock, Qty 8

0

28

Scag 48141

Tapered Hub, 1.00 Bore

$30.99

$

In Stock, Qty 6

0

29

Scag 04001-01

Bolt, Hex Head .25-20 x .75

$0.99

$

In Stock, Qty 19

0
