GC-SSZ-48 - Scag Grass Catcher (SN: 3660001 - 3669999) Deck/Counter Balance Components (Part 2) Parts Diagram

Grass Catcher

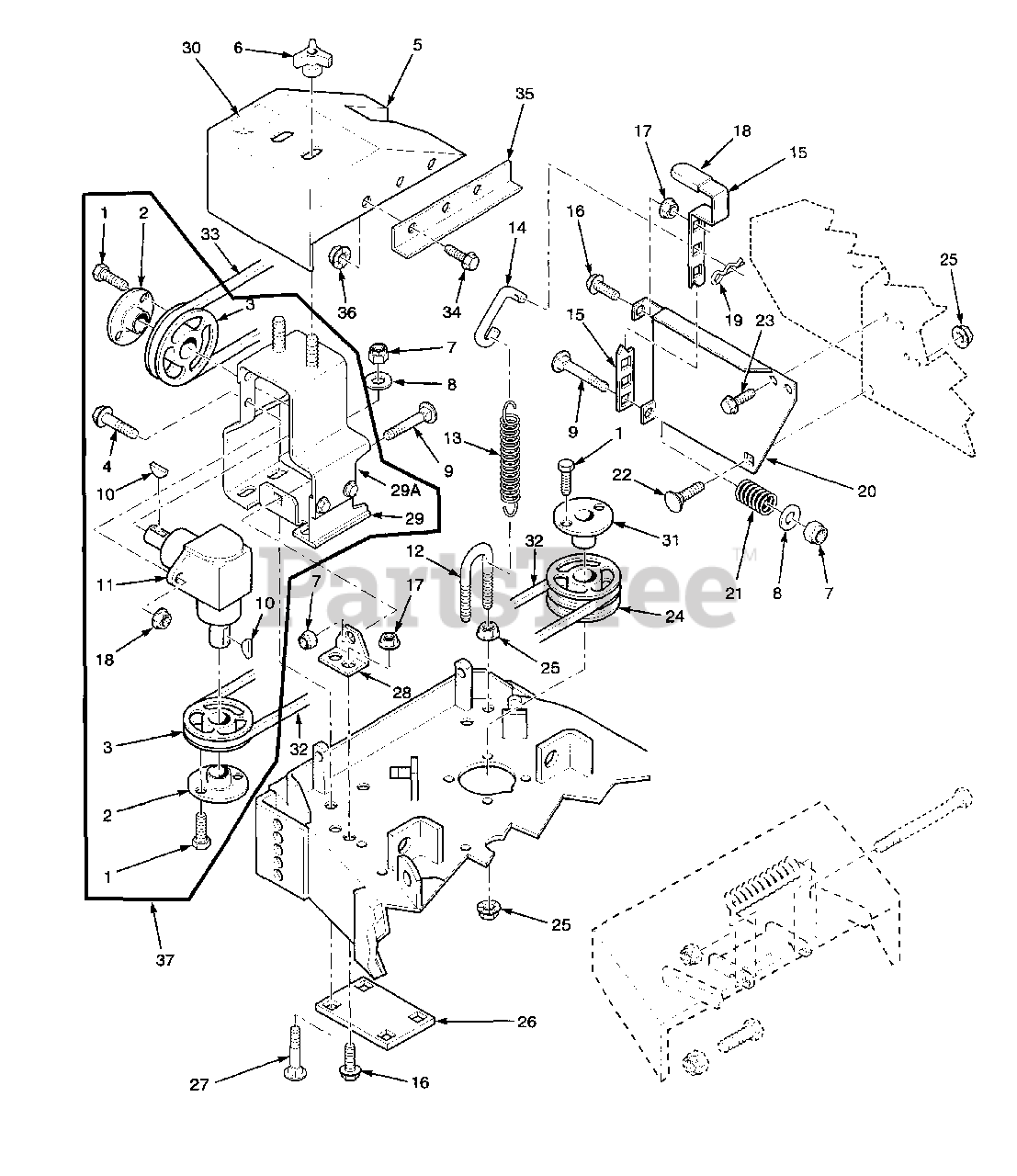

Deck/Counter Balance Components (Part 2) Parts Diagram

  • Title

1

Scag 04001-01

Bolt, Hex Head 1/4-20 x .75

$0.99

$

In Stock, Qty 19

0

2

Scag 48248

Tapered Hub, .875 Bore

$29.99

$

Usually ships in 2-12 days

0

3

Scag 48924

Pulley, Tapered Bore 5.75 O.D.
(Superseded to 482744)

$30.99

$

In Stock, Qty 8

0

4

Scag 04017-28

Capscrew, Serr. Flange 3/8-16 x 1.25

$1.49

$

In Stock, Qty 8

0

5

Scag 46757

Belt Cover, w/Decal

$

$

Not available

6

Scag 04029-03

Wingnut, Plastic 3/8-16 x .875

$2.49

$

In Stock, Qty 20+

0

7

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04041-07

Flat Washer, 3/8 (.375 x 2.00 x .060)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04003-03

Carriage Bolt, 3/8-16 x 2.00

$1.49

$

In Stock, Qty 5

0

10

Scag 04063-07

Key, Woodruff #9 3/16 x .75

$0.99

$

In Stock, Qty 15

0

11

Scag 48919

Gear Box, 90 Degree Drive

$

$

Not available

12

Scag 04100-01

U-Bolt, 5/16-18 x 2.19

$5.49

$

In Stock, Qty 7

0

13

Scag 48755

Spring,Counter Balance

$10.99

$

In Stock, Qty 6

0

14

Scag 44093

Rod, Counter Balance

$

$

Not available

15

Scag 421346

Lever, Counter Balance

$

$

Not available

16

Scag 04017-26

Capscrew, Serr. Flange 3/8-16 x .75

$1.49

$

Usually ships in 2-12 days

0

17

Scag 04019-04

Nut, Serr. Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 48215

Grip, Shift Lever

$6.99

$

Usually ships in 2-12 days

0

19

Scag 04062-01

Hair Pin, .094 x 1.62

$0.99

$

In Stock, Qty 20+

0

20

Scag 421345

Mounting Bracket, Counter Balance

$

$

Not available

21

Scag 48050

Spring, Compression

$33.99

$

Usually ships in 2-12 days

0

22

Scag 04003-04

Carriage Bolt, 5/16-18 x 1.00

$0.99

$

In Stock, only 4 left!

0

23

Scag 04017-16

Capscrew, 5/16-18 x .75

$0.99

$

In Stock, Qty 10

0

24

Scag 48923

Pulley, Double Groove 5.75 O.D.

$113.99

$

In Stock, only 1 left!

0

25

Scag 04019-03

Nut, Serr. Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

26

Scag 421325

Reinforcement Plate, Gear Box

$

$

Not available

27

Scag 04003-11

Carriage Bolt, 3/8-16 x 1.25

$0.99

$

In Stock, Qty 7

0

28

Scag 421324

Anchor Bracket, Tension Bolt

$

$

Not available

29

Scag 45615

Support Weldment, Gearbox-upper

$

$

Not available

29A

Scag 45616

Support Weldment, Gearbox-lower

$

$

Not available

30

Scag 481040

Decal, Warning
(Superseded to 483406)

$2.49

$

In Stock, Qty 17

0

31

Scag 48141

Tapered Hub, 1.00 Bore

$30.99

$

In Stock, Qty 6

0

32

Scag 48913

Belt, Gearbox Drive

$

$

Not available

33

Scag 48914

Belt, Blower Drive

$32.99

$

Usually ships in 2-12 days

0

34

Scag 04017-04

Capscrew, 1/4-20 x .50 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

35

Scag 421618

Skirt, Belt Cover

$15.99

$

Usually ships in 2-12 days

0

36

Scag 04019-02

Nut, 1/4-20 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

37

Scag 46716

Gearbox Assembly

$

$

Not available
