GC-SSZ - Scag Grass Catcher (SN: 0030000 - 0039999) DECK/BLOWER HOUSING COMPONENTS Parts Diagram

Grass Catcher

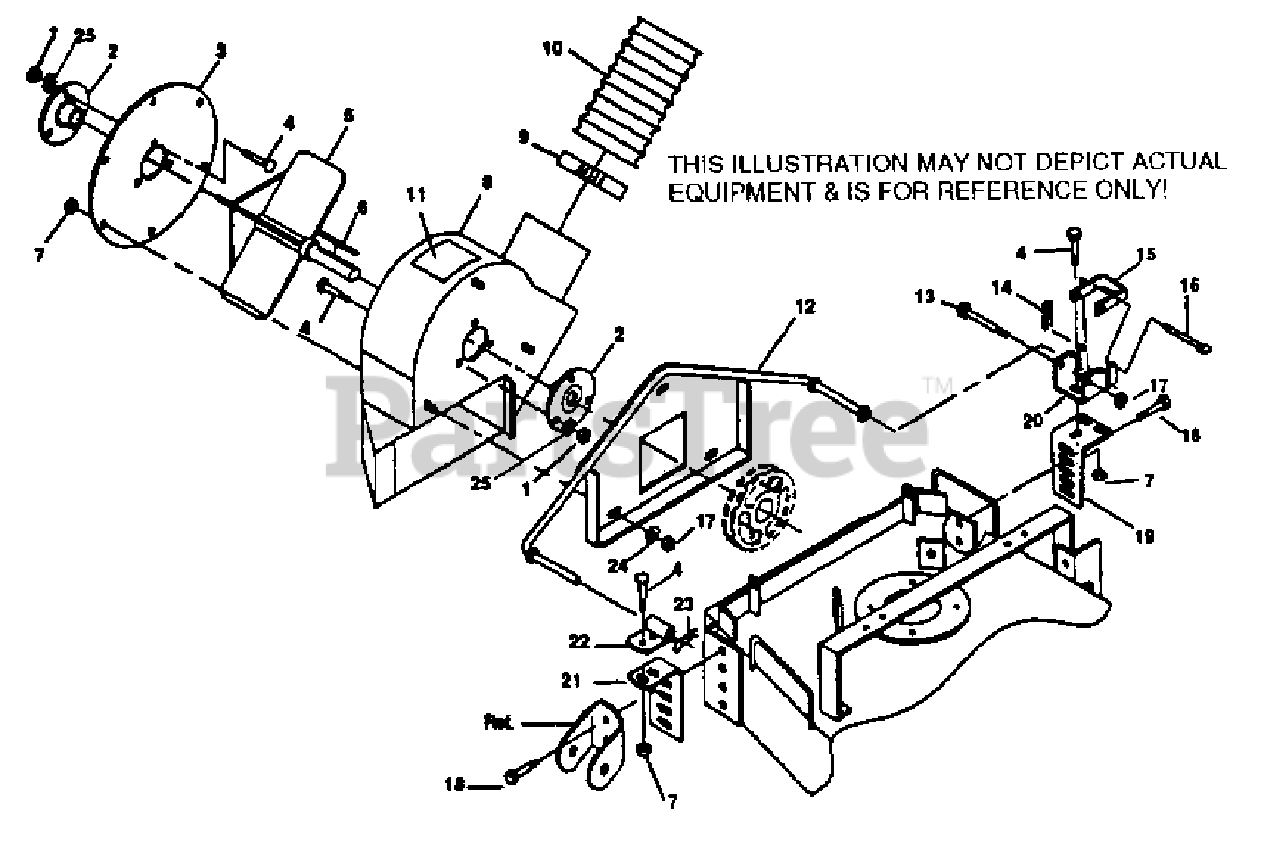

DECK/BLOWER HOUSING COMPONENTS Parts Diagram

  • Title

1

Scag 04021-10

NUT, ELASTIC STOP 5/16-18

$0.99

$

In Stock, Qty 20+

0

2

Scag 48915

BEARING ASSEMBLY

$52.99

$

Usually ships in 2-12 days

0

3

Scag 421319

COVER BLOWER HOUSING

$51.99

$

In Stock, only 1 left!

0

4

CARRIAGE BOLT 5/16-18 X 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

5

Scag 45491

FAN WELDMENT
(Superseded to 461795)

$215.99

$

Usually ships in 2-12 days

0

6

Scag 04063-06

KEY

$1.49

$

In Stock, Qty 8

0

7

Scag 04019-03

NUT, SERRATED FLANGE 5/16-18

$0.99

$

In Stock, Qty 16

0

8

Scag 46564

BLOWER HOUSING WLDMT. W/DECAL

$

$

Not available

9

Scag 48136-01

CLAMP, HOSE

$30.99

$

Usually ships in 2-12 days

0

10

Scag 48135-07

HOSE, 6" X 48"

$146.99

$

Usually ships in 2-12 days

0

11

Scag 48236

DECAL, DANGER
(Superseded to 483391)

$3.49

$

Usually ships in 2-12 days

0

12

Scag 45496

BLOWER MOUNTING WELDMENT

$

$

Not available

13

BOLT, HEX HEAD 3/8-16 X 4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

Scag 04062-01

HAIR PIN, 3/32 DIA. X 1.62"

$0.99

$

In Stock, Qty 20+

0

15

Scag 421314

LATCH
(Superseded to 421484)

$68.99

$

Usually ships in 2-12 days

0

16

Scag 04067-04

RING PIN

$15.99

$

Usually ships in 2-12 days

0

17

Scag 04021-09

NUT, ELASTIC STOP 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04017-27

CAPSCREW, SERR. FLANGE 3/8-16 X 1"

$1.49

$

In Stock, Qty 20+

0

19

Scag 421312

MOUNTING BRACKET, REAR

$

$

Not available

20

Scag 421313

LATCH PLATE

$

$

Not available

21

Scag 421310

MOUNTING BRACKET, FRONT

$

$

Not available

22

Scag 45493

MOUNTING WELDMENT, FRONT
(Superseded to 45582)

$

$

Not available

23

Scag 04062-03

HAIR PIN, .148 DIA. X 2-3/4"

$1.49

$

Usually ships in 2-12 days

0

24

Scag 04041-07

FLAT WASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

25

FLAT WASHER, 5/16(.344 X .688 X .065)

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
