GC-STC-61V - Scag Grass Catcher (SN: J2500001 - J2599999) GC-STC Bag Support Components (Lower) Parts Diagram

Grass Catcher

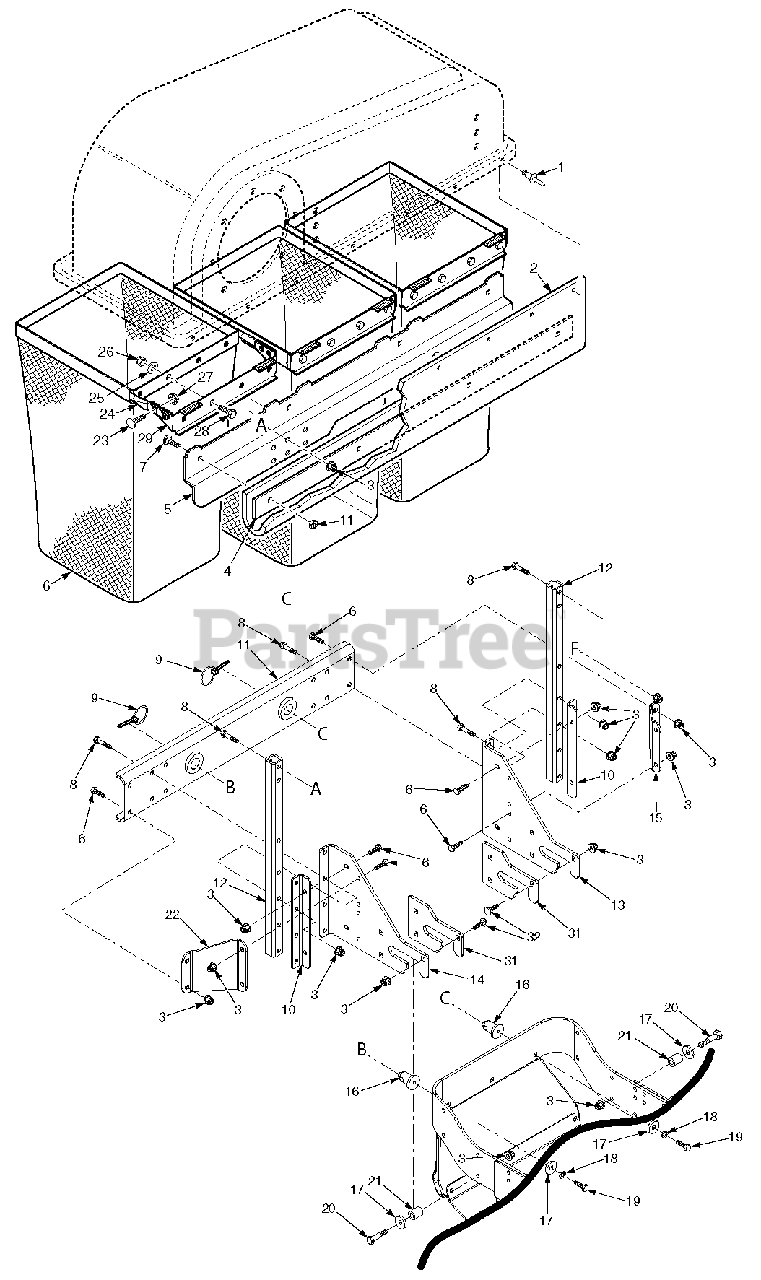

GC-STC Bag Support Components (Lower) Parts Diagram

  • Title

1

Scag 04090-02

Pop Rivet, 3/16 x .652

$0.99

$

In Stock, only 3 left!

0

2

Scag 482321

Seal, Hood

$24.99

$

Usually ships in 2-12 days

0

3

Scag 04117-02

Nut, Elastic Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 423312

Retainer, Seal

$24.99

$

In Stock, only 3 left!

0

5

Scag 452385

Support, Bag Frame
(Superseded to 453120)

$274.99

$

Usually ships in 2-12 days

0

6

Scag 482569

Bag Assembly
(Superseded to 462968)

$155.99

$

Usually ships in 2-12 days

0

7

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04066-04

Quick Pin

$7.49

$

In Stock, only 1 left!

0

10

Scag 426012

Mounting Bracket, Tube

$20.99

$

Usually ships in 2-12 days

0

11

Scag 452382

Mounting Bracket Weldment

$

$

Not available

12

Scag 426015

Tube, Upright

$60.99

$

Usually ships in 2-12 days

0

13

Scag 426011

Mounting Bracket, GC R.H.

$89.99

$

Usually ships in 2-12 days

0

14

Scag 426010

Mounting Bracket, GC L.H.

$57.99

$

Usually ships in 2-12 days

0

15

Scag 426017

Angle Bracket, GC

$78.99

$

Usually ships in 2-12 days

0

16

Scag 43884

Pin, GC Locator

$30.99

$

In Stock, only 2 left!

0

17

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Ga.

$1.99

$

In Stock, Qty 20+

0

18

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

20

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

21

Scag 43886

Spacer

$7.99

$

In Stock, only 2 left!

0

22

Scag 426016

Angle Bracket, GC

$78.99

$

Usually ships in 2-12 days

0

23

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 15

0

24

Scag 423197

Tube, Bag Support

$90.99

$

In Stock, only 1 left!

0

25

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 9

0

26

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 16

0

28

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 423198

Mount, Bag Frame Tube

$47.99

$

In Stock, only 2 left!

0

30

Scag 04021-02

Lock Nut, 1/4-20 Center Lock

$0.99

$

In Stock, Qty 6

0

31

Scag 426024

Wear Plate, GC

$22.99

$

Usually ships in 2-12 days

0

32

Scag 04003-22

Bolt, Carriage 3/8-16 x 1-1/4"

$1.99

$

In Stock, Qty 7

0
