GC-STC (9015) - Scag Grass Catcher Blower Mounting Components Parts Diagram

Grass Catcher

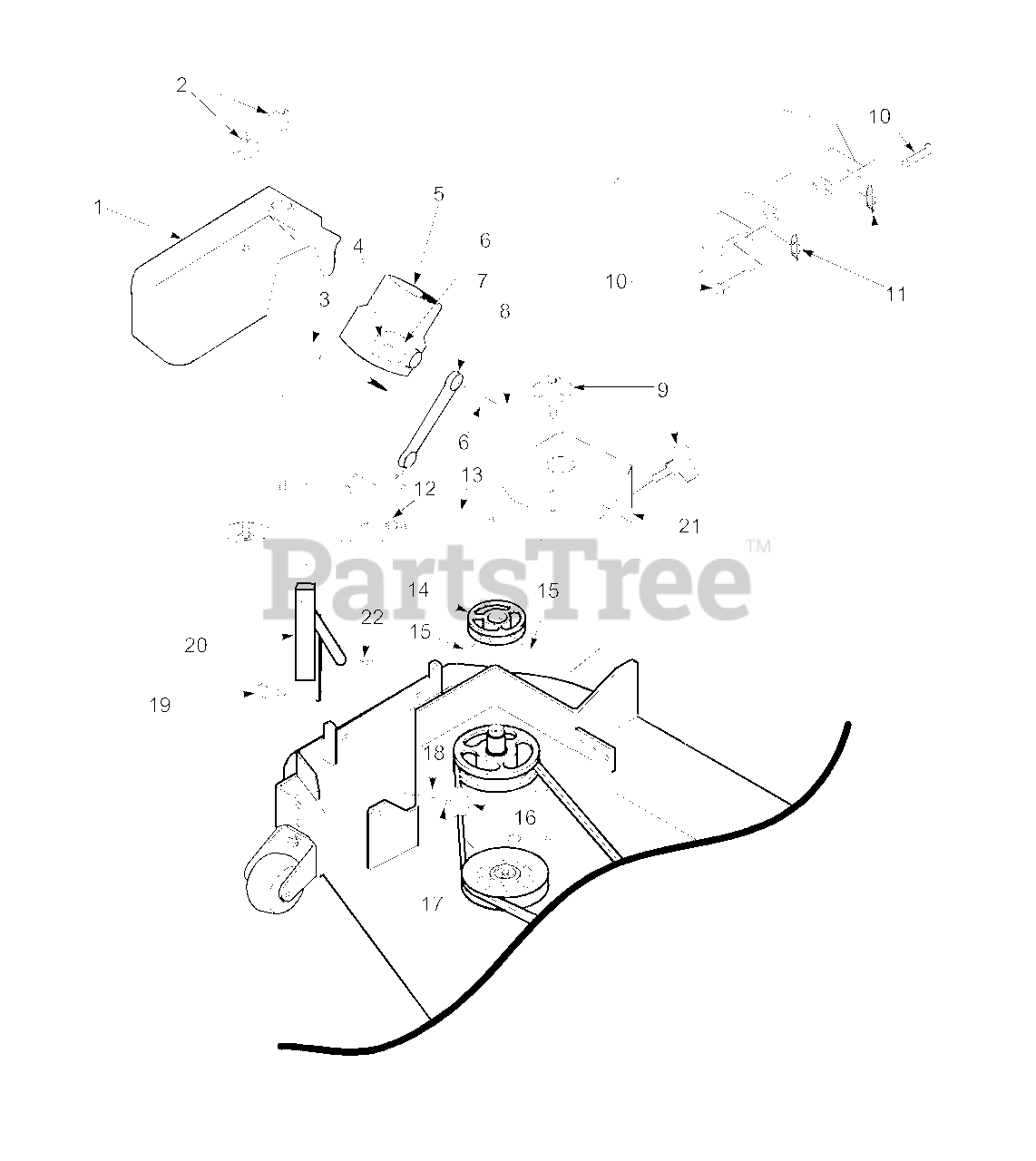

Blower Mounting Components Parts Diagram

  • Title

1

Scag 482612

Belt Cover, GC-STC

$

$

Not available

2

Scag 04029-04

Wingnut, Plastic 3/8 Small

$2.99

$

In Stock, only 3 left!

0

3

Scag 482300

Cap, Square Vinyl

$3.49

$

In Stock, only 1 left!

0

4

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, only 2 left!

0

5

Scag 461387

Adapter, Blower GC-STC

Note: Includes item #7

$117.99

$

Usually ships in 2-12 days

0

6

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, Qty 10

0

7

Scag 48137-04

Rubber Strap 7-3/4"

$9.99

$

In Stock, only 2 left!

0

8

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

9

Scag 481625-01

Knob W/Stud, 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

10

Scag 04064-15

Clevis Pin, 5/16 x 1-1/2"

$1.49

$

In Stock, Qty 9

0

11

Scag 04069-03

Pin, Rue Cotter 5/16 Dia.

$1.49

$

In Stock, only 1 left!

0

12

Scag 04067-07

Pin, Ring 1/2 x 2-1/4"
(Superseded to 04067-10)

$6.99

$

In Stock, only 2 left!

0

13

Scag 481547

Lanyard

$16.99

$

In Stock, only 4 left!

0

14

Scag 482248

Pulley, 3-3/4" for 48" Deck
(Superseded to 482587)

$66.99

$

Usually ships in 2-12 days

0

Scag 482587

Pulley, 4" for 52" Deck

$66.99

$

Usually ships in 2-12 days

0

15

Scag 04012-04

Setscrew, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 6

0

16

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 11

0

18

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 18

0

19

Scag 04003-11

Bolt, Carr. 3/8-16 x 1-1/4" Grade 5

$0.99

$

In Stock, only 1 left!

0

20

Scag 461530

Mounting Post Weldment, Blower

$45.99

$

In Stock, only 1 left!

0

21

Scag 423708

Belt Cover

$

$

Not available

22

Scag 04110-03

U-Nut

$2.49

$

Usually ships in 2-12 days

0
