GC-STC-CSV - Scag Grass Catcher (SN: J2800001 - J2899999) GC-STC-CSV Hopper Support Components Parts Diagram

Grass Catcher

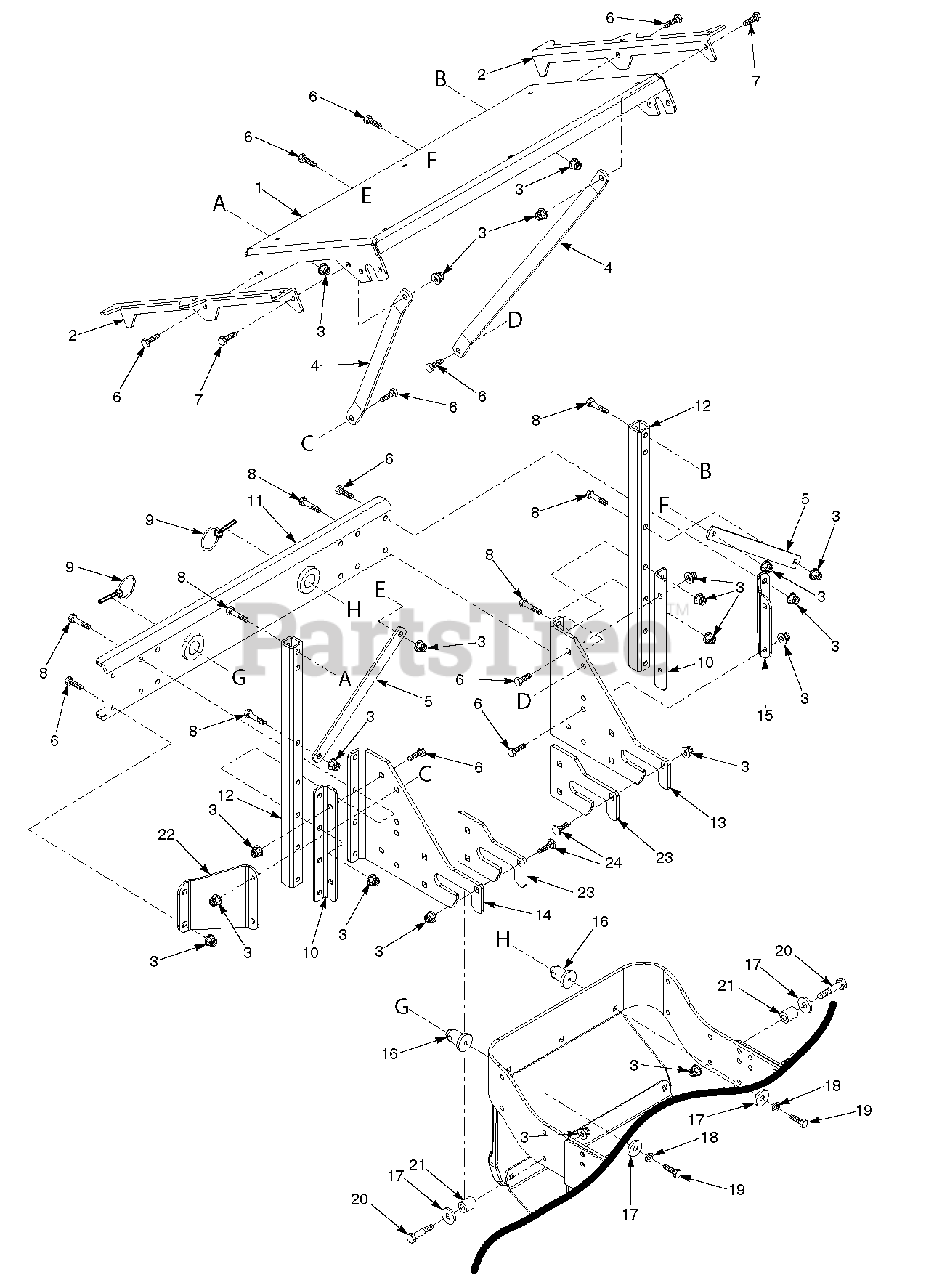

GC-STC-CSV Hopper Support Components Parts Diagram

  • Title
1

Scag Part# 426019

Support Frame, Hopper
Usually ships in 5 to 10 days

$

$233.55

0

2

Scag Part# 426020

Bracket, Hopper Support
Usually ships in 5 to 10 days

$

$34.37

0

3

Scag Part# 04117-02

Nut, Elastic Flange 3/8-16
Usually ships in 1 day

$

$0.73

0

4

Scag Part# 426022

Brace, Stiffener
Usually ships in 5 to 10 days

$

$15.38

0

5

Scag Part# 422386

Brace, Engine Mount
Usually ships in 5 to 10 days

$

$11.99

0

6

Scag Part# 04001-19

Bolt, Hex Head 3/8-16 x 1"
Usually ships in 1 day

$

$0.36

0

7

Scag Part# 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"
Usually ships in 1 day

$

$0.41

0

8

Scag Part# 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"
Usually ships in 1 day

$

$0.74

0

9
Usually ships in 1 day

$

$6.06

0

10

Scag Part# 426012

Mounting Bracket, Tube
Usually ships in 5 to 10 days

$

$17.60

0

11

Scag Part# 452382

Mounting Bracket Weldment
Usually ships in 5 to 10 days

$

$142.22

0

12

Scag Part# 426015

Tube, Upright
Usually ships in 5 to 10 days

$

$52.32

0

13

Scag Part# 426011

Mounting Bracket, GC R.H.
Usually ships in 5 to 10 days

$

$77.38

0

14

Scag Part# 426010

Mounting Bracket, GC L.H.
Usually ships in 5 to 10 days

$

$49.84

0

15

Scag Part# 426017

Angle Bracket, GC
Usually ships in 5 to 10 days

$

$67.47

0

16

Scag Part# 43884

Pin, GC Locator
Usually ships in 1 day

$

$26.61

0

17

Scag Part# 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Ga.
Usually ships in 1 day

$

$1.39

0

18

Scag Part# 04030-04

Lockwasher, 3/8"
Usually ships in 1 day

$

$0.06

0

19

Scag Part# 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"
Usually ships in 1 day

$

$0.41

0

20

Scag Part# 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"
Usually ships in 1 day

$

$0.74

0

21
Usually ships in 1 day

$

$6.61

0

22

Scag Part# 426016

Angle Bracket, GC
Usually ships in 5 to 10 days

$

$67.47

0

23

Scag Part# 426024

Wear Plate, GC
Usually ships in 5 to 10 days

$

$19.01

0

24

Scag Part# 04003-22

Bolt, Carriage 3/8-16 x 1-1/4"
Usually ships in 1 day

$

$1.39

0
