GC-STC-CSV - Scag Grass Catcher (SN: J2800001 - J2899999) GC-STC48" & 52" Blowermounting Components Parts Diagram

Grass Catcher

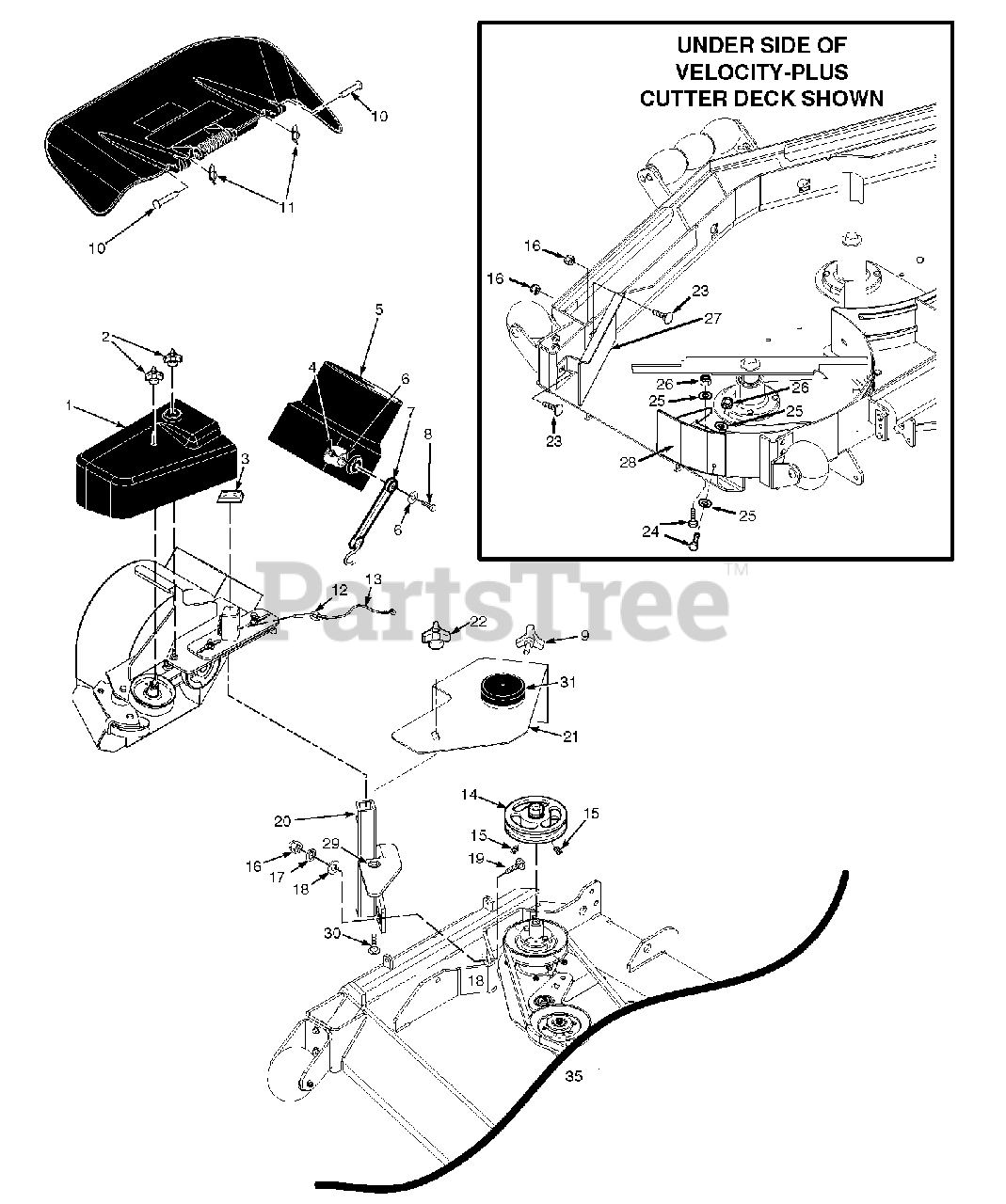

GC-STC48" & 52" Blowermounting Components Parts Diagram

  • Title
1

Scag Part# 484679

Belt Cover, 48"
Usually ships in 5 to 10 days

$

$92.22

0

1

Scag Part# 484685

Belt Cover, 52"
Usually ships in 5 to 10 days

$

$91.61

0

2

Scag Part# 04029-04

Wingnut, Plastic 3/8" Small
Usually ships in 1 day

$

$2.25

0

3

Scag Part# 483223

Cap, Square Vinyl
Usually ships in 5 to 10 days

$

$1.39

0

4

Scag Part# 04021-08

Nut, Elastic Stop 1/4-20
Usually ships in 1 day

$

$0.07

0

5

Scag Part# 461723

Adapter, Blower GC-STC,

Note: includes item #7

Usually ships in 1 day

$

$146.30

0

6

Scag Part# 04040-14

Flatwasher, 1/4-.312 x .750 x .065
Usually ships in 1 day

$

$0.06

0

7

Scag Part# 48137-04

Rubber Strap 7-3/4"
Usually ships in 1 day

$

$8.74

0

8

Scag Part# 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"
Usually ships in 1 day

$

$0.28

0

9

Scag Part# 481625-01

Knob W/Stud, 3/8-16 x 1-1/4"
Usually ships in 1 day

$

$2.36

0

10

Scag Part# 04064-15

Clevis Pin, 5/16 x 1-1/2"
Usually ships in 1 day

$

$1.11

0

11

Scag Part# 04069-03

Pin, Rue Cotter 5/16 Dia.
Usually ships in 1 day

$

$1.02

0

12

Scag Part# 04067-07

Pin, Ring 1/2 x 2-1/4"
Usually ships in 5 to 10 days

$

$8.40

0

13
Usually ships in 5 to 10 days

$

$14.57

0

14

Scag Part# 482587

Pulley, 4.0" Dia. 1.125 Bore
Usually ships in 5 to 10 days

$

$58.72

0

15

Scag Part# 04012-04

Setscrew, 5/16-18 x 3/8"
Usually ships in 1 day

$

$0.57

0

16

Scag Part# 04021-09

Nut, Elastic Stop 3/8-16
Usually ships in 1 day

$

$0.19

0

17

Scag Part# 04030-04

Lockwasher, 3/8"
Usually ships in 1 day

$

$0.06

0

18

Scag Part# 04041-07

Flatwasher, 3/8-.391 x .938 x .105
Usually ships in 1 day

$

$0.44

0

19

Scag Part# 04003-11

Bolt, Carr. 3/8-16 x 1-1/4"

Note: Grade 5

Usually ships in 1 day

$

$0.70

0

20

Scag Part# 461894

Mounting Post Weldment, Blower
Usually ships in 5 to 10 days

$

$110.81

0

21

Scag Part# 462549

Belt Cover Assembly, w/Cap - 48"
Usually ships in 5 to 10 days

$

$68.08

0

21

Scag Part# 462550

Belt Cover Assembly, w/Cap - 52"
Usually ships in 5 to 10 days

$

$66.92

0

22

Scag Part# 04029-04

Wing Nut, 3/8 Plastic - Small
Usually ships in 1 day

$

$2.25

0

23

Scag Part# 04003-23

Bolt, Carriage 3/8-16 x 1"
Usually ships in 1 day

$

$1.20

0

24

Scag Part# 04001-09

Bolt, Hex Head 5/16-18 x 1"
Usually ships in 1 day

$

$0.27

0

25

Scag Part# 04040-15

Flatwasher, 5/16-.375 x .875 x .083
Usually ships in 1 day

$

$0.07

0

26

Scag Part# 04021-10

Nut, Elastic Stop 5/16-18
Usually ships in 1 day

$

$0.09

0

27

Scag Part# 452383

Baffle Weldment 48 / 52
Usually ships in 5 to 10 days

$

$53.85

0

28

Scag Part# 424683

Baffle, Turbo 48" Deck
Usually ships in 5 to 10 days

$

$40.01

0

28

Scag Part# 424211

Baffle, Turbo 52" Deck
Usually ships in 5 to 10 days

$

$62.73

0

29

Scag Part# 04024-02

Nut, Push-On 3/8 Thread
Usually ships in 1 day

$

$1.11

0

30

Scag Part# 04003-22

Bolt, Carriage 3/8-16 x 1-1/4"
Usually ships in 1 day

$

$1.39

0

31

Scag Part# 484368

Cap, Spindle
Usually ships in 1 day

$

$4.41

0
