GC-STC-CSV - Scag Grass Catcher (SN: J2800001 - J2899999) GC48" & 52" Blowerhousing Assembly Parts Diagram

Grass Catcher

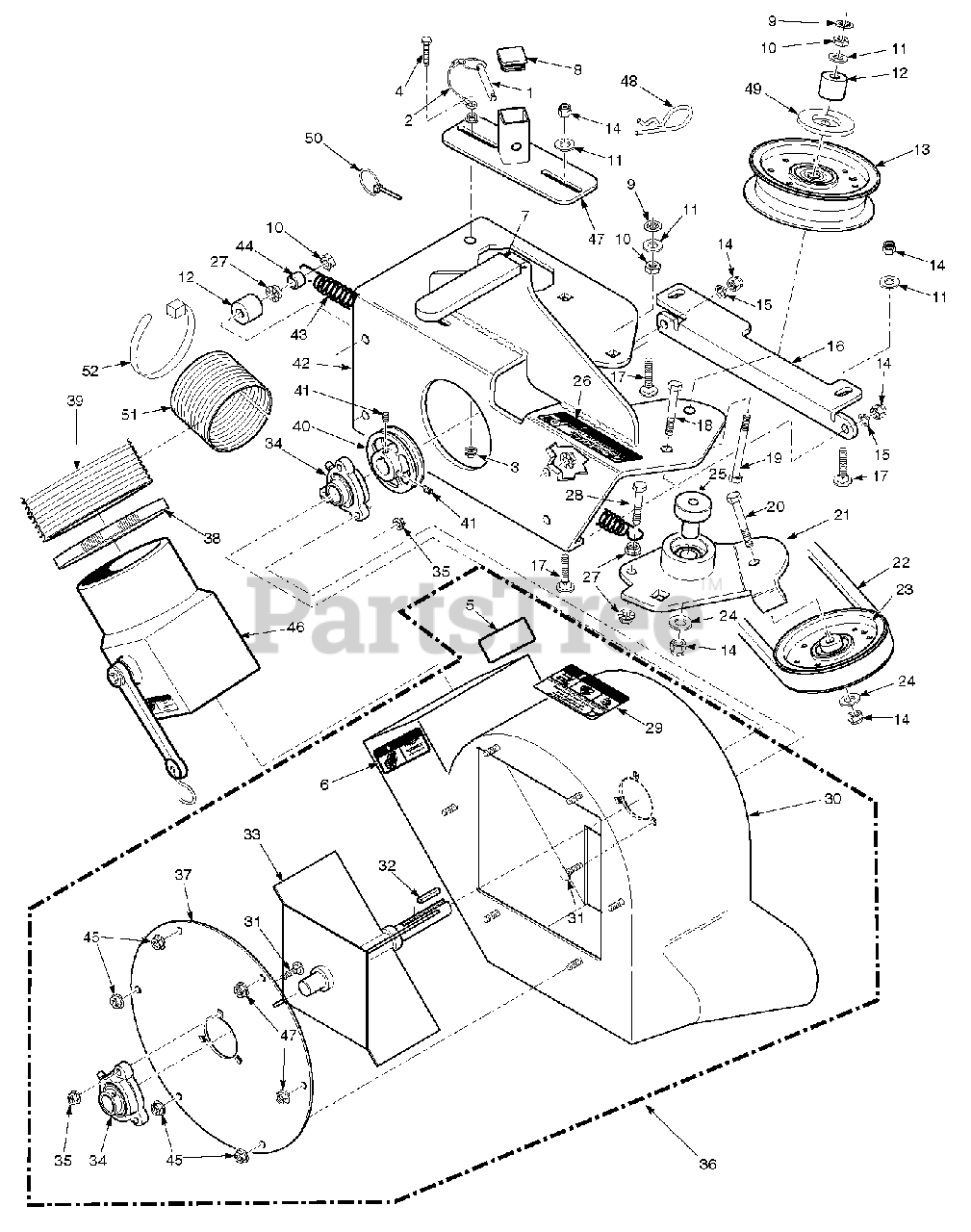

GC48" & 52" Blowerhousing Assembly Parts Diagram

  • Title
1

Scag Part# 04067-07

Pin, Ring 2-1/4" Long
Usually ships in 5 to 10 days

$

$8.40

0

2

Scag Part# 481547

Lanyard, Deck Height Pin
Usually ships in 5 to 10 days

$

$14.57

0

3

Scag Part# 04019-02

Nut, Serr. Flange 1/4-20
Usually ships in 1 day

$

$0.09

0

4

Scag Part# 04019-02

Bolt, Hex Head 1/4-20 x 1-1/4"
Usually ships in 1 day

$

$0.09

0

5

Scag Part# 483392

Decal, Blower
Usually ships in 5 to 10 days

$

$2.71

0

6

Scag Part# 483393

Decal, Rotating Blower
Usually ships in 5 to 10 days

$

$3.89

0

7

Scag Part# 481428

Grip, Blower Lever
Usually ships in 5 to 10 days

$

$3.84

0

8

Scag Part# 483223

Cap, Square
Usually ships in 5 to 10 days

$

$1.39

0

9

Scag Part# 04024-02

Nut, Push On 3/8 Thread
Usually ships in 1 day

$

$1.11

0

10

Scag Part# 04021-05

Lock Nut, 3/8-16
Usually ships in 1 day

$

$0.23

0

11

Scag Part# 04041-07

Flatwasher, 3/8-.391 x .938 x .105
Usually ships in 1 day

$

$0.44

0

12
Usually ships in 1 day

$

$5.47

0

13

Scag Part# 483209

Pulley, Idler 4" Dia.
Usually ships in 5 to 10 days

$

$46.16

0

14

Scag Part# 04021-09

Nut, Elastic Stop 3/8-16
Usually ships in 1 day

$

$0.19

0

15

Scag Part# 04030-04

Lockwasher, 3/8-16
Usually ships in 1 day

$

$0.06

0

16

Scag Part# 424361

Plate, Catcher Mounting
Usually ships in 5 to 10 days

$

$39.48

0

17

Scag Part# 04003-05

Bolt, Carr. 3/8-16 x 1-1/2"
Usually ships in 1 day

$

$0.79

0

18

Scag Part# 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"
Usually ships in 1 day

$

$0.88

0

19

Scag Part# 04001-81

Bolt, Hex Head 3/8-16 x 3-1/2"
Usually ships in 1 day

$

$1.86

0

20

Scag Part# 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"
Usually ships in 1 day

$

$0.57

0

21

Scag Part# 461928

Idler Arm Assembly
Usually ships in 5 to 10 days

$

$81.32

0

22

Scag Part# 482379

Belt, GC-STC
Usually ships in 1 day

$

$46.88

0

23

Scag Part# 483189

Pulley, 3-1/2" O.D., GC-STC
Usually ships in 1 day

$

$41.44

0

24

Scag Part# 04043-04

Washer, 3/8 Hardened
Usually ships in 1 day

$

$0.65

0

25

Scag Part# 43503

Pivot, Idler
Usually ships in 1 day

$

$23.31

0

26

Scag Part# 483402

Decal, Belt Cover
Usually ships in 1 day

$

$0.88

0

27

Scag Part# 04019-04

Nut, Serr. Flange 3/8-16
Usually ships in 1 day

$

$0.25

0

28

Scag Part# 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8
Usually ships in 1 day

$

$0.42

0

29

Scag Part# 483391

Decal, Danger
Usually ships in 5 to 10 days

$

$2.85

0

30

Scag Part# 461931

Blower Housing Weldment
Usually ships in 5 to 10 days

$

$310.40

0

31

Scag Part# 04003-12

Bolt, Carr. 5/16-18 x 3/4" Gr. 5
Usually ships in 1 day

$

$0.32

0

32

Scag Part# 04063-06

Key, 1/4 x 1/4 x 1-1/2"
Usually ships in 1 day

$

$1.17

0

33

Scag Part# 461796

Fan Weldment
Usually ships in 5 to 10 days

$

$176.15

0

34

Scag Part# 483034

Bearing Assembly
Usually ships in 1 day

$

$33.83

0

35

Scag Part# 04021-10

Nut, Elastic Stop 5/16-18
Usually ships in 1 day

$

$0.09

0

36

Scag Part# 461930

Blower Housing Assembly, GC-STT
Usually ships in 5 to 10 days

$

$856.51

0

37

Scag Part# 421319

Cover, Blower Housing
Usually ships in 5 to 10 days

$

$44.28

0

38

Scag Part# 48136-02

Clamp, 8-5/8" Max Dia.
Usually ships in 1 day

$

$8.72

0

39

Scag Part# 462536

Hose, 8.00" Dia. x 53" Long

Note: (incl. #51, 52)

Usually ships in 5 to 10 days

$

$183.37

0

40

Scag Part# 482298

Pulley, 4-3/4" O.D. - 1" Bore
Usually ships in 5 to 10 days

$

$54.86

0

41

Scag Part# 04012-04

Set Screw, 5/16-18 x 3/8"
Usually ships in 1 day

$

$0.57

0

42

Scag Part# 461932

Frame, Blower Mount
Usually ships in 5 to 10 days

$

$175.85

0

43

Scag Part# 481522

Spring, Main Drive
Usually ships in 1 day

$

$28.84

0

44
Usually ships in 1 day

$

$3.68

0

45

Scag Part# 04019-03

Nut, Serr. Flange 5/16-18
Usually ships in 1 day

$

$0.15

0

46

Scag Part# 461723

Adapter w/Strap
Usually ships in 1 day

$

$146.30

0

47

Scag Part# 451821

Receiver Weldment, Mounting Post
Usually ships in 1 day

$

$39.11

0

48

Scag Part# 04062-04

Hair Pin Cotter, .177 x 3-1/4"
Usually ships in 1 day

$

$1.32

0

49

Scag Part# 424367

Dust Shield
Usually ships in 1 day

$

$1.79

0

50

Scag Part# 424367

Quick Pin, 5/16" Dia.
Usually ships in 1 day

$

$1.79

0

51

Scag Part# 48135-16

Hose, 8" Dia. x 24" Split
Usually ships in 5 to 10 days

$

$164.12

0

52

Scag Part# 48028-11

Cable Tie, .345 X 31.5 Black
Usually ships same day

Currently unavailable

$

$
