GC-STC - Scag Grass Catcher (SN: 8620001 - 8629999)

Grass Catcher

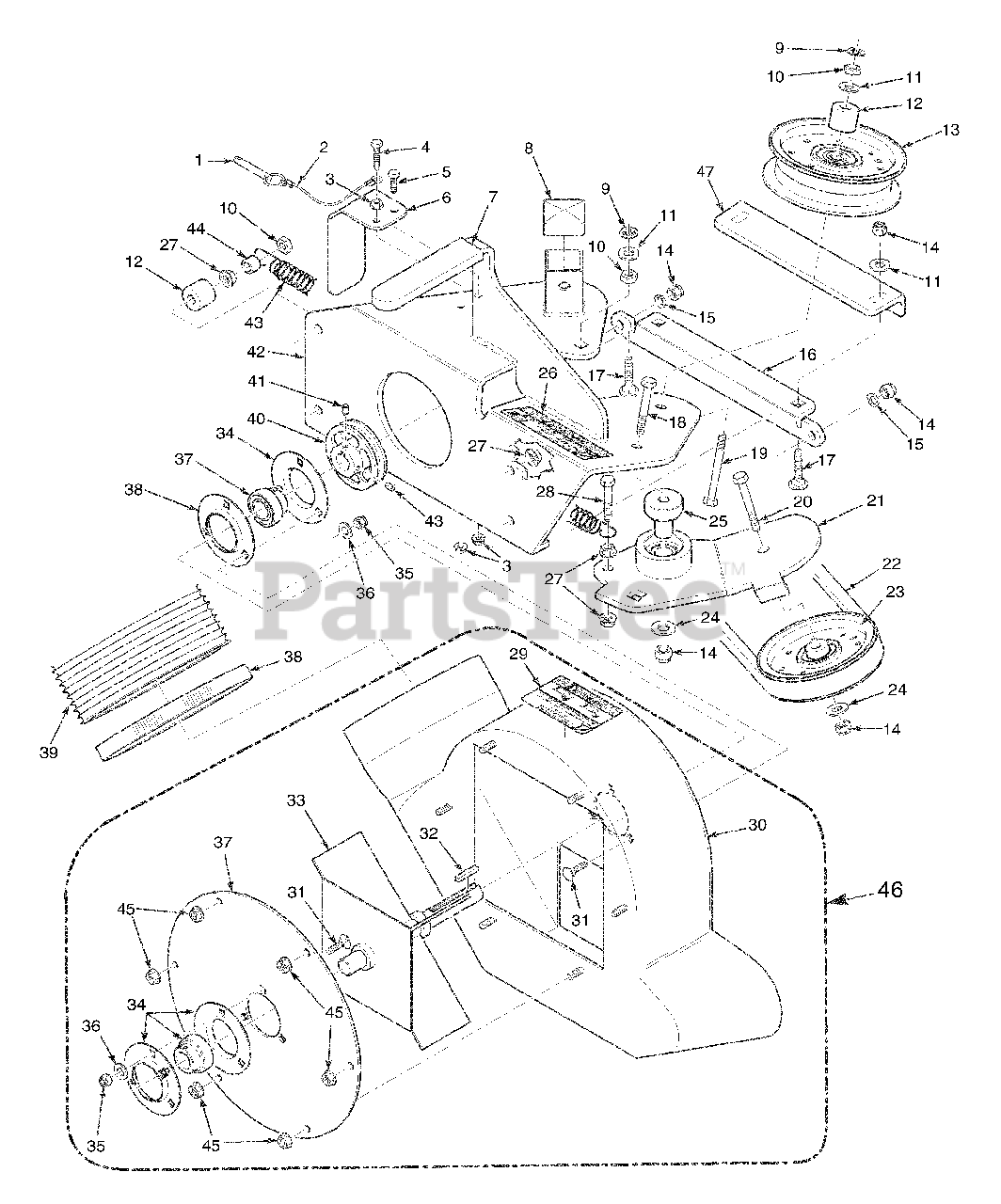

GC-STC - Scag Grass Catcher (SN: 8620001 - 8629999) > Parts Diagrams (5) > Blower Housing Assembly 48" & 52"

  • Title
04067-07

1

Pin, Ring 2-1/4" Long

Part# 04067-07

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.40

481547

2

Lanyard, Deck Height Pin

Part# 481547

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.57

04019-02

3

Nut, Serr. Flange 1/4-20

Part# 04019-02

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.09

04001-59

4

Bolt, Hex Head 1/4-20 x 1-1/4"

Part# 04001-59

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.28

04001-01

5

Bolt, Hex Head 1/4-20 x 3/4"

Part# 04001-01

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.15

423298

6

Belt Cover, Rear

Part# 423298

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $74.26

481428

7

Grip, Blower Lever

Part# 481428

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.84

482300

8

Cap, Square

Part# 482300

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.95

04024-02

9

Nut, Push On 3/8 Thread

Part# 04024-02

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.11

04021-05

10

Lock Nut, 3/8-16

Part# 04021-05

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.23

04041-07

11

Flatwasher, 3/8-.391 x .938 x .105

Part# 04041-07

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.44

43277

12

Spacer

Part# 43277

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $5.47

482299

13

Pulley, Idler 4" Dia.

Part# 482299 (Superseded to 483209)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.16

04021-09

14

Nut, Elastic Stop 3/8-16

Part# 04021-09

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.19

04030-04

15

Lockwasher, 3/8-16

Part# 04030-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.06

423296

16

Plate, Catch Mounting

Part# 423296

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $22.25

04003-05

17

Bolt, Carr. 3/8-16 x 1-1/2"

Part# 04003-05

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.79

04001-46

18

Bolt, Hex Head 3/8-16 x 2-1/4"

Part# 04001-46

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.74

04001-62

19

Bolt, Hex Head 3/8-16 x 3-1/4"

Part# 04001-62

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.03

04001-45

20

Bolt, Hex Head 3/8-16 x 2"

Part# 04001-45

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.69

461519

21

Idler Arm Weldment

Part# 461519

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $67.04

482278

22

Belt, GC-STC

Part# 482278

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $36.54

482079

23

Pulley, 4" O.D.

Part# 482079 (Superseded to 483189)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $41.44

04043-04

24

Washer, 3/8 Hardened

Part# 04043-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.65

43575

25

Pivot, Idler

Part# 43575

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $23.09

481039

26

Decal, Belt Cover

Part# 481039 (Superseded to 483402)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.88

04019-04

27

Nut, Serr. Flange 3/8-16

Part# 04019-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.25

04001-136

28

Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8

Part# 04001-136

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.42

482293

29

Decal, Danger

Part# 482293

OEM Warranty Repair Part for Scag

Not available

461342

30

Blower Housing Weldment,

Part# 461342

Note: includes item #29

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $335.91

04003-12

31

Bolt, Carr. 5/16-18 x 3/4" Gr. 5

Part# 04003-12

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.32

04063-06

32

Key, 1/4 x 1/4 x 1-1/2"

Part# 04063-06

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.17

45491

33

Fan Weldment

Part# 45491 (Superseded to 461795)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $176.15

48915

34

Bearing with Locking Collar

Part# 48915

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $44.93

04021-10

35

Nut, Elastic Stop 5/16-18

Part# 04021-10

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.09

04040-04

36

Flatwasher, 5/16-.344 x .688 x .065

Part# 04040-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.06

421319

37

Cover, Blower Housing

Part# 421319

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $44.28

48136-01

38

Clamp, 6-1/2" Max Dia.

Part# 48136-01

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $26.68

48135-10

39

Hose, 6" Dia.

Part# 48135-10

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $133.67

482298

40

Pulley, 4-3/4" O.D. - 1" Bore

Part# 482298

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $54.86

04012-04

41

Set Screw, 5/16-18 x 3/8"

Part# 04012-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.57

461343

42

Frame Weldment, Blower Mount

Part# 461343 (Superseded to 461682)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.84

481522

43

Spring, Main Drive

Part# 481522

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $28.84

43212

44

Spacer

Part# 43212

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $3.68

04019-03

45

Nut, Serr. Flange 5/16-18

Part# 04019-03

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.15

461341

46

Blower Housing Assembly

Part# 461341 (Superseded to 461778)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $496.21

423297

47

Plate, Blower Catch

Part# 423297

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $29.08
