GC-STWC-61 - Scag Grass Catcher (SN: E0100001 - E0199999)

Grass Catcher

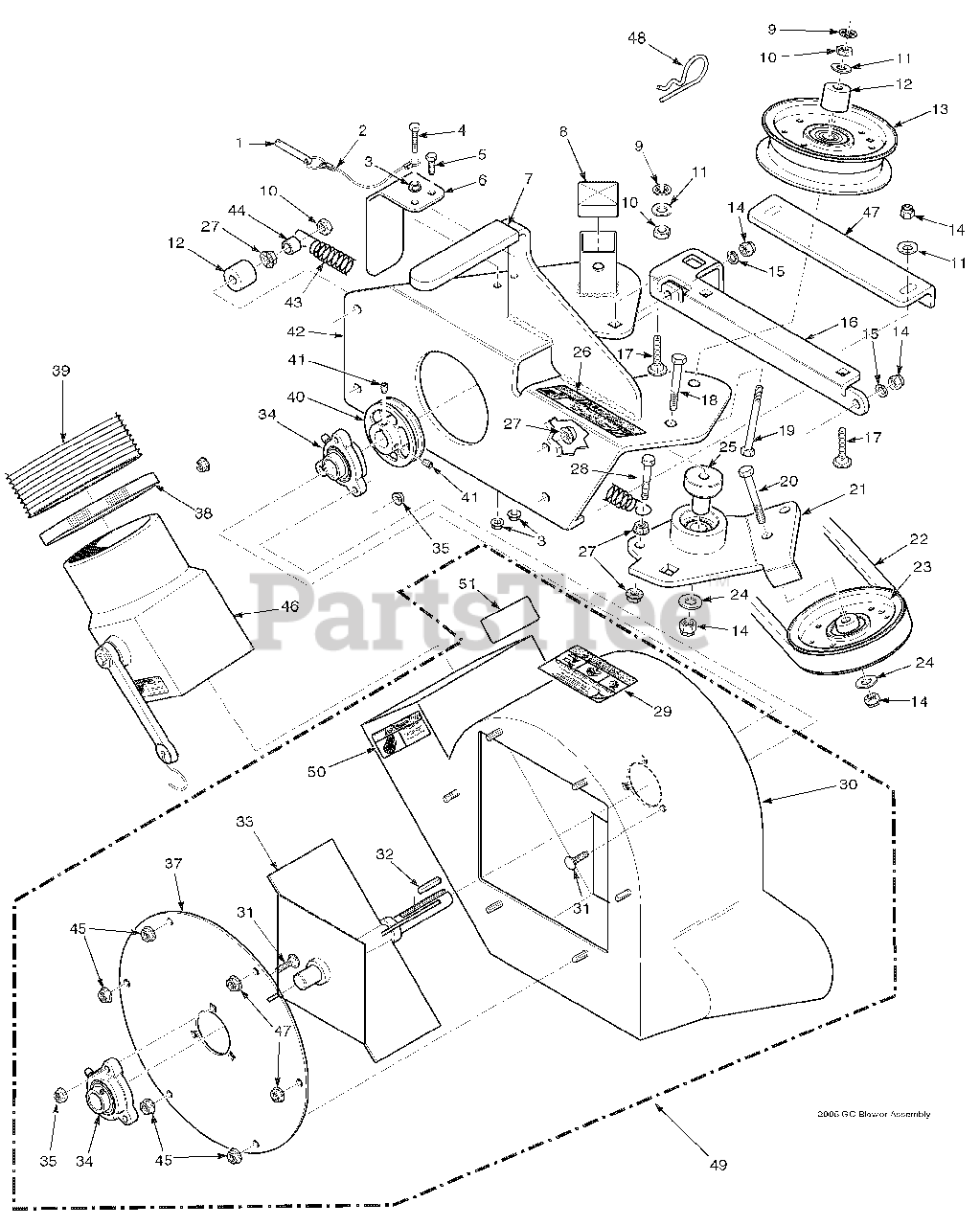

GC-STWC-61 - Scag Grass Catcher (SN: E0100001 - E0199999) > Parts Diagrams (5) > Blower Housing Assembly

  • Title
04067-07

1

Pin, Ring 2-1/4" Long

Part# 04067-07

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.40

481547

2

Lanyard, Deck Height Pin

Part# 481547

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $14.57

04019-02

3

Nut, Serr. Flange 1/4-20

Part# 04019-02

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.09

04001-59

4

Bolt, Hex Head 1/4-20 x 1-1/4"

Part# 04001-59

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.28

04001-01

5

Bolt, Hex Head 1/4-20 x 3/4"

Part# 04001-01

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.15

423298

6

Belt Cover, Rear

Part# 423298

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $74.26

481428

7

Grip, Blower Lever

Part# 481428

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.84

482300

8

Cap, Square

Part# 482300

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $2.95

04024-02

9

Nut, Push On 3/8 Thread

Part# 04024-02

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.11

04021-05

10

Lock Nut, 3/8-16

Part# 04021-05

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.23

04041-07

11

Flatwasher, 3/8-.391 x .938 x .105

Part# 04041-07

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.44

43277

12

Spacer

Part# 43277

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $5.47

483209

13

Pulley, Idler 4" Dia.

Part# 483209

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.16

04021-09

14

Nut, Elastic Stop 3/8-16

Part# 04021-09

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.19

04030-04

15

Lockwasher, 3/8-16

Part# 04030-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.06

423933

16

Plate, Catch Mounting

Part# 423933

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $43.30

04003-05

17

Bolt, Carr. 3/8-16 x 1-1/2"

Part# 04003-05

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.79

04001-46

18

Bolt, Hex Head 3/8-16 x 2-1/4"

Part# 04001-46

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.74

04001-81

19

Bolt, Hex Head 3/8-16 x 3-1/2"

Part# 04001-81

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.86

04001-21

20

Bolt, Hex Head 3/8-16 x 1-3/4"

Part# 04001-21

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.57

461928

21

Idler Arm Assembly, GC-STT 61"

Part# 461928

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $81.32

482379

22

Belt, GC-STT 61"

Part# 482379

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $46.88

483189

23

Pulley, 4" O.D., GC-STT

Part# 483189

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $41.44

04043-04

24

Washer, 3/8 Hardened

Part# 04043-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.65

43575

25

Pivot, Idler - 61" & 72"

Part# 43575

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $23.09

483402

26

Decal, Belt Cover

Part# 483402

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.88

04019-04

27

Nut, Serr. Flange 3/8-16

Part# 04019-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.25

04001-136

28

Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8

Part# 04001-136

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.42

483391

29

Decal, Danger

Part# 483391

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $2.85

461681

30

Blower Housing w/Decals

Part# 461681 (Superseded to 461779)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $496.21

04003-12

31

Bolt, Carr. 5/16-18 x 3/4" Gr. 5

Part# 04003-12

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.32

04063-06

32

Key, 1/4 x 1/4 x 1-1/2"

Part# 04063-06

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.17

461796

33

Fan Weldment

Part# 461796

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $176.15

483034

34

Bearing Assembly

Part# 483034

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $33.83

04019-03

35

Nut, Serr. Flange 5/16-18

Part# 04019-03

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.15

04040-04

36

Flatwasher, 5/16-.344 x .688 x .065

Part# 04040-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.06

421319

37

Cover, Blower Housing

Part# 421319

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $44.28

48136-02

38

Clamp, 8-5/8" Max Dia.

Part# 48136-02

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $8.72

48135-13

39

Hose, 8" Dia. x 56" Long

Part# 48135-13

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $214.60

482298

40

Pulley, 4-3/4" O.D. - 1" Bore

Part# 482298

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $54.86

04012-04

41

Set Screw, 5/16-18 x 3/8"

Part# 04012-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.57

461684

42

Frame, Blower Mount - 61"

Part# 461684

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $234.84

481522

43

Spring, Main Drive

Part# 481522

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $28.84

43212

44

Spacer

Part# 43212

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $3.68

04019-03

45

Nut, Serr. Flange 5/16-18

Part# 04019-03

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.15

461419

46

Adapter w/Strap

Part# 461419 (Superseded to 461723)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $146.30

424094

47

Plate, Blower Catch

Part# 424094

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $22.56

04062-05

48

Hair Pin Cotter, .243 x 4"

Part# 04062-05

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.05

461680

49

Blower Housing Assembly, GC-STT

Part# 461680 (Superseded to 461779)

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $496.21

483393

50

Decal, Rotating Blower

Part# 483393

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.89

483392

51

Decal, Blower

Part# 483392

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.71
