GC-STWC-CS61V - Scag Grass Catcher (SN: E0400001 - E0499999)

Grass Catcher

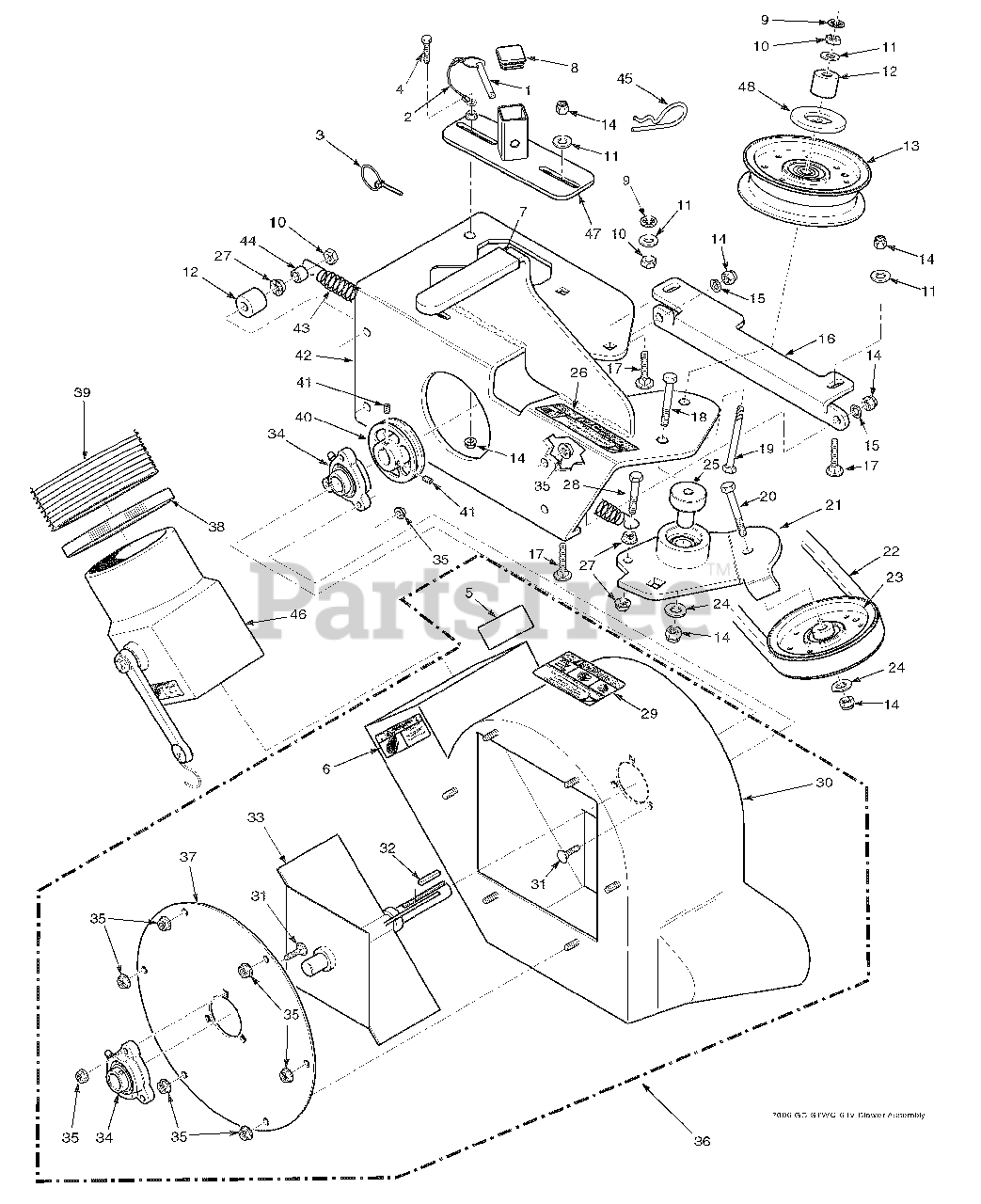

GC-STWC-CS61V - Scag Grass Catcher (SN: E0400001 - E0499999) > Parts Diagrams (5) > Blower Housing Assembly

  • Title
04067-10

1

Pin, Ring 2-1/4" Long

Part# 04067-10

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $6.67

481547

2

Lanyard, Deck Height Pin

Part# 481547

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $14.57

04066-04

3

Quick Pin, 5/16" Dia.

Part# 04066-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $6.06

04001-21

4

Bolt, Hex Head 3/8-16 x 1-3/4"

Part# 04001-21

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.57

483392

5

Decal, Blower

Part# 483392

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $2.71

483393

6

Decal, Rotating Blower

Part# 483393

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $3.89

481428

7

Grip, Blower Lever

Part# 481428

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $3.84

483223

8

Cap, Square

Part# 483223

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $1.39

04024-02

9

Nut, Push On 3/8 Thread

Part# 04024-02

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.11

04021-05

10

Lock Nut, 3/8-16

Part# 04021-05

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.23

04041-07

11

Flatwasher, 3/8-.391 x .938 x .105

Part# 04041-07

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.44

43277

12

Spacer

Part# 43277

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $5.47

483209

13

Pulley, Idler 4" Dia.

Part# 483209

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $46.16

04021-09

14

Nut, Elastic Stop 3/8-16

Part# 04021-09

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.19

04030-04

15

Lockwasher, 3/8-16

Part# 04030-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.06

424361

16

Plate, Catcher Mounting

Part# 424361

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $39.48

04003-05

17

Bolt, Carr. 3/8-16 x 1-1/2"

Part# 04003-05

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.79

04001-46

18

Bolt, Hex Head 3/8-16 x 2-1/4"

Part# 04001-46

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.74

04001-81

19

Bolt, Hex Head 3/8-16 x 3-1/2"

Part# 04001-81

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.86

04001-21

20

Bolt, Hex Head 3/8-16 x 1-3/4"

Part# 04001-21

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.57

461928

21

Idler Arm Assembly

Part# 461928

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $81.32

483182

22

Belt, GC-STC

Part# 483182

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $39.51

483189

23

Pulley, 3-1/2" O.D., GC-STC

Part# 483189

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $41.44

04043-04

24

Washer, 3/8 Hardened

Part# 04043-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.65

43575

25

Pivot, Idler

Part# 43575

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $23.09

483402

26

Decal, Belt Cover

Part# 483402

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.88

04019-04

27

Nut, Serr. Flange 3/8-16

Part# 04019-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.25

04001-136

28

Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8

Part# 04001-136

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.42

483391

29

Decal, Danger

Part# 483391

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $2.85

461931

30

Blower Housing Weldment

Part# 461931

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $310.40

04003-12

31

Bolt, Carr. 5/16-18 x 3/4" Gr. 5

Part# 04003-12

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.32

04063-06

32

Key, 1/4 x 1/4 x 1-1/2"

Part# 04063-06

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.17

461796

33

Fan Weldment

Part# 461796

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $176.15

483034

34

Bearing Assembly

Part# 483034

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $33.83

04019-03

35

Nut, Serr. Flange 5/16-18

Part# 04019-03

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.15

461930

36

Blower Housing Assembly, GC-STT

Part# 461930

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $856.51

421319

37

Cover, Blower Housing

Part# 421319

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $44.28

48136-02

38

Clamp, 8-5/8" Max Dia.

Part# 48136-02

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $8.72

48135-14

39

Hose, 8.00" Dia. x 60.50" Long

Part# 48135-14

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $225.76

482298

40

Pulley, 4-3/4" O.D. - 1" Bore

Part# 482298

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $54.86

04012-04

41

Set Screw, 5/16-18 x 3/8"

Part# 04012-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $0.57

461932

42

Frame, Blower Mount

Part# 461932

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $175.85

481522

43

Spring, Main Drive

Part# 481522

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $28.84

43212

44

Spacer

Part# 43212

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 4 to 9 business days

Your price: $3.68

04062-04

45

Hair Pin Cotter, .177 x 3-1/4"

Part# 04062-04

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.32

461723

46

Adapter w/Strap

Part# 461723

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $146.30

451821

47

Receiver Weldment, Mounting Post

Part# 451821

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $39.11

424367

48

Dust Shield

Part# 424367

OEM Warranty Repair Part for Scag

Usually leaves our warehouse in 1 business day

Your price: $1.79
