GC-SZL-SFZ-SPZ (06375) - Scag Fabric 2-Bag Grass Catcher (SN: T0200001 - T0299999) GC-SZL/SFZ/SPZ HOOD AND DISCHARGE ASSEMBLY Parts Diagram

Fabric 2-Bag Grass Catcher

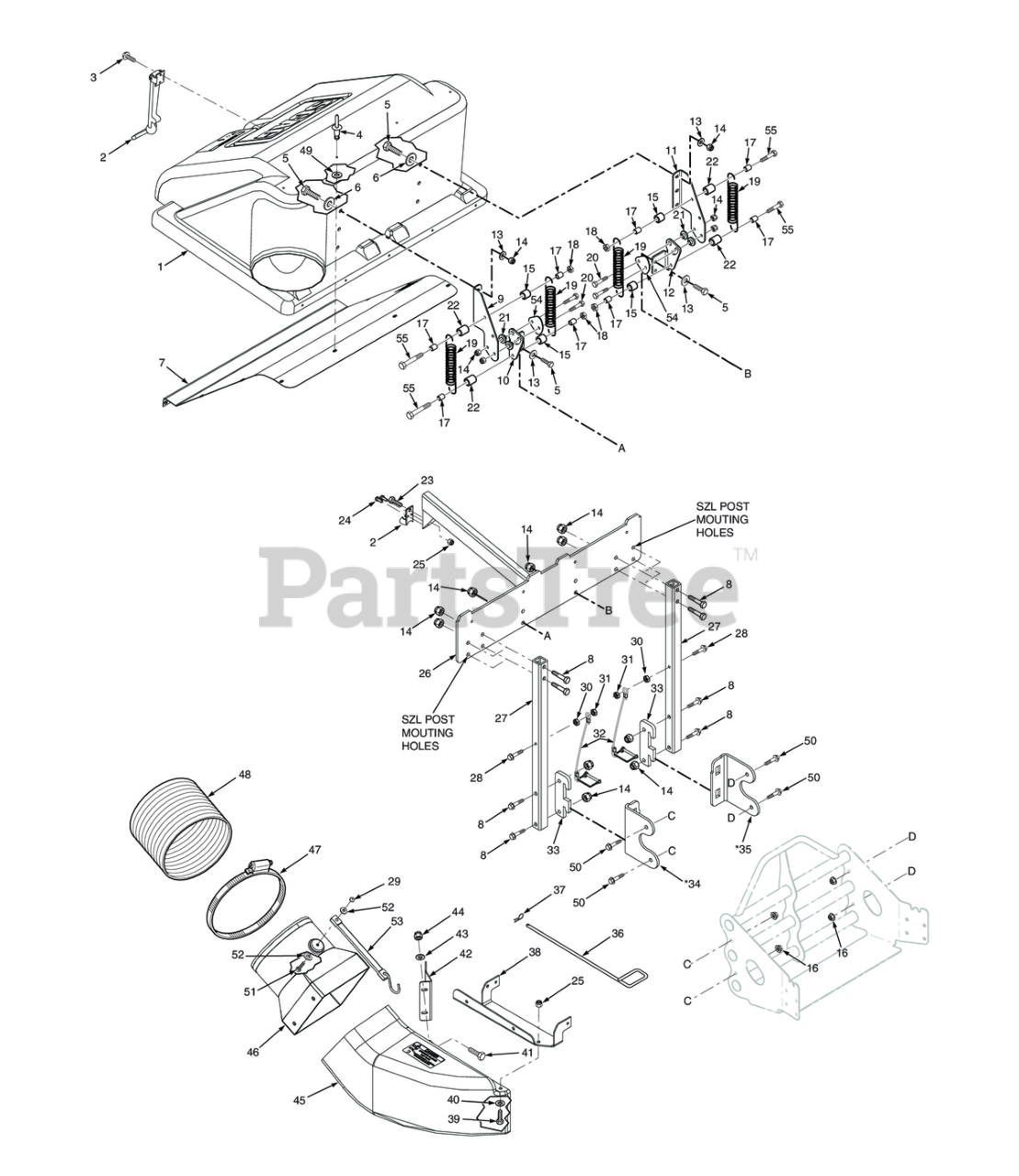

GC-SZL/SFZ/SPZ HOOD AND DISCHARGE ASSEMBLY Parts Diagram

  • Title

1

Scag 462782

Hood Assembly

Note: (incl. screen & seal)

$887.99

$

Usually ships in 2-12 days

0

2

Scag 482409

Latch, Hopper

$76.99

$

In Stock, only 1 left!

0

3

Scag 04010-25

Screw, #10-32 x 3/4"

$1.49

$

In Stock, Qty 5

0

3

Scag 04041-09

Flatwasher, 3/8-.196 x .496 x .048

$2.99

$

Usually ships in 2-12 days

0

3

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

0

4

Scag 04090-02

Pop Rivet, 3/16 x .652"

$0.99

$

In Stock, only 3 left!

0

5

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 15

0

6

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

7

Scag 424731

Screen, GC Hood

$238.99

$

Usually ships in 2-12 days

0

8

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

9

Scag 425831

Hinge, Upper RH

$30.99

$

Usually ships in 2-12 days

0

10

Scag 425876

Hinge, Lower RH

$25.99

$

Usually ships in 2-12 days

0

11

Scag 425830

Hinge, Upper LH

$30.99

$

Usually ships in 2-12 days

0

12

Scag 425875

Hinge, Lower LH

$25.99

$

Usually ships in 2-12 days

0

13

Scag 04041-01

Flatwasher, 3/8-.391 x .938 x .105

$

$

Currently unavailable

14

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 43277

SPACER, J-PULL ROD

$6.49

$

Usually ships in 2-12 days

0

16

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

17

Scag 43212

Spacer, Deck Assist

$4.49

$

Usually ships in 2-12 days

0

18

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

19

Scag 482304

Spring, Hood Hinge

$65.99

$

Usually ships in 2-12 days

0

20

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 17

0

21

Scag 43546

Bushing, Hopper Pivot

$12.99

$

Usually ships in 2-12 days

0

22

Scag 43886

Spacer

$7.99

$

In Stock, only 2 left!

0

23

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04090-03

Rivot, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

25

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 452675

Frame Weldment, Bag Support

$160.99

$

Usually ships in 2-12 days

0

27

Scag 424750

Tube, Grass Catcher Mount

$85.99

$

Usually ships in 2-12 days

0

28

Scag 04001-03

Bolt, Hex Head 1/4-20 x 0.63"

$0.99

$

In Stock, Qty 8

0

29

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

30

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

31

Scag 04021-02

Bolt, Hex Hd. 1/2-13 x 9-1/2"

$0.99

$

In Stock, Qty 6

0

32

Scag 485859

Snap Pin Assembly w/Lanyard

$24.99

$

Usually ships in 2-12 days

0

33

Scag 424752

Latch, GC-SFZ

$12.99

$

Usually ships in 2-12 days

0

34

Scag 424751

Bracket, GC Mount RH

Note: GC Mounting Brackets for the SZL36 & SZL42, p/n 424751 are mounted on the LH side of the machine and p/n 424749 are mounted on the RH side of the machine.

$22.99

$

Usually ships in 2-12 days

0

35

Scag 424749

Bracket, GC Mount LH

Note: GC Mounting Brackets for the SZL36 & SZL42, p/n 424751 are mounted on the LH side of the machine and p/n 424749 are mounted on the RH side of the machine.

$27.99

$

Usually ships in 2-12 days

0

36

Scag 44166

Latch Pin, GC Chute

$22.99

$

Usually ships in 2-12 days

0

37

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

0

38

Scag 424915

Bracket, GC Boot - 36" Deck

$88.99

$

Usually ships in 2-12 days

0

38

Scag 424734

Bracket, GC Boot - 48", 52" & 61" Deck

$21.99

$

Usually ships in 2-12 days

0

39

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 16

0

40

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 10

0

42

Scag 424754

Baffle, Boot Deflector - 36" Deck

$44.99

$

Usually ships in 2-12 days

0

42

Scag 424735

Baffle, Boot Deflector - 48" Deck

$44.99

$

Usually ships in 2-12 days

0

42

Scag 424754

Baffle, Boot Deflector - 36" Deck

$44.99

$

Usually ships in 2-12 days

0

42

Scag 424348

Baffle, Boot Deflector - 61" Deck

$15.99

$

Usually ships in 2-12 days

0

43

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, Qty 7

0

44

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

45

Scag 462048

Boot Assembly

$292.99

$

Usually ships in 2-12 days

0

46

Scag 461723

Adapter, Blower GC-STC,

$169.99

$

Usually ships in 2-12 days

0

47

Scag 48136-02

Clamp, 8-5/8" Max Dia. (61")

$10.99

$

In Stock, only 2 left!

0

48

Scag 48135-13

Hose, 8.00" Dia. x 56.00" Long

$248.99

$

Usually ships in 2-12 days

0

49

Scag 04041-19

Flatwasher, 3/16 (.196 x .469 x .048)

$0.99

$

In Stock, Qty 5

0

50

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

51

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 17

0

52

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, Qty 7

0

53

Scag 48137-04

Rubber Strap 7-3/4"

$10.99

$

In Stock, only 1 left!

0

54

Scag 425832

Guard, GC Hinge

$6.49

$

Usually ships in 2-12 days

0

55

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4.00

$1.49

$

In Stock, only 4 left!

0
