GC160 LE VXA (GCABE) - Honda Engine, Made in Italy (SN: GCABE-1000001 - GCABE-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in Italy

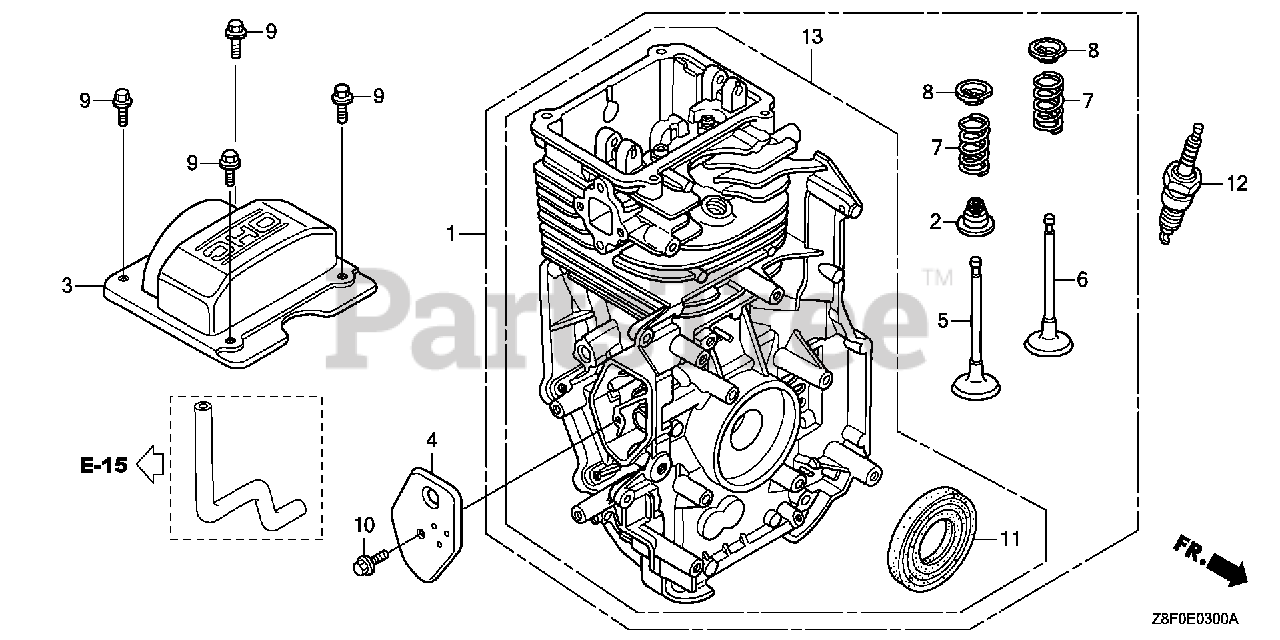

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-Z0L-505

SEE PART DETAILS - PRI; CYLINDER ASSY.
(Superseded to 12000-Z8B-000)

Note: Use up to Engine SN 1338126.

$107.99

$

Usually ships in 3-6 days

0

2

Honda 12209-ZM0-003

SEAL, VALVE STEM (Honda Code 6839831).

$10.99

$

In Stock, Qty 9

0

3

Honda 12310-Z0J-000

SEE PART DETAILS - SUP; COVER, CYLINDER HEAD
(Superseded to 12310-Z8A-000)

$40.99

$

In Stock, only 3 left!

0

3

Honda 12310-Z8A-000

SEE PART DETAILS - PRI; COVER, CYLINDER HEAD

$40.99

$

In Stock, only 3 left!

0

4

Honda 12355-ZL8-000

COVER, BREATHER (Honda Code 5580006). (BREATHER VALVE ASSY.)

$10.99

$

In Stock, only 2 left!

0

5

Honda 14711-ZL8-000

SEE PART DETAILS - PRI; VALVE, IN. (TECHNOSTAR)

$74.99

$

In Stock, only 2 left!

0

6

Honda 14721-ZL8-000

SEE PART DETAILS - SUP; VALVE, EX. (L8E)

$69.99

$

In Stock, only 2 left!

0

6

Honda 14721-Z8B-000

SEE PART DETAILS - PRI; VALVE, EX. (C8E)
(Superseded to 14721-ZL8-000)

$69.99

$

In Stock, only 2 left!

0

7

Honda 14751-ZL8-000

SPRING, VALVE (Honda Code 5580139).

$0.99

$

Usually ships in 3-6 days

0

8

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, only 4 left!

0

8

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, only 4 left!

0

9

Honda 90013-Z1L-000

BOLT, FLANGE (6X13)

Note: Use from Engine SN 2045722.

$0.99

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Engine SN 2045721.

$2.49

$

In Stock, Qty 20+

0

10

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, Qty 17

0

11

Honda 91201-ZL8-003

OIL SEAL (25.4X62X6) (Honda Code 5581038).

$8.99

$

In Stock, Qty 8

0

12

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.99

$

In Stock, Qty 20+

0

13

Honda 12000-Z0L-419

SEE PART DETAILS - PRI; CYLINDER ASSY.

Note: Use from Engine SN 1338127 to 2045910.

$114.99

$

Usually ships in 3-6 days

0

13

Honda 12000-Z1L-406

CYLINDER ASSY.

Note: Use from Engine SN 2045911.

$253.99

$

Usually ships in 3-6 days

0
