GC160 LE VXA (GCABE) - Honda Engine, Made in Italy (SN: GCABE-1000001 - GCABE-9999999) PISTON@CONNECTING ROD Parts Diagram

Engine, Made in Italy

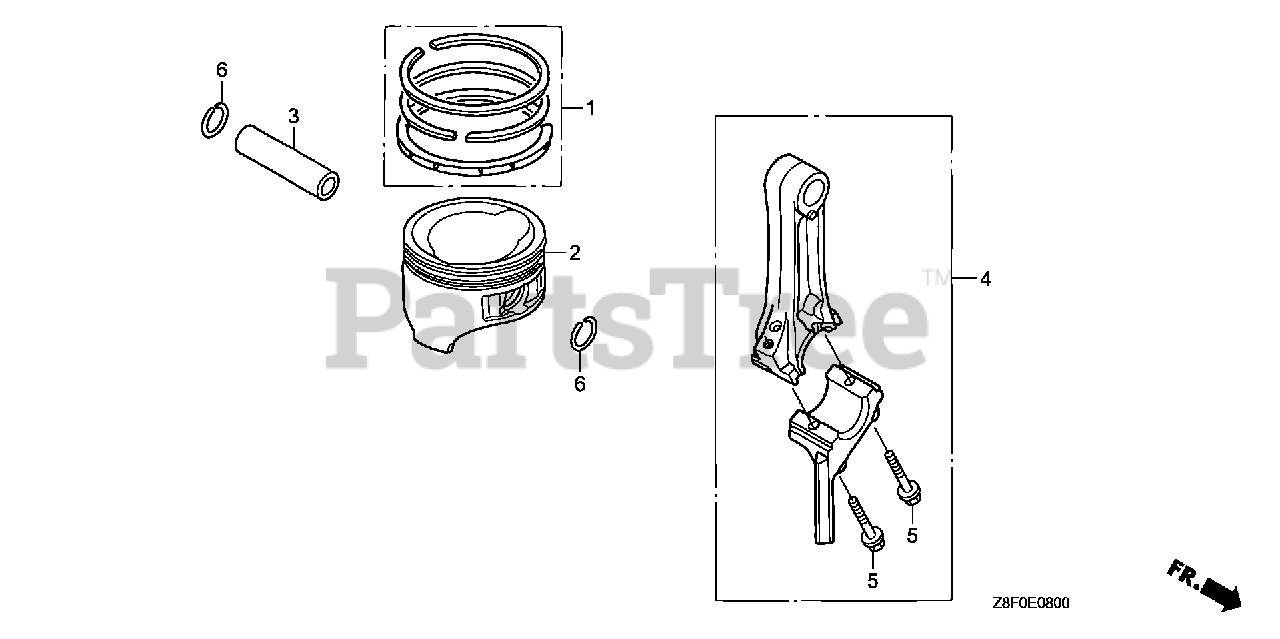

PISTON@CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-Z0L-014

RING SET, PISTON (STD) (TEIKOKU)

$30.99

$

In Stock, only 1 left!

0

2

Honda 13101-Z2A-010

SEE PART DETAILS - SUP; PISTON
(Superseded to 13101-Z8B-820)

$30.99

$

In Stock, only 4 left!

0

2

Honda 13101-Z8B-820

SEE PART DETAILS - PRI; PISTON
(Superseded to 13101-Z8A-900)

$30.99

$

In Stock, only 4 left!

0

3

Honda 13111-ZE0-000

PIN, PISTON (Honda Code 1426576).

Note: Use up to Engine SN 2048667.

$7.99

$

Usually ships in 3-6 days

0

3

Honda 13111-Z1L-000

PIN, PISTON

Note: Use from Engine SN 2048668.

$3.49

$

Usually ships in 3-6 days

0

4

Honda 13200-ZL8-000

ROD ASSY., CONNECTING (Honda Code 5580022).

$59.99

$

In Stock, only 3 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 90551-ZE0-000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, only 3 left!

0
