GC3000 BA (RZBE) - Honda Grass Catcher, Made in USA (SN: RZBE-0000001 - RZBE-9999999) GRASS CATCHER (CHUTER) Parts Diagram

Grass Catcher, Made in USA

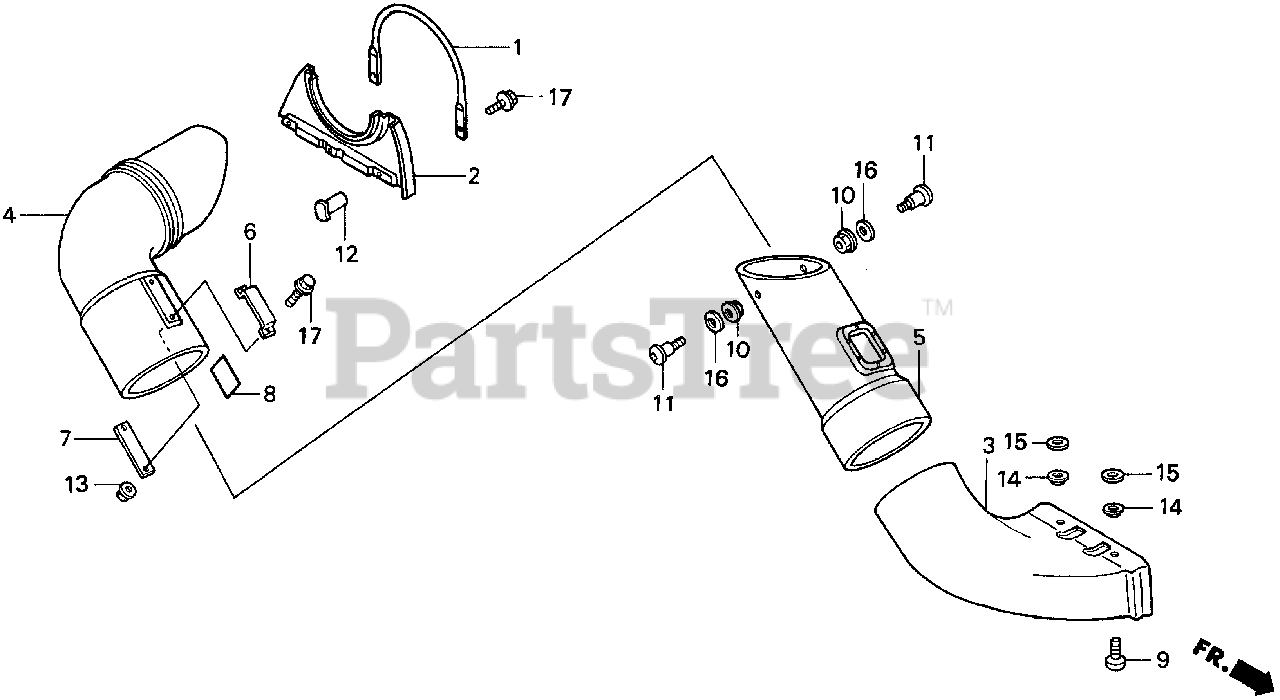

GRASS CATCHER (CHUTER) Parts Diagram

  • Title

1

Honda 82112-751-801

SUPPORT, CHUTE

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

2

Honda 82114-751-800

SEAL (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

3

Honda 82311-751-800

CHUTE (LOWER)

Note: (Optional).

$154.99

$

Usually ships in 3-6 days

0

4

Honda 82312-751-801

SEE PART DETAILS - PRI; CHUTE (UPPER)

Note: (Optional).

$87.99

$

Usually ships in 3-6 days

0

5

Honda 82315-751-801

SEE PART DETAILS - PRI; CHUTE, MIDDLE

Note: (Optional).

$

$

Not available

6

Honda 82317-751-800

HANDLE, CHUTE (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

7

Honda 82318-751-800

BASE, HANDLE

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

8

Honda 81228-758-S00

LABEL, CHUTE (ENGLISH)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

8

Honda 81228-758-P20

LABEL, CHUTE (ENGLISH)

Note: (Optional).

$

$

Not available

10

Honda 90301-763-U00

NUT, NYLON INSERT LOCK (8MM) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

11

Honda 90116-751-800

BOLT, CHUTE

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

12

Honda 90306-751-800

NUT, PIPE (6MM)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

14

Honda 90525-751-800

WASHER (8X24)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

16

Honda 94103-08000

WASHER, PLAIN (8MM)

Note: (Optional).

$0.99

$

In Stock, Qty 20+

0

17

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0
