GC3000 BA (RZBE) - Honda Grass Catcher, Made in USA (SN: RZBE-0000001 - RZBE-9999999) GRASS CATCHER (HOPPER) Parts Diagram

Grass Catcher, Made in USA

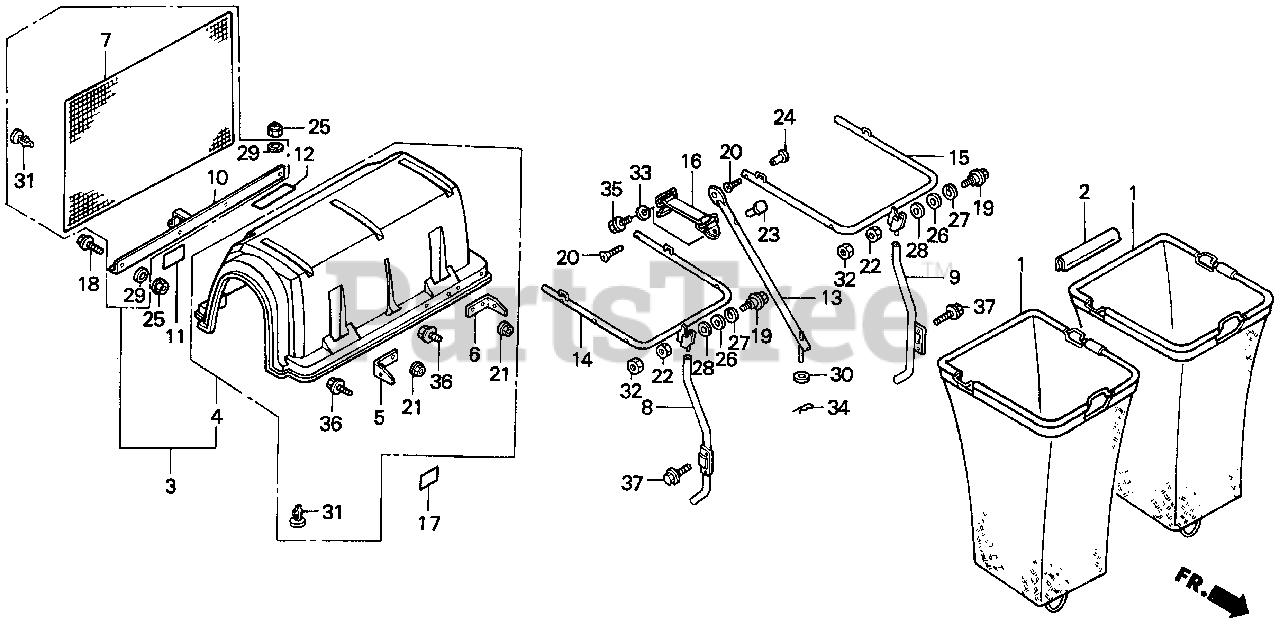

GRASS CATCHER (HOPPER) Parts Diagram

  • Title

1

Honda 81100-751-801

SEE PART DETAILS - SUP; BAG ASSY., GRASS
(Superseded to 81310-758-S00)

Note: (Optional).

$105.99

$

Usually ships in 3-6 days

0

1

Honda 81100-751-802

SEE PART DETAILS - SUP; BAG ASSY., GRASS (ENGLISH)
(Superseded to 81310-758-S00)

Note: (Optional).

$105.99

$

Usually ships in 3-6 days

0

1

Honda 81310-758-S00

SEE PART DETAILS - PRI; BAG, GRASS

Note: (Optional).

$105.99

$

Usually ships in 3-6 days

0

2

Honda 81342-751-800

CLIP, GRASS BAG TUBE (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

3

Honda 82000-751-800

HOPPER ASSY., TOP

Note: (Optional).

$

$

Not available

5

Honda 82117-751-800

HINGE, HOPPER TOP

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

6

Honda 82117-751-800

HINGE, HOPPER TOP

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

7

Honda 82118-751-800

SCREEN

Note: (Optional).

$73.99

$

Usually ships in 3-6 days

0

8

Honda 82119-751-800

POST, R. SUPPORT (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

9

Honda 82120-751-800

POST, L. SUPPORT

Note: (Optional).

$97.99

$

Usually ships in 3-6 days

0

10

Honda 82122-763-U00

STIFFENER, RR. (N/A: SEE ASSEMBLY)

Note: (Optional).

$

$

Currently unavailable

11

Honda 82126-758-S00

LABEL, HOPPER TOP (ENGLISH)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 82126-758-P20

LABEL, HOPPER TOP

Note: (Optional).

$

$

Not available

12

Honda 82145-758-S00

LABEL, HOPPER TOP ROOF (ENGLISH)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 82145-758-P20

LABEL, HOPPER TOP ROOF (ENGLISH)

Note: (Optional).

$

$

Not available

13

Honda 82222-751-800

BRACE, SUPPORT

Note: (Optional).

$56.99

$

Usually ships in 3-6 days

0

14

Honda 82305-751-800

STAY, R. SUPPORT (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

15

Honda 82306-751-800

STAY, L. SUPPORT

Note: (Optional).

$157.99

$

Usually ships in 3-6 days

0

16

Honda 82314-751-800

SEE PART DETAILS - PRI; BAND ASSY., HOPPER TOP

Note: (Optional).

$

$

Not available

19

Honda 90106-758-P00

SEE PART DETAILS - PRI; BOLT, HINGE (10MM)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

20

Honda 90126-KA4-000

SCREW, FLAT (8X45)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

21

Honda 94050-06070

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90304-GA6-003

NUT, AXLE (10MM)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90306-751-800

NUT, PIPE (6MM)

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

24

Honda 90307-751-800

NUT, PIPE (8MM)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

26

Honda 90417-HA0-000

WASHER, THRUST (14MM) (Honda Code 1824507).

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

27

Honda 90432-751-800

WASHER, SPRING (14MM)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

30

Honda 72998-5003

SEE PART DETAILS - PRI; WASHER (3/8")

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

31

Honda 90667-751-801

CLIP, SCREEN

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

33

Honda 94103-10000

WASHER, PLAIN (10MM)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

34

Honda 94252-10000

PIN, LOCK (10MM) Use from Frame SN 2149606 to 2149605.

Note: (Optional).

$1.49

$

In Stock, only 3 left!

0

35

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

Note: (Optional).

$1.99

$

In Stock, Qty 20+

0

36

Honda 95701-06018-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

37

Honda 95701-08020-07

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0
