GCV160 A N1AF (GJAEA) - Honda Engine, Made in USA (SN: GJAEA-1000001 - GJAEA-5386302) OIL PAN Parts Diagram

Engine, Made in USA

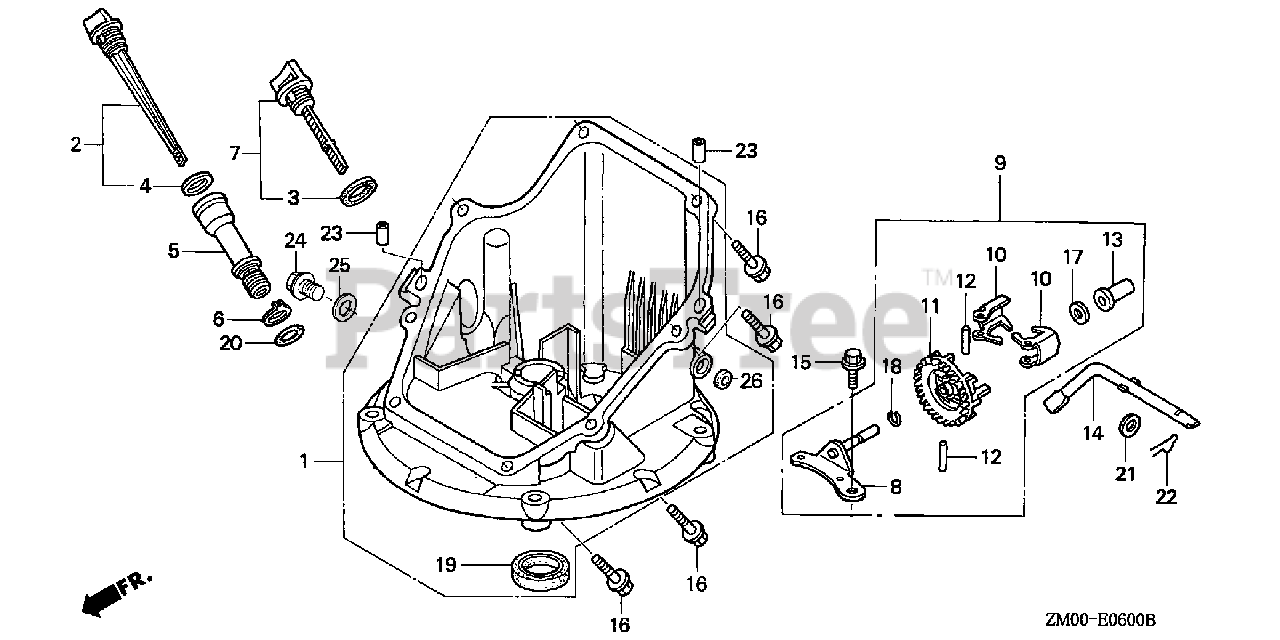

OIL PAN Parts Diagram

  • Title

1

Honda 11300-Z0L-821

PAN ASSY., OIL (SAE)

Note: (Honda Code 6719272).

$228.99

$

Usually ships in 3-6 days

0

3

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, Qty 12

0

7

Honda 15650-ZM0-003

DIPSTICK, OIL

Note: (Honda Code 5722996).

$4.99

$

In Stock, Qty 5

0

8

Honda 16508-ZM0-010

SHAFT, GOVERNOR HOLDER

Note: (Honda Code 6384341).

$6.99

$

Usually ships in 3-6 days

0

9

Honda 16510-ZM0-010

GOVERNOR ASSY.

Note: (Honda Code 6384333).

$21.99

$

Usually ships in 3-6 days

0

10

Honda 16511-ZL8-000

WEIGHT, GOVERNOR

Note: (Honda Code 5580287).

$1.99

$

In Stock, only 4 left!

0

11

Honda 16512-ZM0-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 5580295).

$12.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 1427244).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 16531-ZE1-000

SLIDER, GOVERNOR

Note: (Honda Code 1427251).

$2.49

$

In Stock, only 1 left!

0

14

Honda 16541-ZM0-000

SHAFT, GOVERNOR ARM

Note: (Honda Code 5580303).

$4.49

$

In Stock, only 4 left!

0

15

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$2.99

$

In Stock, Qty 8

0

16

Honda 90121-952-000

BOLT, FLANGE (6X25)

Note: (Honda Code 0748111).

$2.99

$

In Stock, Qty 17

0

17

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

Note: (Honda Code 2413862).

$1.99

$

In Stock, Qty 9

0

18

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, Qty 13

0

19

Honda 91202-ZM0-V31

OIL SEAL (28X41.25X6)

Note: (Honda Code 6315865).

$7.99

$

In Stock, Qty 11

0

21

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

22

Honda 94251-08000

PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.49

$

In Stock, Qty 20+

0

23

Honda 94301-08200

PIN, DOWEL (8X20)

Note: (Honda Code 1417369).

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90131-896-650

BOLT, DRAIN PLUG

Note: (Honda Code 1986231).

$4.99

$

In Stock, Qty 11

0

25

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

Note: (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0
