GCV160 A S3A (GJAEA) - Honda Engine, Made in USA (SN: GJAEA-1000001 - GJAEA-5386302) CARBURETOR Parts Diagram

Engine, Made in USA

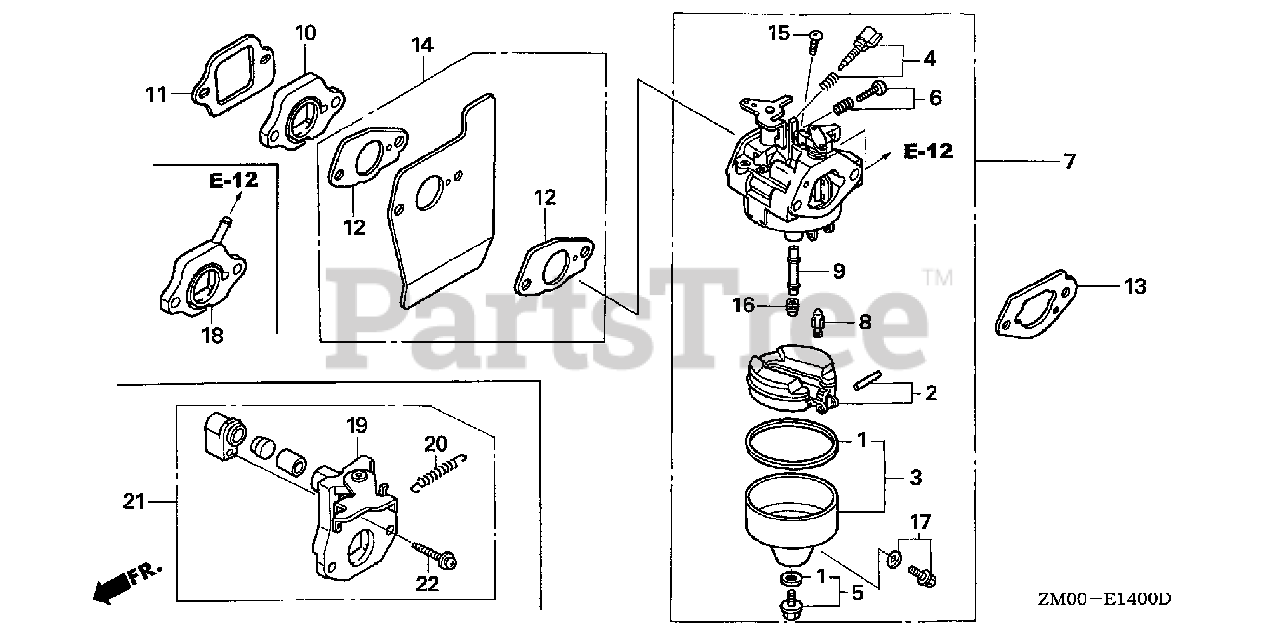

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET (Honda Code 3088416).

$12.99

$

In Stock, Qty 20+

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$29.99

$

Usually ships in 3-6 days

0

3

Honda 16015-887-782

CHAMBER SET, FLOAT (Honda Code 3465879). (CARBURETOR NO.)

$30.99

$

Usually ships in 3-6 days

0

5

Honda 16028-ZE0-005

SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$12.99

$

Usually ships in 3-6 days

0

7

Honda 16100-Z0L-801

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB62G A) (Honda Code 7301138).

Note: Use up to Engine SN 3172195.

$

$

Currently unavailable

7

Honda 16100-Z0L-802

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB62G B) (Honda Code 7866064).
(Superseded to 16100-Z0L-853)

$20.99

$

In Stock, Qty 20+

0

8

Honda 16155-ZM0-003

VALVE, FLOAT (Honda Code 5580212). (CARBURETOR NO.)

Note: Use up to Engine SN BB62G A.

$27.99

$

In Stock, only 1 left!

0

8

Honda 16155-ZM0-013

VALVE, FLOAT (Honda Code 7934714). (CARBURETOR NO.)

Note: Use from Engine SN BB62G B.

$24.99

$

In Stock, only 1 left!

0

9

Honda 16166-ZM0-003

NOZZLE, MAIN (Honda Code 5580220).

$20.99

$

Usually ships in 3-6 days

0

10

Honda 16211-ZL8-000

INSULATOR, CARBURETOR (Honda Code 5580238).

$3.99

$

In Stock, Qty 20+

0

11

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.49

$

In Stock, Qty 20+

0

12

Honda 16221-883-800

GASKET, CARBURETOR (Honda Code 4581120).

$2.49

$

In Stock, Qty 20+

0

13

Honda 16228-ZL8-000

GASKET, CARBURETOR (Honda Code 5580253). (CHOKE SIDE)

$2.49

$

In Stock, Qty 20+

0

14

Honda 19650-ZM0-000

GUIDE, AIR (Honda Code 5580535).

$8.49

$

In Stock, Qty 20+

0

15

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, Qty 10

0

16

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474). (CARBURETOR NO.)

Note: (Optional).

$11.99

$

In Stock, Qty 7

0

16

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional).

$10.99

$

In Stock, only 1 left!

0

16

Honda 99101-124-0650

JET, MAIN (#65) (Honda Code 0636126).

$11.99

$

Usually ships in 3-6 days

0

17

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$9.99

$

In Stock, only 4 left!

0
