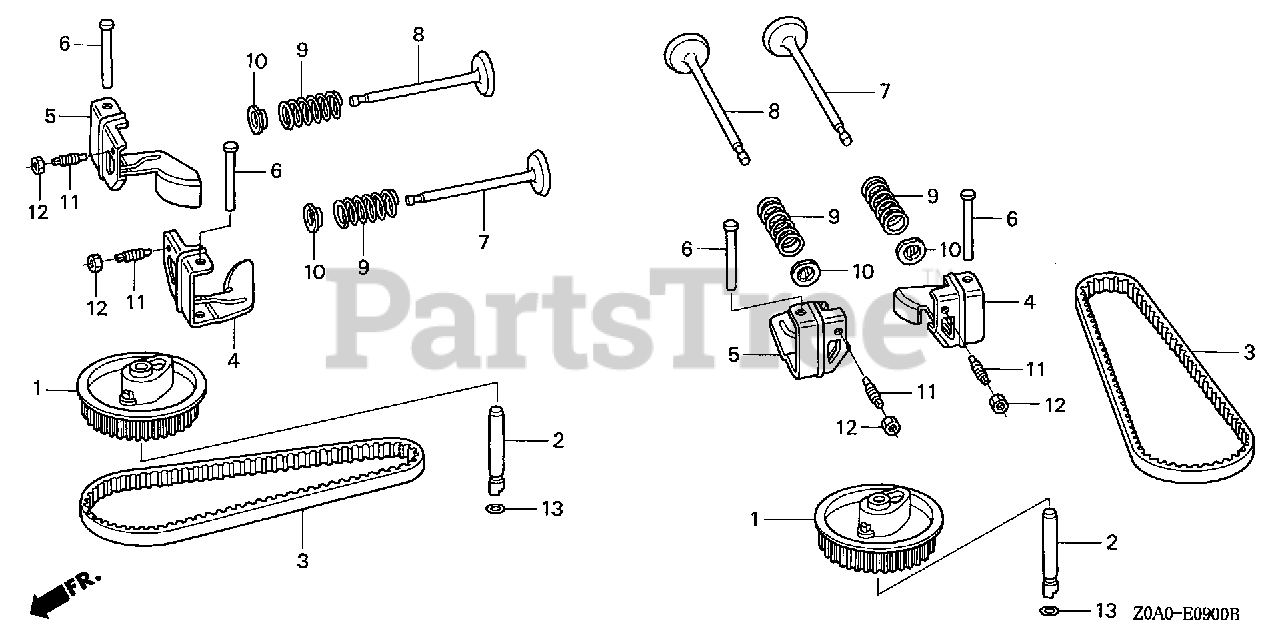

GCV530 QEA1/A (GJAJM) - Honda Engine, Made in Japan (SN: GJAJM-1050001 - GJAJM-1051339) CAMSHAFT Parts Diagram

Engine, Made in Japan

CAMSHAFT Parts Diagram

  • Title

1

Honda 14320-Z0A-000

PULLEY, CAMSHAFT

$32.99

$

In Stock, only 1 left!

0

2

Honda 14324-ZL8-000

SHAFT, CAM PULLEY (Honda Code 5580063).

$4.99

$

In Stock, only 1 left!

0

3

Honda 14400-Z0A-003

BELT, TIMING (97HU8 G-200)

$34.99

$

Usually ships in 3-6 days

0

4

Honda 14431-Z0A-000

ARM, IN. VALVE ROCKER

$12.99

$

In Stock, only 1 left!

0

5

Honda 14441-Z0A-000

ARM, EX. VALVE ROCKER

$15.99

$

In Stock, only 1 left!

0

6

Honda 14461-Z0A-000

SHAFT, ROCKER ARM

$3.99

$

Usually ships in 3-6 days

0

7

Honda 14711-Z0A-000

VALVE, IN.

$21.99

$

Usually ships in 3-6 days

0

8

Honda 14721-Z0A-000

VALVE, EX.

$31.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZE1-000

SPRING, VALVE (Honda Code 1426972).

$3.49

$

In Stock, only 3 left!

0

10

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 20+

0

10

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 20+

0

11

Honda 90012-333-000

SCREW, TAPPET ADJ. (Honda Code 0294819).

$3.49

$

In Stock, Qty 13

0

12

Honda 90206-001-000

NUT, TAPPET ADJ. (Honda Code 0004598).

$1.99

$

In Stock, Qty 20+

0

13

Honda 91301-ZM0-V31

SEE PART DETAILS - PRI; O-RING (6.8X1.9) (ARAI)

$2.99

$

In Stock, Qty 20+

0
