GCV530 QRA4 (GJAMM) - Honda Engine, Made in Japan (SN: GJAMM-1000001 - GJAMM-9999999) MUFFLER Parts Diagram

Engine, Made in Japan

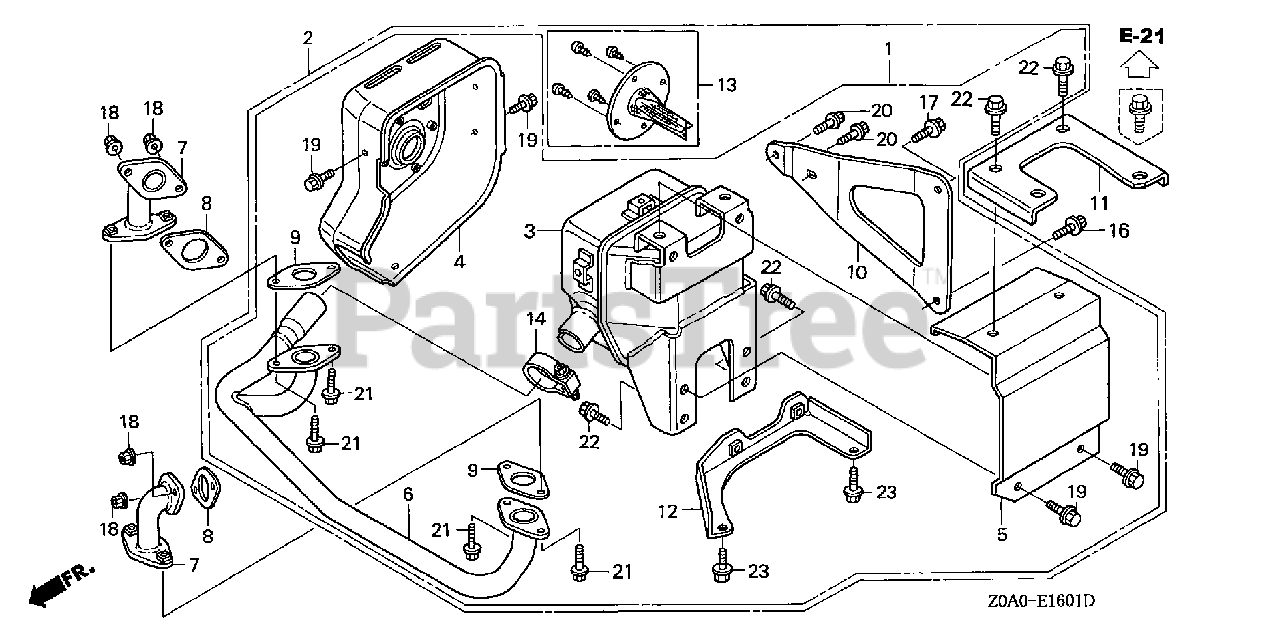

MUFFLER Parts Diagram

  • Title

1

Honda 06183-Z0A-800

MUFFLER KIT (A)

$

$

Currently unavailable

2

Honda 06183-Z0A-810

MUFFLER KIT (B)

$1354.99

$

Usually ships in 3-6 days

0

3

Honda 18310-Z0A-801

MUFFLER

$419.99

$

Usually ships in 3-6 days

0

4

Honda 18321-ZJ1-841

PROTECTOR, MUFFLER (SIDE-L)

$67.99

$

Usually ships in 3-6 days

0

5

Honda 18325-Z0A-800

PROTECTOR, RR. MUFFLER

$56.99

$

Usually ships in 3-6 days

0

6

Honda 18330-Z0A-801

PIPE, EX.

$292.99

$

Usually ships in 3-6 days

0

7

Honda 18331-Z0A-800

PIPE, EX. (FLANGE)

$44.99

$

Usually ships in 3-6 days

0

8

Honda 18333-Z0A-000

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z0A-010)

$4.99

$

In Stock, only 4 left!

0

9

Honda 18333-Z0A-000

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z0A-010)

$4.99

$

In Stock, only 4 left!

0

10

Honda 18337-Z0A-800

BRACKET, MUFFLER

$52.99

$

Usually ships in 3-6 days

0

11

Honda 18338-Z0A-800

BRACKET, MUFFLER (UPPER)

$20.99

$

Usually ships in 3-6 days

0

12

Honda 18339-Z0A-801

BRACKET, MUFFLER (LOWER)

$172.99

$

Usually ships in 3-6 days

0

13

Honda 18355-ZJ1-801

ARRESTER, SPARK

$53.99

$

Usually ships in 3-6 days

0

14

Honda 18396-ZJ1-003

SEE PART DETAILS - SUP; BAND ASSY.

$

$

Not available

16

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, Qty 6

0

17

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 6

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 4 left!

0

20

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

23

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0
