GCZ-5 (HD-5) - Scag Hard Cover Grass Catcher HARD COVER GRASS CATCHER Parts Diagram

Hard Cover Grass Catcher

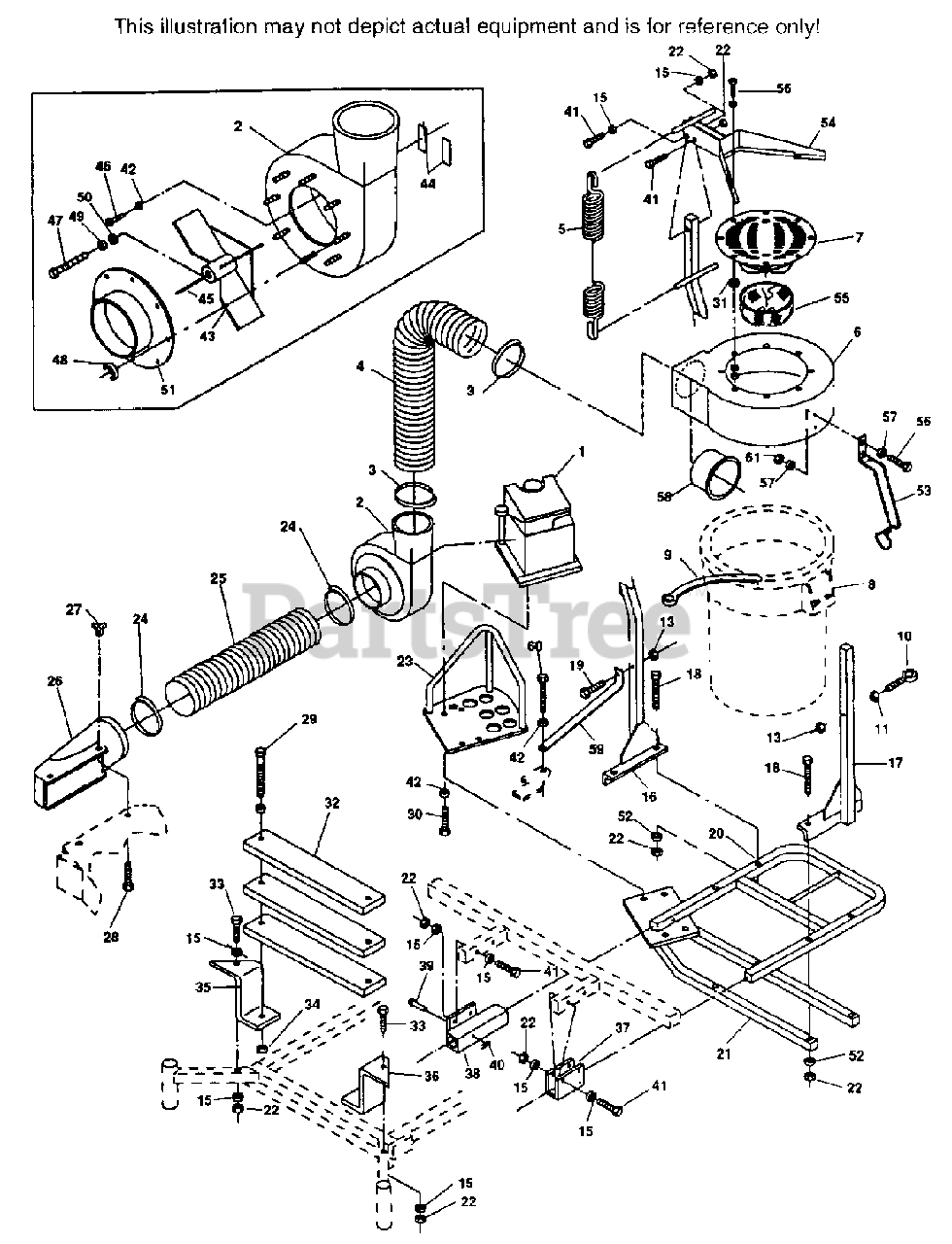

HARD COVER GRASS CATCHER Parts Diagram

  • Title

1

Scag 48660

KOHLER ENGINE 5HP

$

$

Not available

2

Scag 45080

BLOWER HOUSING

$486.99

$

Usually ships in 2-12 days

0

3

Scag 48136-01

HOSE CLAMP 6"

$30.99

$

Usually ships in 2-12 days

0

4

Scag 48135-04

HOSE 6"ID X 34" LONG

$107.99

$

In Stock, only 1 left!

0

5

Scag 48734

SPRING

$

$

Not available

6

Scag 48735

MOLDED TOP
(Superseded to 481745)

$

$

Not available

7

Scag 48739

FILTER SUPPORT

$142.99

$

Usually ships in 2-12 days

0

8

Scag 48663

BUCKET

$

$

Not available

9

Scag 48137

RUBBER STRAP
(Superseded to 48137-01)

$12.99

$

Usually ships in 2-12 days

0

10

Scag 04070-04

EYEBOLT, 5/16-18 X 2-3/4"

$

$

Currently unavailable

11

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?12

FLAT WASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

13

ELASTIC STOP NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

?14

HEX HEAD BOLT, 3/8-16 X 2-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

15

Scag 04041-07

FLAT WASHER, 3/8"(.938 X .391 X 12 GA.)

$0.99

$

In Stock, Qty 20+

0

16

Scag 45428

UPRIGHT POST - RH

$

$

Not available

17

Scag 45372

UPRIGHT POST - LH

$

$

Not available

18

HEX HEAD BOLT, 3/8-16 X 3-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

19

HEX HEAD BOLT, 5/16-18 X 2-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

Scag 45370

CATCHER, BARREL SUPPORT FRAME

$

$

Not available

21

Scag 45371

ENGINE MOUNTING FRAME

$

$

Not available

22

ELASTIC STOP NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

23

Scag 45374

ENGINE GUARD

$

$

Not available

24

Scag 48136-02

HOSE CLAMP 8"

$10.99

$

In Stock, only 2 left!

0

25

Scag 48135-05

HOSE 8"ID X 37" LONG

$126.99

$

Usually ships in 2-12 days

0

26

Scag 48132

BOOT
(Superseded to 481734)

$212.99

$

In Stock, only 1 left!

0

27

Scag 04022-04

ELASTIC WING NUT, 3/8-16
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

28

HEX HEAD BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

29

HEX HEAD BOLT, 1/2-13 X 4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

HEX HEAD BOLT, 5/16-18 X 1-3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

31

Scag 43063

SPACER

$9.99

$

Usually ships in 2-12 days

0

32

Scag 42956

WEIGHT BAR

$

$

Not available

33

HEX HEAD BOLT, 3/8-16 X 3"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

34

ELASTIC STOP NUT, 1/2-13

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

35

Scag 42957

WEIGHT BAR MOUNTING BRACKET, RH

$

$

Not available

36

Scag 42958

WEIGHT BAR MOUNTING BRACKET, LH

$

$

Not available

37

Scag 42959

CATCHER SUPPORT, L.H.

$

$

Not available

38

Scag 45375

CATCHER SUPPORT, R.H.

$

$

Not available

39

Scag 04064-03

CLEVIS PIN

$2.99

$

In Stock, only 2 left!

0

40

Scag 04062-02

HAIR PIN

$0.99

$

In Stock, Qty 20+

0

41

HEX HEAD BOLT, 3/8-16 X 2-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

42

LOCK WASHER, 5/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

43

Scag 45077

FAN

$542.99

$

Usually ships in 2-12 days

0

44

Scag 42960

SPACER

$

$

Not available

45

Scag 04063-06

KEY, 1/4 X 1/4 X 1-1/2"

$1.49

$

In Stock, Qty 9

0

46

HEX HEAD BOLT, 5/16-24 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

47

HEX HEAD BOLT, 7/16-20 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

48

Scag 04022-02

ELASTIC WING NUTS, 5/16-18

$8.49

$

Usually ships in 2-12 days

0

49

LOCKWASHER, 7/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

50

FLAT WASHER, 7/16"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

51

Scag 45081

INLET ADAPTER

$

$

Not available

52

Scag 04041-11

WASHER, 3/8(1.5 X .406 X 7 GA.)

$1.99

$

In Stock, Qty 20+

0

53

Scag 48737

CONTAINER LATCH

$96.99

$

Usually ships in 2-12 days

0

54

Scag 45429

COVER BRACKET WELDMENT

$445.99

$

Usually ships in 2-12 days

0

55

Scag 48738

MESH FILTER

$40.99

$

Usually ships in 2-12 days

0

56

HEX HEAD BOLT, 1/4-20 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

57

FLAT WASHER, 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

58

Scag 48736

INTAKE NOZZLE

$

$

Not available

59

Scag 421130

BRACE

$

$

Not available

60

HEX HEAD BOLT, 5/16-18 X 1-1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

61

ELASTIC STOP HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available
